StarTech 4Port Dual Profile PCI Express RS232 RS422 RS485 Serial Card
StarTech 4Port Dual Profile PCI Express RS232 RS422 RS485 Serial Card
Description
StarTech 4Port Dual Profile PCI Express RS232 RS422 RS485 Serial Card
RS232 data transfer rates up to 460 Kbps
Supports 2-Wire / 4-Wire RS485 modes
256-byte deep FIFO per transmitter and receiver
Standard and low-profile bracket included
Compliant with PCI-Express Specification 1.0a
Supports PCI Power Management 1.1
PEX4S232485
Limited Lifetime Product Warranty
RS232 data transfer rates up to 460 Kbps
Supports 2-Wire / 4-Wire RS485 modes
256-byte deep FIFO per transmitter and receiver
Standard and low-profile bracket included
Compliant with PCI-Express Specification 1.0a
Supports PCI Power Management 1.1
PEX4S232485
Limited Lifetime Product Warranty
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
$256.95
Sale price
$256.95
BANK TRANSFER (EFT)
$256.95
Sale price
$256.95
Accepted payment methods
Description
StarTech 4Port Dual Profile PCI Express RS232 RS422 RS485 Serial Card
RS232 data transfer rates up to 460 Kbps
Supports 2-Wire / 4-Wire RS485 modes
256-byte deep FIFO per transmitter and receiver
Standard and low-profile bracket included
Compliant with PCI-Express Specification 1.0a
Supports PCI Power Management 1.1
PEX4S232485
Limited Lifetime Product Warranty
View Full Details
RS232 data transfer rates up to 460 Kbps
Supports 2-Wire / 4-Wire RS485 modes
256-byte deep FIFO per transmitter and receiver
Standard and low-profile bracket included
Compliant with PCI-Express Specification 1.0a
Supports PCI Power Management 1.1
PEX4S232485
Limited Lifetime Product Warranty
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more

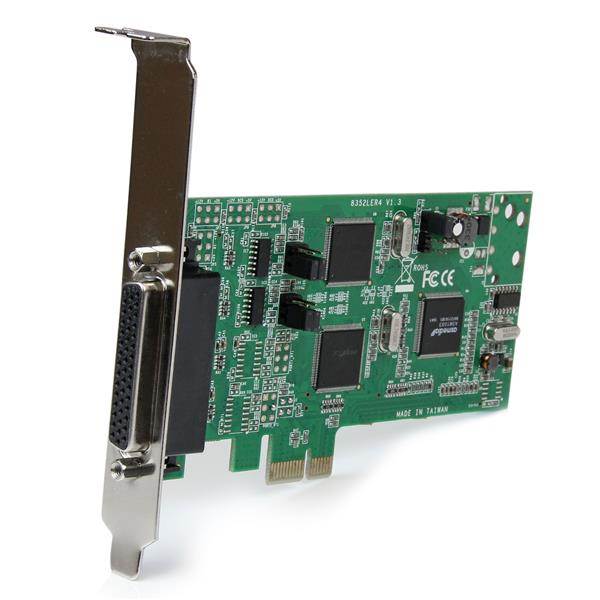

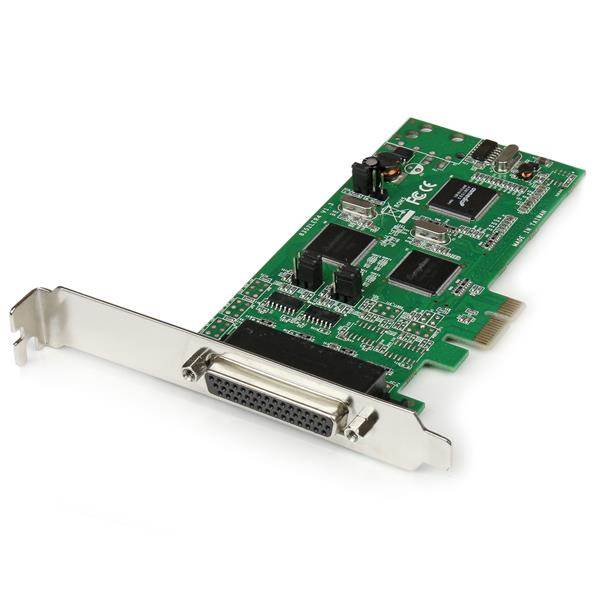

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.
This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.

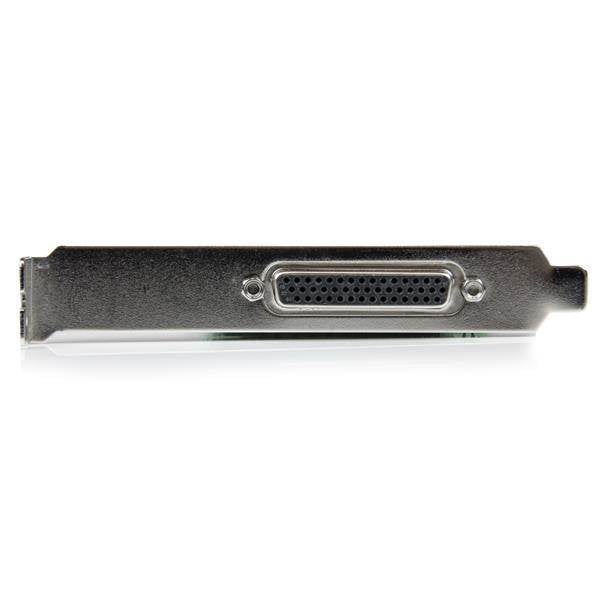

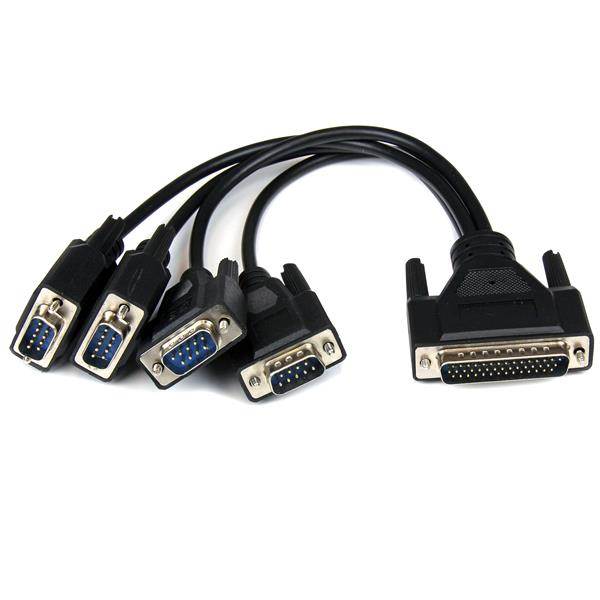

A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
| Performance | |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 256 Bytes |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Max Baud Rate | 460.8 Kbps |
| Parity | None, Odd, Even, Space, Mark |
| Serial Protocol | RS-232/422/485 |
| Stop Bits | 1, 1.5, 2 |
| Supported Protocols | RS-232, RS-422, RS-485 2-wire / 4-wire |
| Physical Characteristics | |
| Product Height | 69 mm [2.7 in] |
| Product Length | 134 mm [5.3 in] |
| Product Weight | 67.4 g [2.4 oz] |
| Product Width | 14 mm [0.6 in] |
| Software | |
| OS Compatibility | Windows® 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2016 |
| Special Notes / Requirements | |
| System and Cable Requirements | Available PCI Express slot |

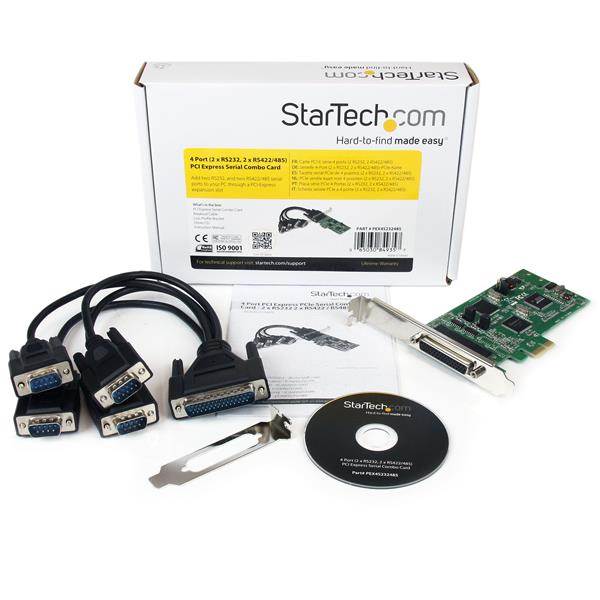

| What's in the Box | |
| Included in Package | Breakout Cable |
| Driver CD | |
| Packaging Information | |
| Shipping (Package) Weight | 390 g [13.8 oz] |
| Hardware | |
| Ports | 4 |
| Port Style | Dongle (Included) |
| Interface | Serial |
| Chipset ID | SystemBase - SB16C1052PCI |
| Card Type | Standard Profile (LP bracket incl.) |
| Bus Type | PCI Express |
| Environmental | |
| Storage Temperature | 0°C to 150°C (32°F to 302°F) |
| Operating Temperature | 0°C to 100°C (32°F to 212°F) |
| Humidity | 20~80% RH |
| Connector(s) | |
| External Ports | DB-9 (9 pin, D-Sub) Male |
| Connector Type(s) | PCI Express x1 Male |
| What's in the Box | |
| Included in Package | Instruction Manual |
| Low Profile Bracket | |
| PCI Express Serial Combo Card | |
