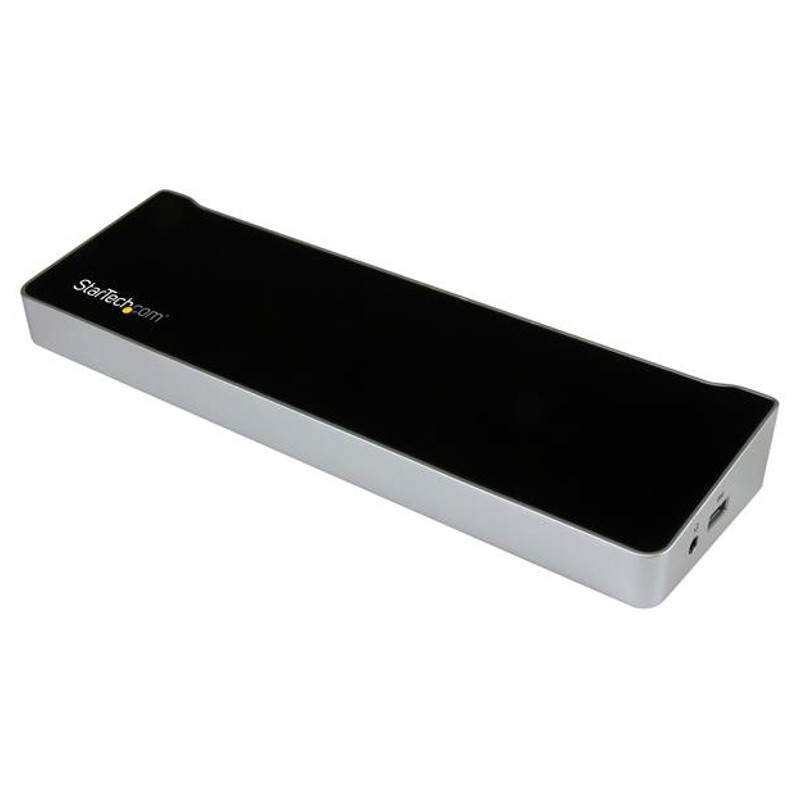

This TAA compliant 4K USB-C™ dock for Windows® laptops takes productivity to a whole new level, with support for triple 4K monitors - a first in the market. The USB Type-C dock provides 60W charging power, and 5x USB 3.0 ports to connect your peripheral devices. It’s the perfect accessory for your Dell™ XPS 15, Chromebook Pixel™, or another USB-C enabled PC laptop.

The dock also connects to USB 3.0 laptops with a USB-A port (using a USB-C to A cable such as the USB315AC1M, sold separately).

Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.

Enhance Productivity

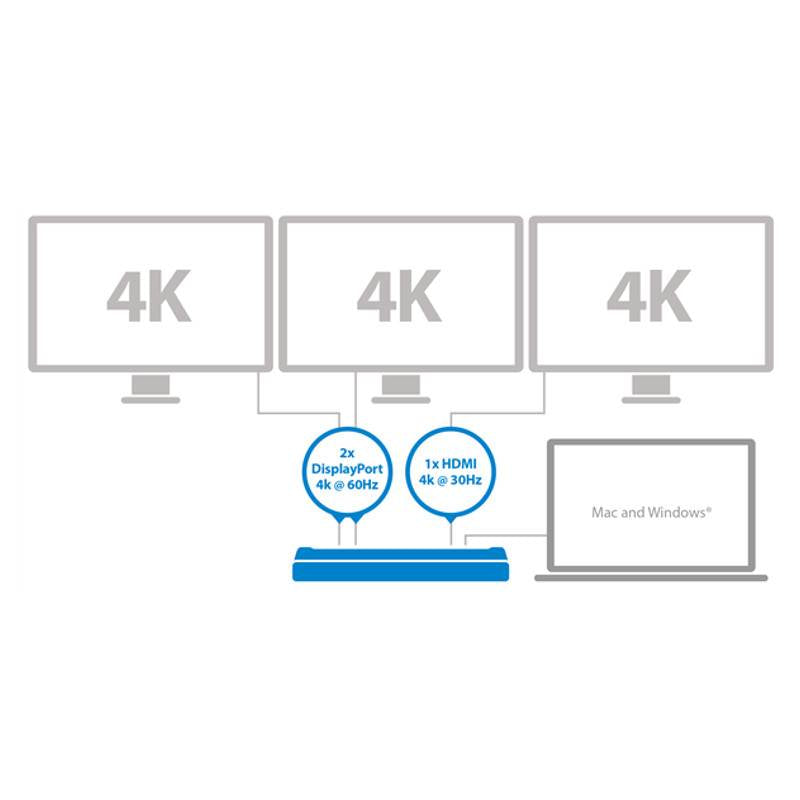

The 4K USB-C Dock for Windows lets you create a three-monitor Ultra HD workstation. Connect:

2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution / 3840 x 2160 @ 60Hz and
1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz

For high-resolution applications, the universal laptop docking station can also connect to a 5K display (5120 x 2880 resolution) at 60Hz, by connecting the two DisplayPort ports to a single 5K display.

Powerful Connections

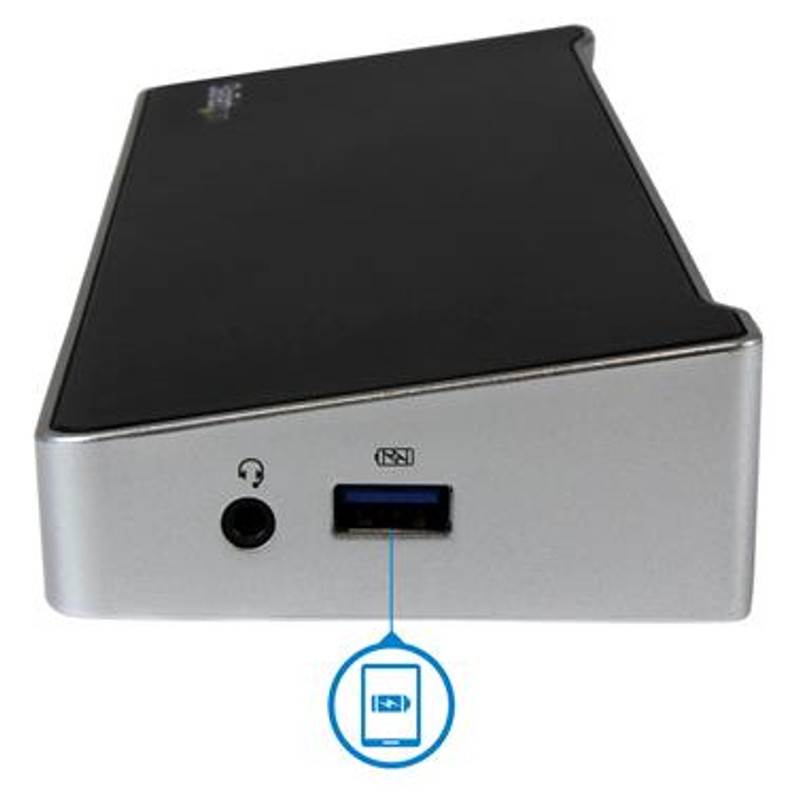

This triple-monitor docking station lets you connect your peripherals to transform your laptop into a full-sized workstation. With five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl 1x Fast-Charge port), a Gigabit Ethernet port, headset jack and separate 3.5 mm audio and microphone ports, you have all the connections you need for maximum performance.

60W Power Delivery

Using a single cable, the USB-C docking station with Power Delivery (up to 60W) will power and charge your laptop, and power your peripherals with its 120W power adapter.

The DK30CH2DPPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Connector(s)
Connector Type(s)	3.5 mm Mini-Jack (3 Position) Female
	3.5 mm Mini-Jack (4 Position) Female
	DisplayPort (20 pin) Female
	HDMI (19 pin) Female
	RJ-45 Female
	Security Lock Slot Female
	USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female
	USB Type-A (9 pin) USB 3.0 Female
	USB Type-C (24 pin) USB 3.0 Female
Environmental
Humidity	0~95% RH
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Hardware
4K Support	Yes
Bus Type	USB-C
Chipset ID	DisplayLink - DL-6950 Genesys Logic - GL3523 Texas Instruments - TPS65982
Displays Supported	3
Fast-Charge Port(s)	Yes
Industry Standards	USB Power Delivery Specification Rev. 2.0 USB Battery Charging Specification Rev. 1.2 DisplayPort 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1
Packaging Information
Shipping (Package) Weight	1396 g [49.3 oz]
Performance
Auto MDIX	Yes
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
Maximum Data Transfer Rate	5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions	1x HDMI (DP Alt Mode) - 4096 x 2160p @24Hz / 3840 x 2160p @30Hz 2x DisplayPort (DisplayLink) - 4096 x 2160p @60Hz / 3840 x 2160p @60Hz 1x 5K DisplayPort using 2 DP video ports - 5120 x 2880 @60Hz Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Type and Rate	USB 3.0 - 5 Gbit/s
UASP Support	Yes
Physical Characteristics
Color	Black & Silver
Enclosure Type	Plastic
Product Height	34 mm [1.3 in]
Product Length	270 mm [10.6 in]
Product Weight	385 g [13.6 oz]
Product Width	82 mm [3.2 in]
Power
Center Tip Polarity	Positive
Input Current	2 A
Input Voltage	100 ~ 240 AC
Output Current	6 A
Output Voltage	20V DC
Plug Type	N
Power Delivery	60W
Power Source	AC Adapter Included
Prominence
Description CDW 75 - 1st Line	StarTech.com 4K USB-C Dock - Triple Monitor - Windows - 60W Power Delivery
Software
OS Compatibility	Windows® 7, 8, 8.1, 10 Mac OS® 10.11 to 10.13.3 Chrome OS™
Special Notes / Requirements
Note	4K resolution is supported on all 3 video ports. A 4K-capable DisplayPort display is required to achieve 4Kx2K resolutions
	5K resolution is supported by connecting the two DisplayPort video ports to a single 5K display. A 5K-capable display is required to achieve 5K (5120 x 2880 60Hz) resolutions
	Extended displays are currently only supported with DisplayLink-based products on macOS 10.11 to 10.13.3. This may change in future versions.
	If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included)
	Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.
	The dock connects to the USB-C port on your laptop. The dock can also be connected to the USB-A port on laptops using a USB-C to A cable, sold separately, but only dual display is supported, and Power Delivery to charge your laptop is not available through USB-A
	USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
System and Cable Requirements	USB-C enabled computer with an available USB Type-C port
What's in the Box
Included in Package	docking station
	instruction manual
	universal power adapter (NA/JP, ANZ)
	USB-C cable

Also connects to USB 3.0 laptops with a USB-A port using a USB-C to A cable (sold separately)
Connect USB devices with 5 x USB 3.0 ports (1xC/4xA)
Reliable GbE port
This TAA compliant triple 4K USB C Dock for Mac and Windows connects your USB-C laptop to triple 4K monitors: 2x DisplayPort (DisplayLink) 1x HDMI (DP Alt Mode))
Triple 4K monitor USB Type C dock for Dell XPS and other USBC laptops
Triple monitor docking station w/ 60W Power Delivery
