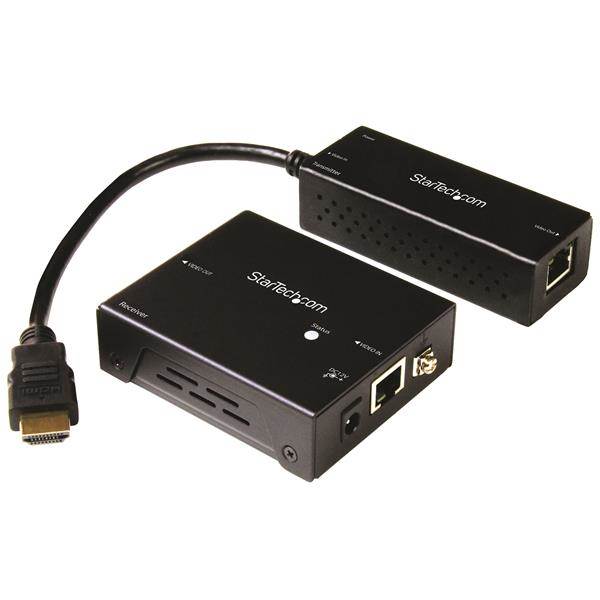

This 4K HDMI extender uses HDBaseT to transmit your HDMI A/V signal to a remote location up to 70 m (230 ft.) away.

Easy and Discreet Installation

The transmitter in this HDMI HDBaseT extender kit features a small footprint and built-in HDMI cable that connects directly to your source for reduced clutter. It’s powered from a USB port on your source device, which makes it easier to install in areas where power outlets may be limited. Mounting hardware is included for the receiver for a discreet, professional installation.

Get 4K Video at 130 ft. (70 m)

This HDMI over CAT6 extender maintains your UHD 4K picture quality, even at 130 feet away from your video source. Because the extender is backward compatible with 1080p and lower resolutions at 230 feet away, you can comfortably use this extender to make any video source look great. The extender also supports 7.1 audio to ensure all audio channels are captured.

Seamless Integration with Your Existing Infrastructure

The kit extends HDMI over a single cable, unlike some HDMI extenders that require two cables, reducing potential failure points and lowering your cabling costs. Ideal for digital signage, the HDMI over CAT6 extender uses standard CAT5e, CAT6 or CAT7 cables to extend HDMI video over the Ethernet infrastructure that's already in your building.

The ST121HDBTDK is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Environmental
Storage Temperature	-10°C to 60°C (14°F to 140°F)
Hardware
Audio	Yes
Cabling	Cat 5e UTP or better
Daisy-Chain	No
Ports	1
Rack-Mountable	Yes
Indicators
LED Indicators	Status LED (receiver)
Packaging Information
Shipping (Package) Weight	1600 g [56.5 oz]
Performance
Audio Specifications	7.1 Surround Sound
Max Distance	70 m / 230 ft
Maximum Cable Length	0.1 m [0.2 ft]
Maximum Digital Resolutions	4096 x 2160 (4K) @ 30 Hz
Wide Screen Supported	Yes
Physical Characteristics
Product Height	25 mm [1 in]
Product Length	80 mm [3.1 in]
Product Weight	252 g [8.9 oz]
Product Width	68 mm [2.7 in]
Power
Center Tip Polarity	Positive
Input Current	0.6 A
Input Voltage	100 ~ 240 AC
Output Current	1.5 A
Output Voltage	12 DC
Plug Type	M
Power Consumption (In Watts)	18
Power Source	AC Adapter Included
Prominence
Description CDW 75 - 1st Line	StarTech.com 4K HDMI Extender with Compact Transmitter - HDBaseT - UHD 4K

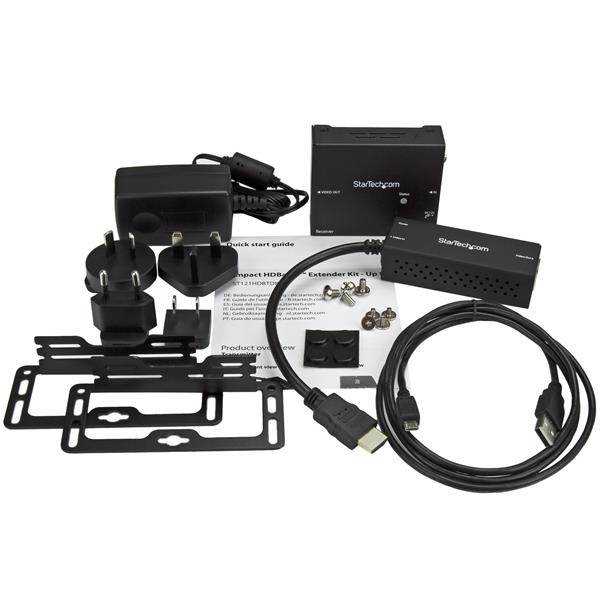

What's in the Box
Included in Package	footpad set (receiver)

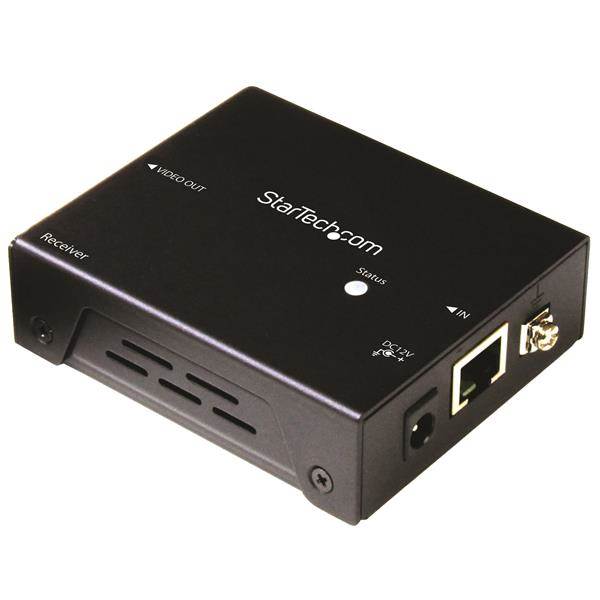

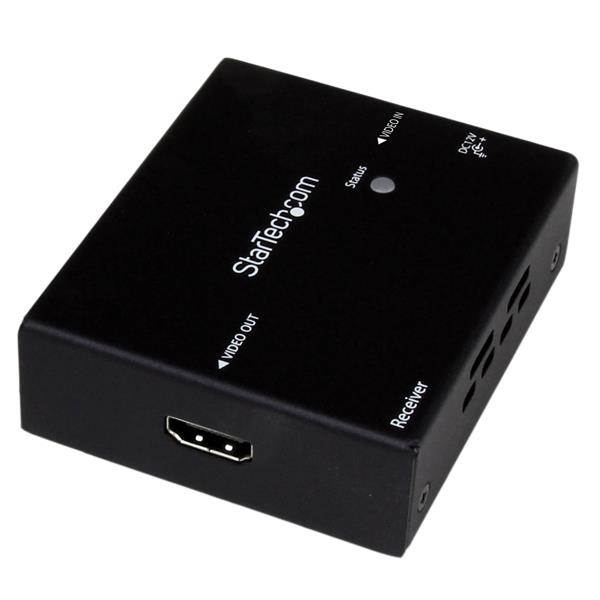

	HDBaseT receiver

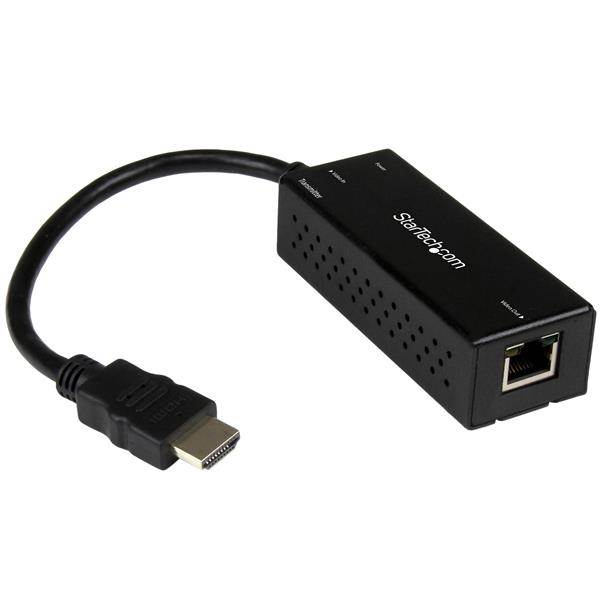

	HDBaseT transmitter
	mounting kit (receiver)
	quick start guide
	screw kit for mounting
	universal power adapter (receiver) (NA, EU, UK, ANZ)
Environmental
Operating Temperature	0°C to 40°C (32°F to 104°F)
Humidity	0% - 80 % RH (non-condensing)
Connector(s)
Remote Unit Connectors	RJ-45 Female Input
	HDMI (19 pin) Female Output
Local Unit Connectors	RJ-45 Female Output
	HDMI (19 pin) Female Latching Input
Connector B	RJ-45 Female Input
	HDMI (19 pin) Female Output
Connector A	RJ-45 Female Output
	HDMI (19 pin) Female Input
AV Output	HDMI
AV Input	HDMI
What's in the Box
Included in Package	USB power cable (transmitter) (1310 mm)

4K HDMI CAT 7 extender supports 7.1 surround sound to create an immersive A/V experience
Get astonishing picture quality with an HDMI over CAT 6 extender that supports 4K
HDBaseT extender kit over CAT 5 transmitter is USB powered and features a built-in HDMI cable reducing clutter
HDMI Over CAT5 / CAT6 / CAT7 extender installs easily and discreetly
HDMI over CAT5 extender transmits HDMI video over existing Ethernet infrastructure up to 70 m / 230 ft
