StarTech 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART
View Full Details
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more

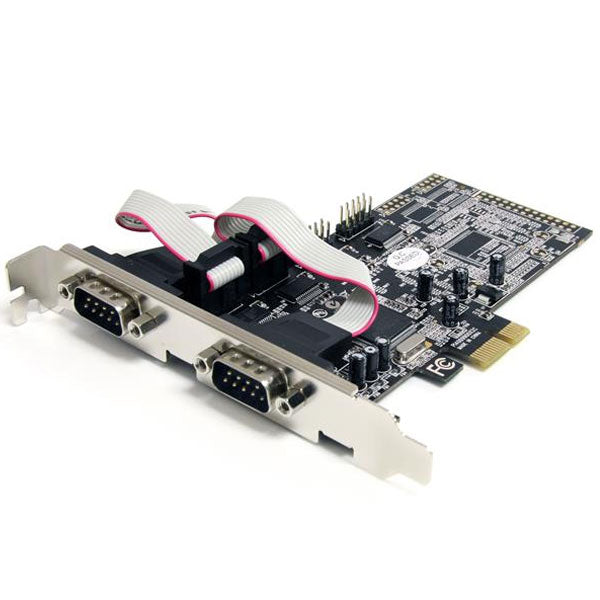

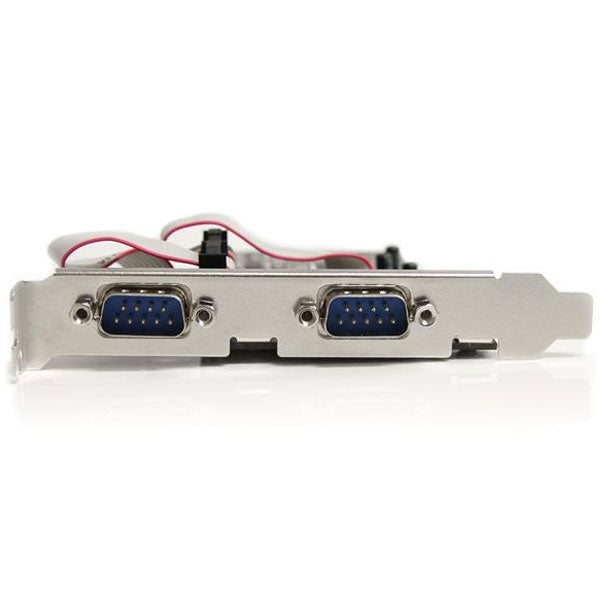

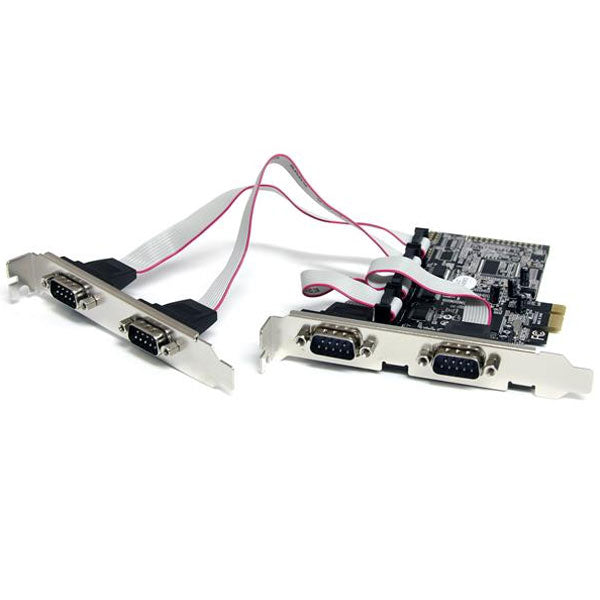

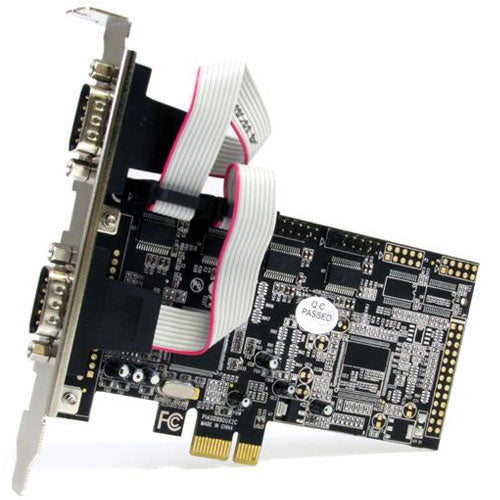

The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot.
Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards.
The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
| Performance | |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 256 bytes |
| Max Baud Rate | 128 Kbps |
| MTBF | 26,280 Hours |
| Parity | 5, 6, 7, 8 |
| Serial Protocol | RS-232 |
| Physical Characteristics | |
| Color | Green |
| Product Height | 19 mm [0.7 in] |
| Product Length | 120 mm [4.7 in] |
| Product Weight | 80 g [2.8 oz] |
| Product Width | 130 mm [5.1 in] |
| Software | |
| Microsoft WHQL Certified | Yes |
| OS Compatibility | Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS® 10.4 to 10.10 Linux 3.5.x to 4.11.x LTS Versions Only |

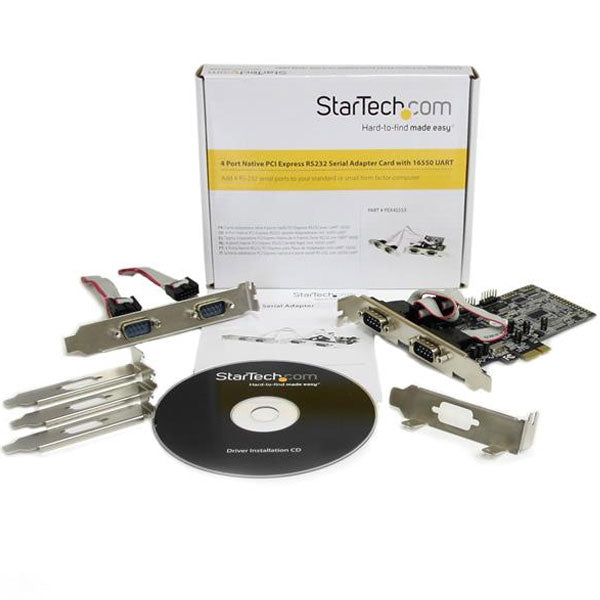

| What's in the Box | |
| Included in Package | 4 Port PCI-Express RS-232 Serial Card |
| Bracket with 2 DB9 male ports | |
| Driver CD | |
| Instruction Manual | |
| Low Profile Brackets | |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.5 lb] |
| Hardware | |
| Ports | 4 |
| Port Style | Integrated on Card |
| Interface | Serial |
| Chipset ID | ASIX - MCS9904CV-AA |
| Card Type | Standard Profile (LP bracket incl.) |
| Bus Type | PCI Express |
| Environmental | |
| Storage Temperature | -20°C to 60°C (4°F to 140°F) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Humidity | 5~85% RH |
| Connector(s) | |
| External Ports | DB-9 (9 pin, D-Sub) Male |
| Connector Type(s) | PCI Express x1 Male |
