StarTech 4 Port PCIe SATA III Controller Card
Description
• StarTech 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering Bus Type: PCI Express
• Interface: SATA
• Supported RAID Modes: JBOD
• (Just a Bunch of Disks), RAID 1 (Mirrored Disks), RAID 0 (Striped Disks), RAID 10 (1+0; Striped set of Mirrored Subset)
• Type and Rate: SATA III (6 Gbps)
• 1x PCI Express x2 Male, 4x SATA (7 pin; Data) Plug
• Interface: SATA
• Supported RAID Modes: JBOD
• (Just a Bunch of Disks), RAID 1 (Mirrored Disks), RAID 0 (Striped Disks), RAID 10 (1+0; Striped set of Mirrored Subset)
• Type and Rate: SATA III (6 Gbps)
• 1x PCI Express x2 Male, 4x SATA (7 pin; Data) Plug
$149.00
Sale price
$149.00
In stock with supplier
BANK TRANSFER (EFT)
$149.00
Sale price
$149.00
In stock with supplier
Accepted payment methods
Description
• StarTech 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering Bus Type: PCI Express
• Interface: SATA
• Supported RAID Modes: JBOD
• (Just a Bunch of Disks), RAID 1 (Mirrored Disks), RAID 0 (Striped Disks), RAID 10 (1+0; Striped set of Mirrored Subset)
• Type and Rate: SATA III (6 Gbps)
• 1x PCI Express x2 Male, 4x SATA (7 pin; Data) Plug
View Full Details
• Interface: SATA
• Supported RAID Modes: JBOD
• (Just a Bunch of Disks), RAID 1 (Mirrored Disks), RAID 0 (Striped Disks), RAID 10 (1+0; Striped set of Mirrored Subset)
• Type and Rate: SATA III (6 Gbps)
• 1x PCI Express x2 Male, 4x SATA (7 pin; Data) Plug

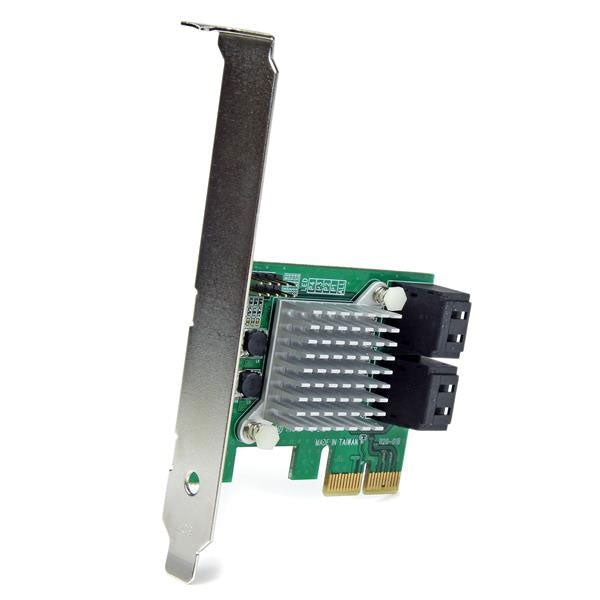

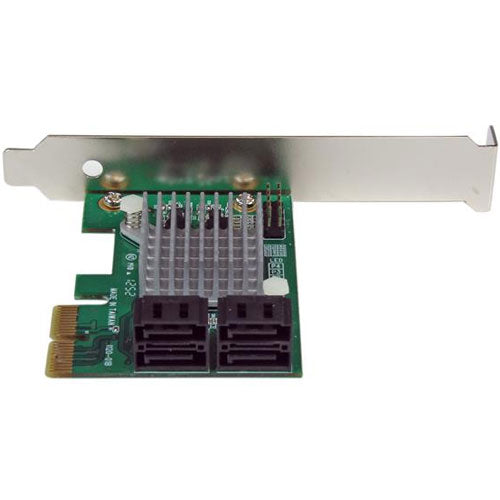

The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs).
Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.)
The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support.
Throughput Benchmark
| Drive configuration | Throughput | Drive size |
|---|---|---|
| 1 x HDD | 112.81 MB/s | 2 TB |
| 1 x SSD | 490.28 MB/S | 120 GB |
| 1 x HDD + 1 x SSD HyperDuo (Safe Mode) | 489.28 MB/s | 2 TB |
| 1 x HDD + 2 x SSD HyperDuo (Safe Mode) | 715.13 MB/s | 2 TB |
| Drives Used: SSD: OCZ Vertex 3 Series 2.5” 120 GB (VTX3-25SAT3-120G) HDD: Western Digital Caviar Green 3.5” 2 TB (WD20EARS) Software Used: IO Meter, 256KB Sequential Read, queue depth = 10 |
||
This PCIe SATA 6gbps card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| Hardware | |
| Ports | 4 |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 145 g [5.1 oz] |
| Performance | |
| ATAPI Support | Yes |
| Bootable | Yes |
| Hot Swap Capability | Yes |
| LBA support | 48-bit |
| Max Drive Capacity | Currently tested up to 4TB per drive |
| Number of Drives Supported Through Port Multiplier | 1 to 4 |
| Number of Ports That Support Port Multiplier | 4 (can only use 1 PM at a time) |
| Port Multiplier | Yes |
| RAID | Yes |
| Supported RAID Modes | JBOD - (Just a Bunch of Disks) |
| RAID 0 (Striped Disks) | |
| RAID 1 (Mirrored Disks) | |
| RAID 10 (1+0, Striped set of Mirrored Subset) | |
| Hardware | |
| Port Style | Integrated on Card |
| Interface | SATA |
| Industry Standards | Serial ATA 3.0 specification |
| PCI Express 2.0 | |
| Chipset ID | Marvell - 88SE9230 |
| Card Type | Standard Profile (LP bracket incl.) |
| Bus Type | PCI Express |
| Environmental | |
| Storage Temperature | -25°C ~ 70°C (-13°F ~ 158°F) |
| Operating Temperature | 5°C ~ 50°C (41°F ~ 122°F) |
| Humidity | 20% ~ 80% RH |
| Connector(s) | |
| Internal Ports | SATA (7 pin, Data) Plug |
| Connector Type(s) | PCI Express x2 Male |
| Performance | |
| Type and Rate | SATA III (6 Gbps) |
| Physical Characteristics | |
| Product Height | 20 mm [0.8 in] |
| Product Length | 70 mm [2.8 in] |
| Product Weight | 50 g [1.8 oz] |
| Product Width | 120 mm [4.7 in] |
| Software | |
| OS Compatibility | Windows® XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS® 10.6 to 10.13 Linux 3.5.x to 4.11.x LTS versions only |
| Special Notes / Requirements | |
| Note |
The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps per lane. Only one port can use the Port Multiplier feature at a time. Supports up to 4 drives connected via Port Multiplier, 7 drives total. Port Multiplier not supported in Mac OS. Note: Connected drives cannot be used as System / Primary drive in Windows Server 2012, 2012 R2, 2016 |
| System and Cable Requirements | Available PCI Express x2 slot (backward compatible with x4, x8, and x16 slots) |

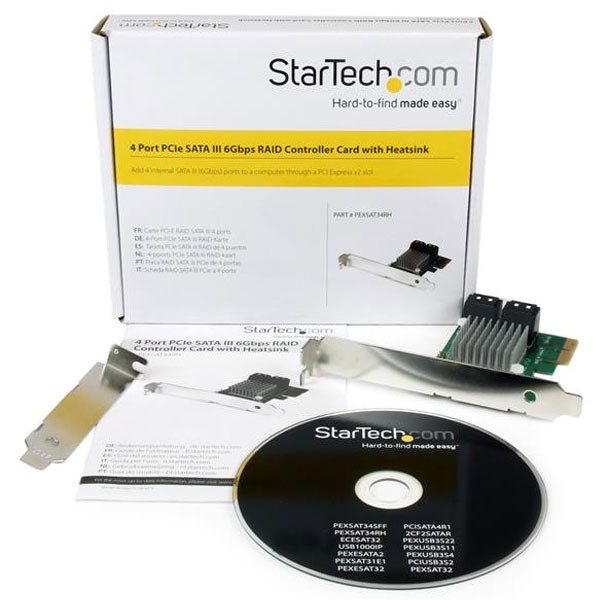

| What's in the Box | |
| Included in Package | Driver CD |
| Instruction Manual | |
| Low Profile Bracket | |
| PCIe SATA Controller Card | |
