StarTech 4 Port PCI USB 3.0 Card w/ SATA Power
Description
$123.41
Sale price
$123.41
In stock with supplier
Ships within 8 - 24 days
BANK TRANSFER (EFT)
$123.41
Sale price
$123.41
In stock with supplier
Ships within 8 - 24 days
Accepted payment methods
Description
• StarTech 4 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA / SP4 Power
View Full Details

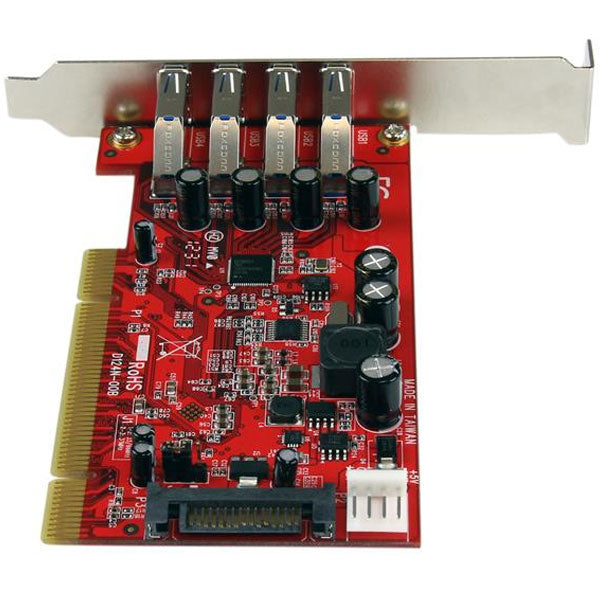

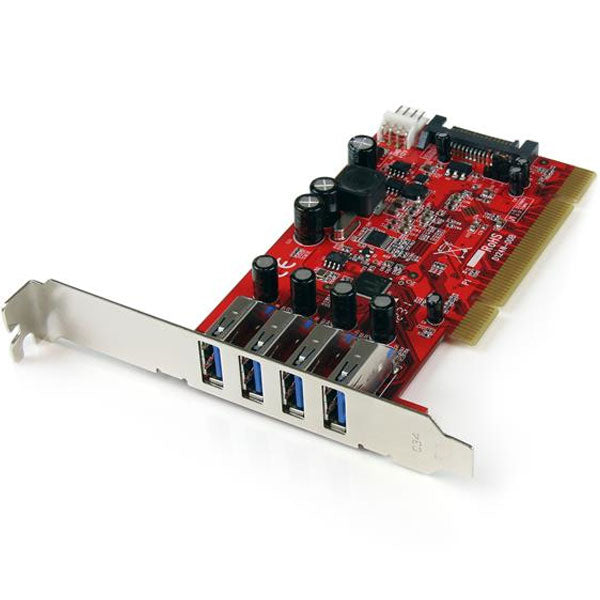

The PCIUSB3S4 4-Port PCI to USB 3.0 Card enables legacy PCI slots to support the SuperSpeed USB 3.0 standard, which is capable of data transfer rates up to 5 Gbps. Using USB 3.0 devices with this card will increase data transfer rates with up to 1.3 Gbps of available bandwidth (PCI bus limit) - more than doubling performance compared to a USB 2.0 connection.
This versatile USB 3.0 adapter includes an optional SATA power connector which allows each USB port to deliver up to 900mA of power to connected USB 3.0 devices - suitable for even the most power hungry devices.
A perfect solution for older PCI-based systems or computers with only PCI expansion slots remaining, the card allows those systems to stay relevant and up-to-date with the latest USB technology. The card is also backward compatible with USB 2.0 and 1.x devices, so it will not only work with any future USB 3.0 devices, but will also support older devices.
The PCIUSB3S4 4-Port PCI USB 3.0 Card is backed by StarTech.com lifetime warranty and free lifetime technical support.
| Connector(s) | |
| Connector Type(s) | PCI / PCI-X (Universal 3.3 & 5V, 32-bit) |
| External Ports | USB Type-A (9 pin) USB 3.0 Female |
| Internal Ports | SATA Power (15 pin) Plug |
| SP4 (4 pin, Small Drive Power) Plug | |
| Environmental | |
| Humidity | 15% ~ 90% RH |
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -25°C to 70°C (13°F to 158°F) |
| Hardware | |
| Bus Type | PCI / PCI-X (5 / 3.3V) |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | Renesas/NEC - µPD720202 |
| Interface | USB 3.0 |
| Special Notes / Requirements | |
| System and Cable Requirements | Available SATA or Floppy power connector |

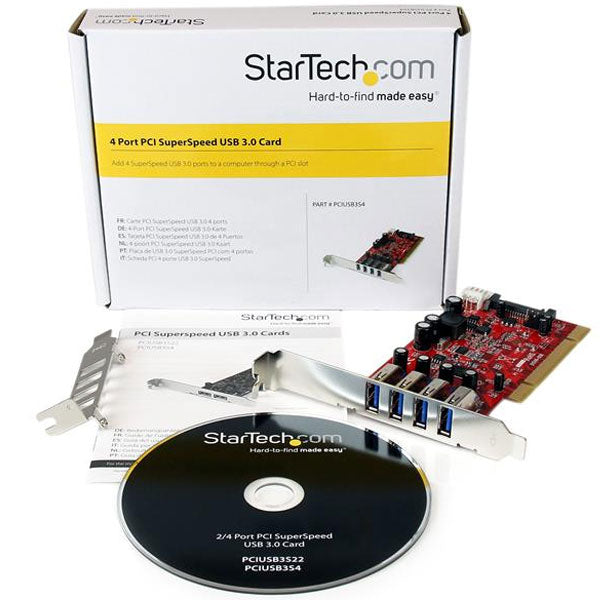

| What's in the Box | |
| Included in Package | Driver CD |
| Instruction Manual | |
| Low Profile Bracket | |
| PCI USB 3.0 Card | |
| Special Notes / Requirements | |
| System and Cable Requirements | Available PCI slot |
| Software | |
| OS Compatibility | Windows® XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016 |
| Physical Characteristics | |
| Product Width | 20 mm [0.8 in] |
| Product Weight | 80 g [2.8 oz] |
| Product Length | 133 mm [5.2 in] |
| Product Height | 65 mm [2.6 in] |
| Color | Red |
| Performance | |
| UASP Support | Yes |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| Maximum Data Transfer Rate | 1.3 Gbps (PCI Bus) |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.5 lb] |
| Hardware | |
| Ports | 4 |
StarTech 4 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA / SP4 Power
