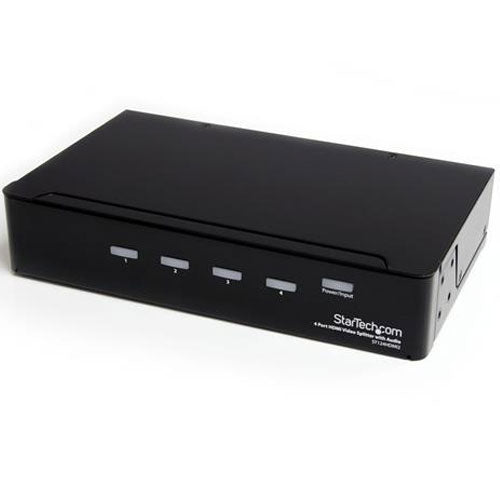

StarTech 4 Port HDMI Video Splitter with Audio
Description
• StarTech 4 Port High Speed HDMI Video Splitter with Audio Rack Mountable
• Supports up to 1080p
• Supports up to 1080p
$224.95
Sale price
$224.95
In stock with supplier
Ships within 8 - 27 days
BANK TRANSFER (EFT)
$224.95
Sale price
$224.95
In stock with supplier
Ships within 8 - 27 days
Accepted payment methods
Description
• StarTech 4 Port High Speed HDMI Video Splitter with Audio Rack Mountable
• Supports up to 1080p
View Full Details
• Supports up to 1080p
The ST124HDMI2 4 Port High Speed HDMI® Video Splitter with Audio lets you share a single HDMI source with up to 4 HDMI or DVI-D enabled displays/receivers, without sacrificing image or sound quality. Mounting brackets are included for a tidy, professional installation.
Supporting true HD video resolutions up to 1080p, this HDMI splitter allows you to situate your HDMI-capable displays up to 15ft (5m) away from the splitter. This versatile HDMI splitter features 3.5mm audio input and output connections giving you the option of sending your accompanying audio signal through the HDMI cable or through a separate 3.5mm stereo audio channel.
A perfect addition to virtually any application requiring the high quality video delivered by HDMI devices, the ST124HDMI2 video splitter is easy to install and provides flawless, distortion-free digital video.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
| Hardware | |
| Ports | 4 |
| Indicators | |
| LED Indicators | Green Port signal indicator |
| Power (Green) / Input Signal (Blue) | |
| Packaging Information | |
| Shipping (Package) Weight | 1.6 kg [3.5 lb] |
| Performance | |
| Maximum Cable Length | 15.2 m [50 ft] |
| Maximum Digital Resolutions | HDTV 1080p / PC 1920x1200 |
| Supported Resolutions | 1080p (1920 x 1080) / VGA (640 x 480) / SXGA (1280 x 1024) / UXGA (1600 x 1200) / WUXGA (1920 x 1200) |
| Wide Screen Supported | Yes |
| Hardware | |
| Industry Standards | High Speed HDMI®, HDCP, EDID |
| Cabling | HDMI |
| AV Output | HDMI |
| AV Input | HDMI |
| Audio | Yes |
| Environmental | |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 0%~80% |
| Connector(s) | |
| Connector B | HDMI (19 pin) Female |
| 3.5 mm Mini-Jack (3 Position) Female | |
| Connector A | HDMI (19 pin) Female |
| 3.5 mm Mini-Jack (3 Position) Female | |
| Physical Characteristics | |
| Color | Black |
| Power | |
| Power Source | AC Adapter Included |

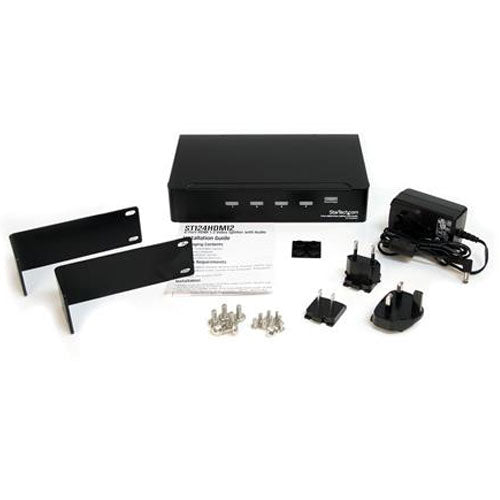

| What's in the Box | |
| Included in Package | HDMI splitter |
| instruction manual | |
| mounting hardware and screw kit | |
| universal power adapter (NA / EU / UK / AU) | |
| Physical Characteristics | |
| Enclosure Type | Steel |
| Product Height | 44 mm [1.7 in] |
| Product Length | 220 mm [8.7 in] |
| Product Weight | 1074 g [37.9 oz] |
| Product Width | 135 mm [5.3 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.8A |
| Input Voltage | 110V-240V AC |
| Output Current | 1.5A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
Rack Mountable
StarTech 4 Port High Speed HDMI Video Splitter with Audio
Supports up to 1080p
StarTech 4 Port High Speed HDMI Video Splitter with Audio
Supports up to 1080p
