StarTech 4 Port USB DisplayPort KVM Switch with Audio
StarTech 4 Port USB DisplayPort KVM Switch with Audio
Description
• StarTech 4 Port DisplayPort USB KVM Switch with Audio & USB 2.0 Hub 7.1 Channel HD Audio Support
• - WQXGA 2560x1600 @60Hz
• Supports 3840x2400 at lower refresh rates
• Supports Dual Link DVI
• - WQXGA 2560x1600 @60Hz
• Supports 3840x2400 at lower refresh rates
• Supports Dual Link DVI
$576.95
Sale price
$576.95
In stock with supplier
Ships within 8 - 24 days
BANK TRANSFER (EFT)
$576.95
Sale price
$576.95
In stock with supplier
Ships within 8 - 24 days
Accepted payment methods
Description
• StarTech 4 Port DisplayPort USB KVM Switch with Audio & USB 2.0 Hub 7.1 Channel HD Audio Support
• - WQXGA 2560x1600 @60Hz
• Supports 3840x2400 at lower refresh rates
• Supports Dual Link DVI
View Full Details
• - WQXGA 2560x1600 @60Hz
• Supports 3840x2400 at lower refresh rates
• Supports Dual Link DVI
The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

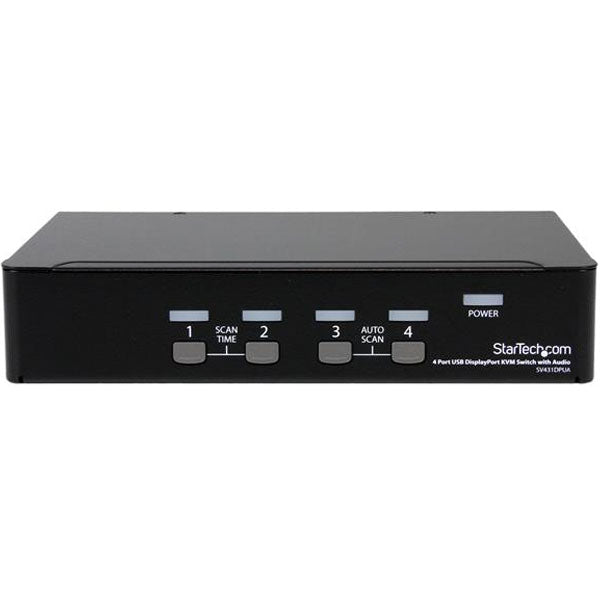

A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

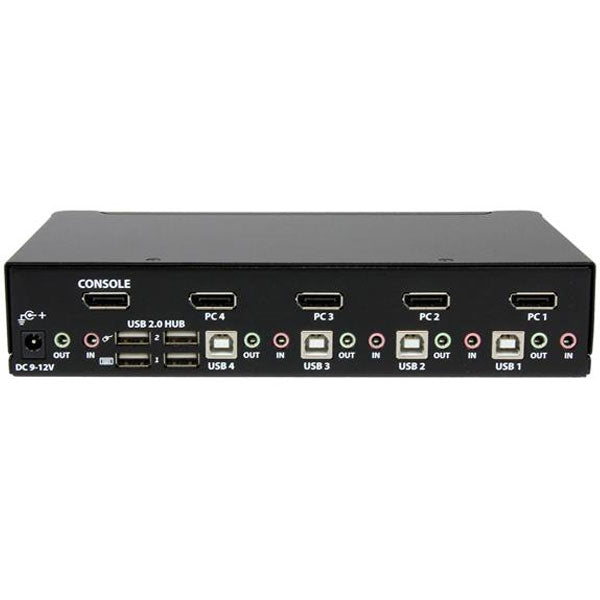

| Connector(s) | |
| Console Interface(s) | 3.5 mm Mini-Jack (3 Position) Female |
| DisplayPort (20 pin) Female | |
| USB Type-A (4 pin) USB 2.0 Female | |
| Host Connectors | 3.5 mm Mini-Jack (3 Position) Female |
| DisplayPort (20 pin) Female | |
| USB B (4 pin) Female | |
| Environmental | |
| Humidity | 0~80% RH |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Hardware | |
| Audio | Yes |
| Cables Included | No |
| Daisy-Chain | No |
| KVM Ports | 4 |
| Number of Monitors Supported | 1 |
| PC Interface | USB |
| PC Video Type | DisplayPort |
| Rack-Mountable | Optional |
| Indicators | |
| LED Indicators | Green - Online indicator (One LED per port) |
| Power | |
| Red - Select indicator (One LED per port) | |
| Packaging Information | |
| Shipping (Package) Weight | 1.7 kg [3.8 lb] |
| Performance | |
| DVI Support | Yes - Dual Link |
| Hot-Key Selection | Yes |
| IP Control | No |
| Maximum Digital Resolutions | 2560 x 1600 @ 60Hz |
| Maximum Number of Users | 1 |
| On-Screen Display | No |
| Port Selection Support | Push Button and Hotkeys |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Depth | 130.6 mm [5.1 in] |
| Product Height | 44 mm [1.7 in] |
| Product Weight | 1100 g [38.8 oz] |
| Product Width | 220.7 mm [8.7 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.8A |
| Input Voltage | 110V-240V AC |
| Output Current | 1.5A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |

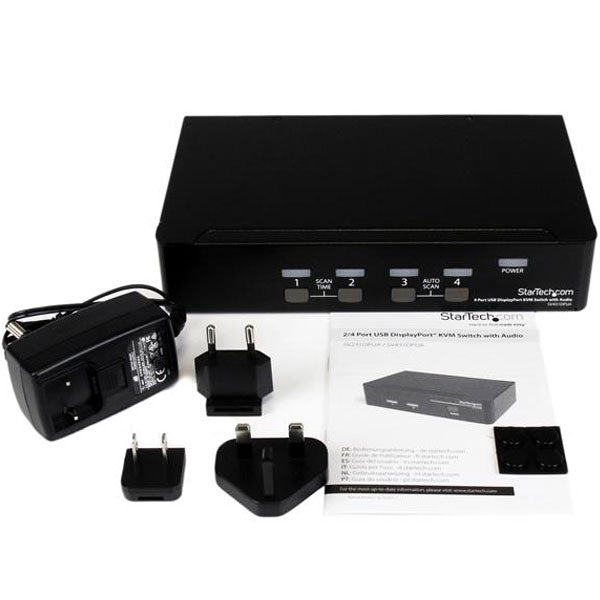

| Included in Package | 4-port DisplayPort KVM switch |
| foot pads | |
| instruction manual | |
| universal power adapter (NA/UK/EU/AU) | |
7.1 Channel HD Audio Support
StarTech 4 Port DisplayPort USB KVM Switch with Audio & USB 2.0 Hub
Supports 3840x2400 at lower refresh rates
Supports Dual Link DVI
WQXGA 2560x1600 @60Hz
StarTech 4 Port DisplayPort USB KVM Switch with Audio & USB 2.0 Hub
Supports 3840x2400 at lower refresh rates
Supports Dual Link DVI
WQXGA 2560x1600 @60Hz
