StarTech 3-Port Multi Monitor Adapter - DisplayPort MST Hub - Windows
StarTech 3-Port Multi Monitor Adapter - DisplayPort MST Hub - Windows
Description
3-Port DisplayPort multi-monitor adapter drives 2x 4K 30Hz and 1x 1080p 60Hz DP displays (no video compression)
MST hub/video splitter for multiple monitors increases productivity by extending your desktop
Triple monitor Multi Stream Transport hub works w/ computer brands like HP Dell Lenovo AMD/Nvidia/Intel video cards | Supports laptops/desktop PCs or graphics cards w/ DP 1.2 (MST + HBR2)
No drivers; Works w/ Windows only
Latching DP connector; Built-in video cable; AC power adapter
MST hub/video splitter for multiple monitors increases productivity by extending your desktop
Triple monitor Multi Stream Transport hub works w/ computer brands like HP Dell Lenovo AMD/Nvidia/Intel video cards | Supports laptops/desktop PCs or graphics cards w/ DP 1.2 (MST + HBR2)
No drivers; Works w/ Windows only
Latching DP connector; Built-in video cable; AC power adapter
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
$118.95
Sale price
$118.95
In stock with supplier
Ships within 8 - 24 days
BANK TRANSFER (EFT)
$118.95
Sale price
$118.95
In stock with supplier
Ships within 8 - 24 days
Accepted payment methods
Description
3-Port DisplayPort multi-monitor adapter drives 2x 4K 30Hz and 1x 1080p 60Hz DP displays (no video compression)
MST hub/video splitter for multiple monitors increases productivity by extending your desktop
Triple monitor Multi Stream Transport hub works w/ computer brands like HP Dell Lenovo AMD/Nvidia/Intel video cards | Supports laptops/desktop PCs or graphics cards w/ DP 1.2 (MST + HBR2)
No drivers; Works w/ Windows only
Latching DP connector; Built-in video cable; AC power adapter
View Full Details
MST hub/video splitter for multiple monitors increases productivity by extending your desktop
Triple monitor Multi Stream Transport hub works w/ computer brands like HP Dell Lenovo AMD/Nvidia/Intel video cards | Supports laptops/desktop PCs or graphics cards w/ DP 1.2 (MST + HBR2)
No drivers; Works w/ Windows only
Latching DP connector; Built-in video cable; AC power adapter
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more

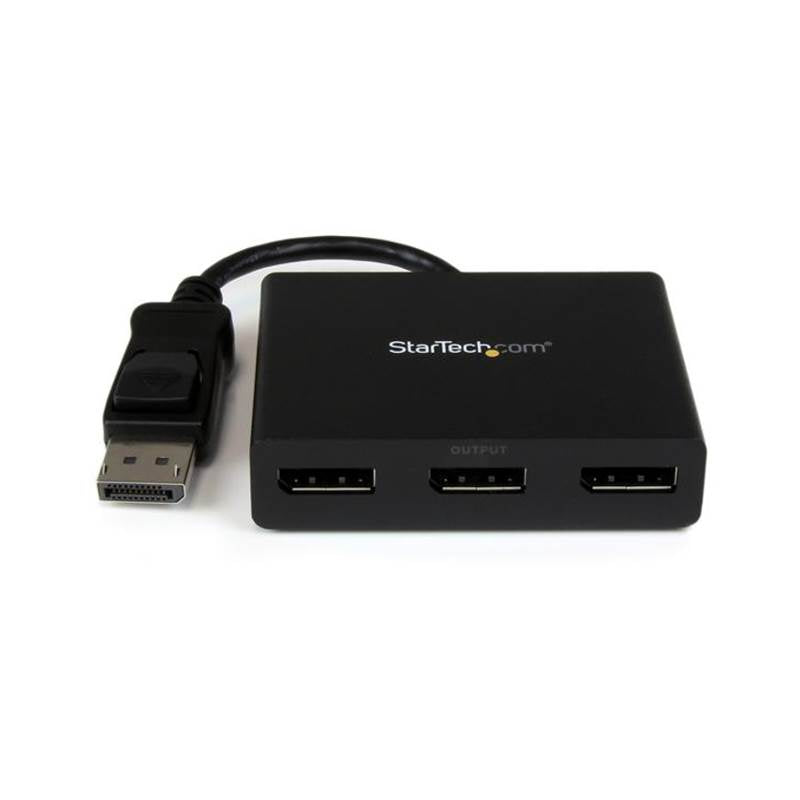

This MST hub lets you connect three monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier.
Connect to any display
With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.

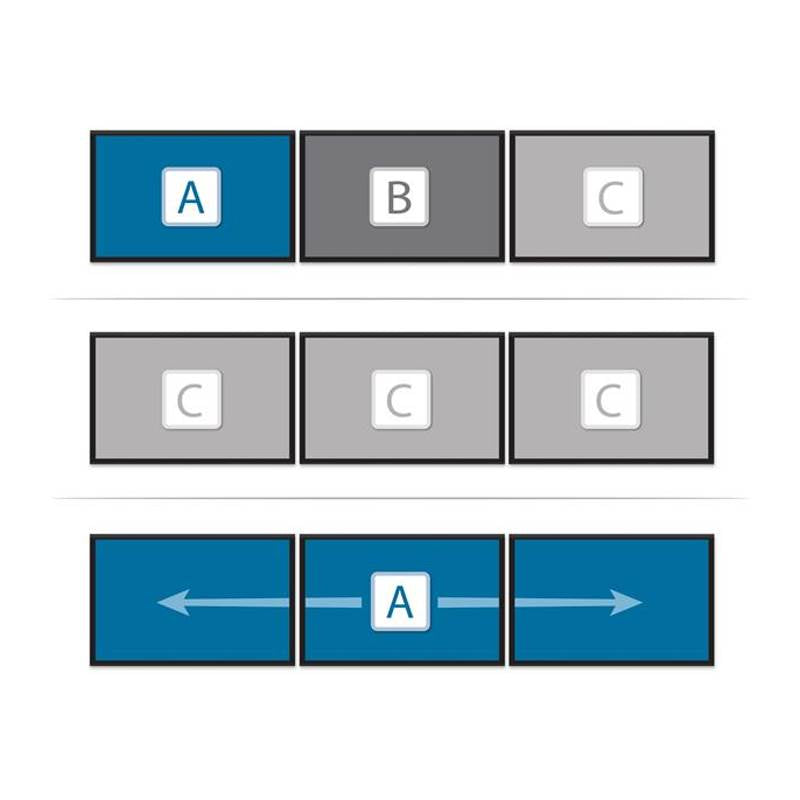

Configure your displays for any environment
Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Enjoy amazing video quality, without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.
Note: When using a DisplayPort 1.1 video card the MSTDP123DP will act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply.
The MSTDP123DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled.
Average Resolution Bandwidth Allocation
1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%
Note: Exceeding 100% will reduce functionality.
Examples of Supported Resolution Configurations
Screen 1 Resolution |
Screen 2 Resolution |
Screen 3 Resolution |
Total % of Bandwidth |
|---|---|---|---|
| 1920x1200 @60hz (30%) | 1920x1200 @60hz (30%) | 1920x1200 @60hz (30%) | 90% |
| 2560x1440 @60hz (35%) | 2560x1440 @60hz (35%) | 1920x1200 @60hz (30%) | 100% |
| 2560x1600 @60hz (38%) | 2560x1600 @60hz (38%) | 1920x1080 @60hz (22%) | 98% |
| 3840x2160 @30hz (38%) | 2560x1600 @60hz (38%) | 1920x1080 @60hz (22%) | 98% |
| 3840x2160 @30hz (38%) | 3840x2160 @30hz (38%) | 1920x1080 @60hz (22%) | 98% |
Examples of Unsupported Resolution Configurations
Screen 1 Resolution |
Screen 2 Resolution |
Screen 3 Resolution |
Total % of Bandwidth |
|---|---|---|---|
| 2560x1600 @60hz (38%) | 2560x1600 @60hz (38%) | 1920x1200 @60hz (30%) | 106% |
| 3840x2160 @30hz (38%) | 2560x1600 @60hz (38%) | 1920x1200 @60hz (30%) | 106% |
| 3840x2160 @30hz (38%) | 2560x1600 @60hz (38%) | 2560x1440 @60hz (35%) | 111% |
| 3840x2160 @30hz (38%) | 3840x2160 @30hz (38%) | 3840x2160 @30hz (38%) | 114% |
| Physical Characteristics | |
| Enclosure Type | Plastic |
| Product Height | 20 mm [0.8 in] |
| Product Length | 200 mm [7.9 in] |
| Product Weight | 95 g [3.4 oz] |
| Product Width | 78 mm [3.1 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.5 A |
| Input Voltage | 110V-240V AC |
| Output Current | 3A |
| Output Voltage | 5 DC |
| Plug Type | N |
| Power Consumption (In Watts) | 15 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | Windows 10 (32/64) Windows 8/8.1 (32/64) Windows 7(32/64) |
| Special Notes / Requirements | |
| Note | DisplayPort 1.2 with MST+HBR2 support from the GPU is required for independent display output |

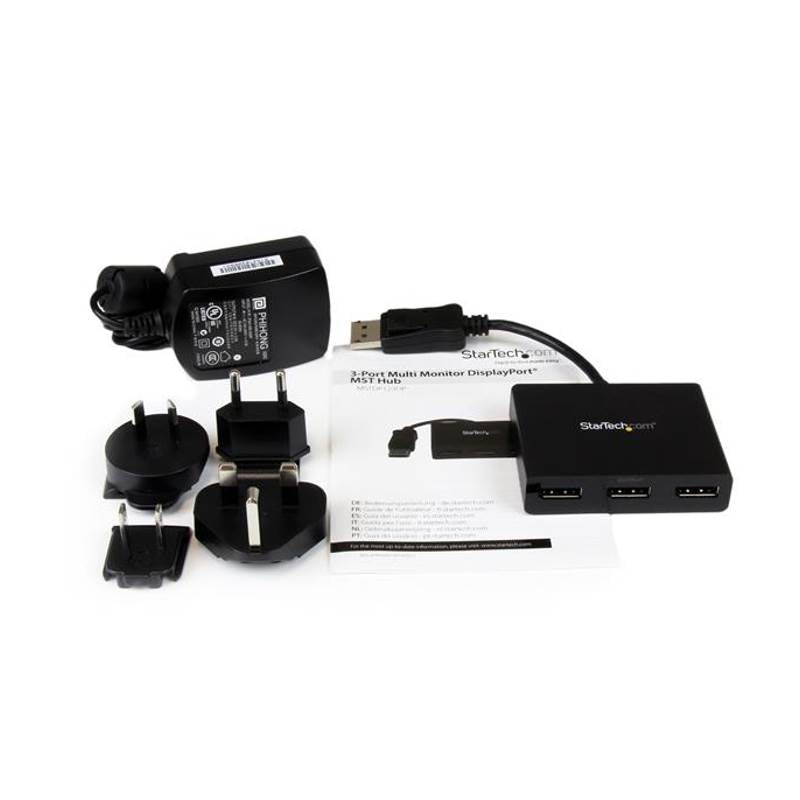

| What's in the Box | |
| Included in Package | 3-Port Multi Monitor DisplayPort™ MST Hub |
| Instruction Manual | |
| Universal Power Adapter (NA/EU/UK/AUS) | |
| Physical Characteristics | |
| Color | Black |
| Performance | |
| Wide Screen Supported | Yes |
| Maximum Digital Resolutions | Up to 4K |
| Packaging Information | |
| Shipping (Package) Weight | 0.6 kg [1.3 lb] |
| Hardware | |
| Ports | 3 |
| Chipset ID | MegaChips - STDP4320 |
| Audio | Yes |
| Active or Passive Adapter | Active |
| Environmental | |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Connector(s) | |
| Connector B | DisplayPort (20 pin) Female Latching |
| Connector A | DisplayPort (20 pin) Male Latching |
