This 3-port M.2 SSD adapter card is one of the only cards that supports both PCIe and SATA-based M.2 SSDs (solid-state drives). It’s a versatile way to expand the overall storage capacity of your desktop PC or server. Plus, because it supports a high-speed PCIe M.2 drive, you can increase the speed and performance of your computer.

Increase the storage of your desktop PC

If you need a simple and discreet way to expand your computer’s storage, then this card can help. The card provides a platform for adding up to three M.2 SSDs to virtually any computer that has a PCIe slot. It supports common M.2 SATA SSDs, as well as newer high-performance M.2 PCIe drives. Now, you have a simple and effective way to expand the storage of your computer, regardless of the M.2 drive types you are using.

Optimize your computer’s performance

When you couple this card with a PCI Express based M.2 drive, you can give your computer’s performance a noticeable speed boost. With support for PCI Express 3.0 (up to approximately 40Gbps), you can install the latest high-performance M.2 PCIe SSDs inside your computer. With faster performance, you can get more work done in less time.

Peace of mind, with simple and cost-effective data recovery

Due to their performance and size advantages, M.2 drives are commonly used in laptops. If your laptop has failed, but its M.2 drive is still functional, then this card can help with data recovery. Once the M.2 drive is installed and the data recovery is complete, you can continue to use the drive for storage and backup purposes.

Leverage the size and speed of M.2 drives

This M.2 card lets you take advantage of the size and performance benefits of NGFF M.2 SSDs. M.2 drives are smaller than typical platter drives or mSATA-based SSDs, so you can install them in small form-factor PCs and servers, or in tighter areas within your computer case.

Supports a wide range of drives

You can rest assured that your M.2 SSDs are compatible with the adapter card. It supports the most common drive sizes, including, 2280, 2260, 2242 and 2230.

The PEXM2SAT32N1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Hardware
Interface	M.2 SATA
	SATA
Port Style	Integrated on Card
Ports	3

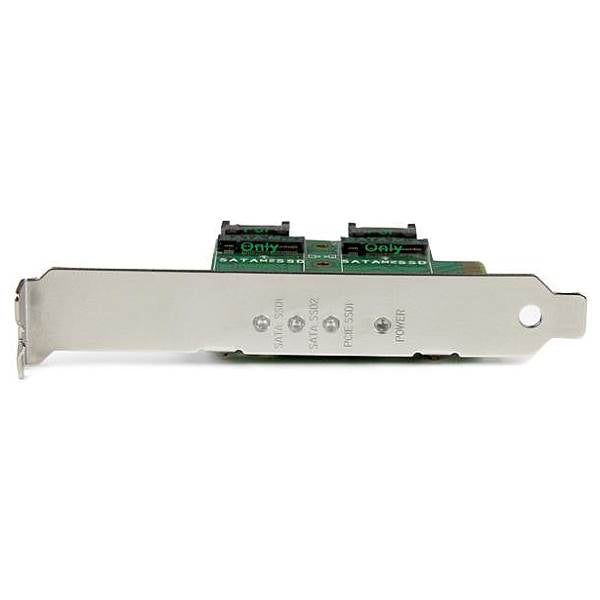

Indicators
LED Indicators	M.2 drive status/activity
	Power
Packaging Information
Shipping (Package) Weight	122 g [4.3 oz]
Performance
ATAPI Support	Yes
Bootable	Yes
MTBF	50,000 Hours
Port Multiplier	No
RAID	No
Type and Rate	SATA III (6 Gbps)
Physical Characteristics
Product Height	120 mm [4.7 in]
Product Length	120 mm [4.7 in]
Product Weight	46 g [1.6 oz]
Product Width	20 mm [0.8 in]
Software
OS Compatibility	OS Independent; No additional drivers or software required Note: When installed in a compatible operating system, the card is natively supported and doesn’t require any additional drivers or software. However, your operating system must natively support PCIe SSDs (NVMe - Non-Volatile Memory Express).
Special Notes / Requirements
Note	The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5Gbps per lane.
System and Cable Requirements	A computer enabled with PCI Express (PCIe), and an available PCI Express x4, x8, or x16 slot
	An operating system that natively supports PCIe SSDs (NVMe), such as: - Windows® 7 and later - Mac OS 10.10.3 and later
	One or two SATA host ports on the host computer (for example, the SATA controller card, or the motherboard SATA ports inside of your computer)

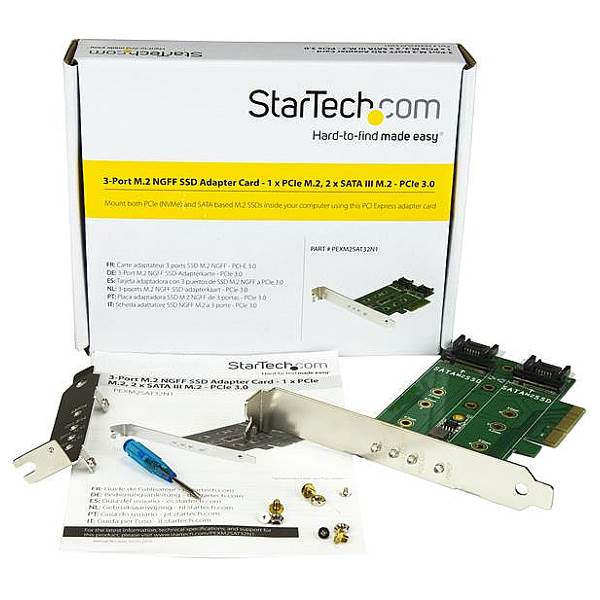

What's in the Box
Included in Package	3-port M.2 NGFF SSD adapter card
	low-profile bracket
	M.2 mounting nuts
	M.2 mounting screws
	M.2 mounting standoffs
	quick-start guide
	screwdriver
Hardware
Interface	M.2 PCIe
Industry Standards	Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)
	PCI Express 3.0
Card Type	Standard Profile (LP bracket incl.)
Bus Type	PCI Express
Environmental
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
Operating Temperature	5°C to 50°C (41°F to 122°F)
Humidity	20%~80% RH (Non-condensing)
Connector(s)
Internal Ports	SATA (7 pin, Data) Plug
	M.2 SATA (NGFF, B-Key) Receptacle
	M.2 (NGFF, M-Key, PCIe x4) Receptacle
Connector Type(s)	PCI Express x4 Male

1 x PCIe (NVMe) M.2
2 x SATA III M.2

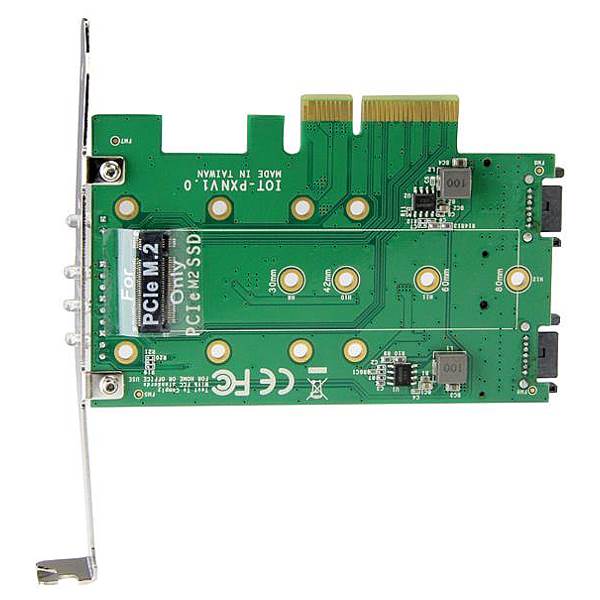

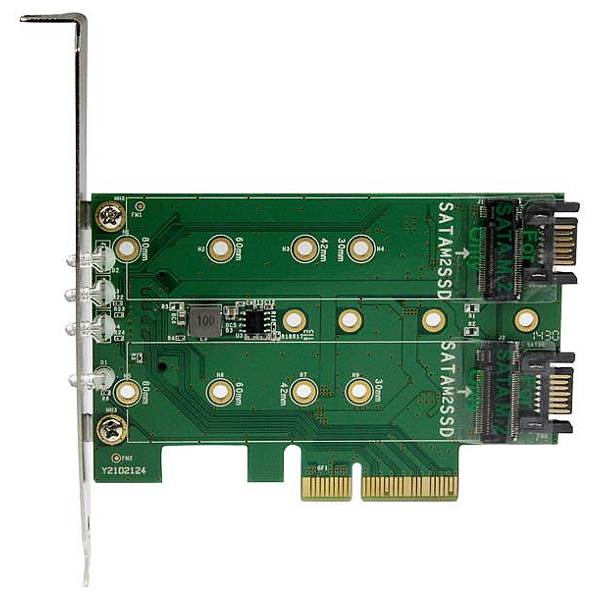

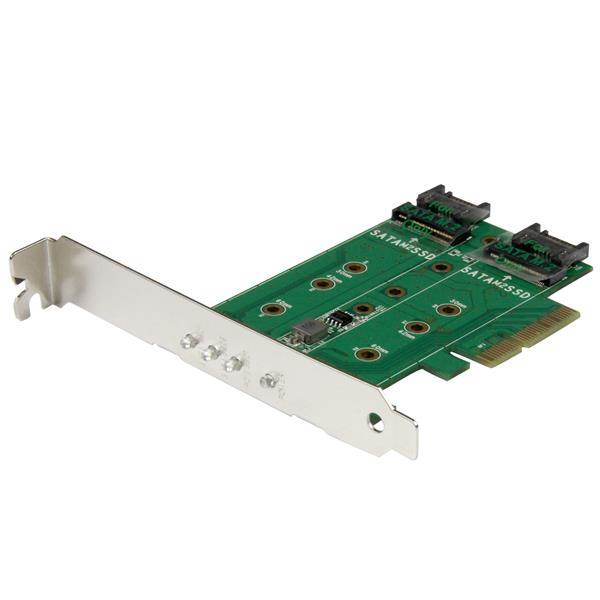

3-Port M.2 SSD (NGFF) Adapter Card
Expand the storage and improve the performance of your computer
with slots for two M.2 SATA SSDs and one M.2 PCIe SSD
Installs into x4
x8
or x16 PCIe slots
PCIe 3.0

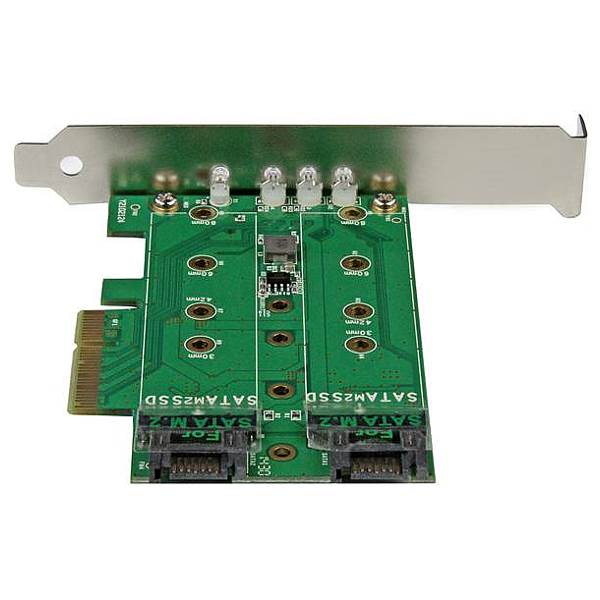

SATA slots feature a passthrough design
so your drives can connect to the SATA ports on your host PC
StarTech 3-Port M.2 SSD (NGFF) Adapter Card
Supports PCI Express 3.0 (x4)
ideal for a high-performance M.2 PCIe SSD (NVMe)
