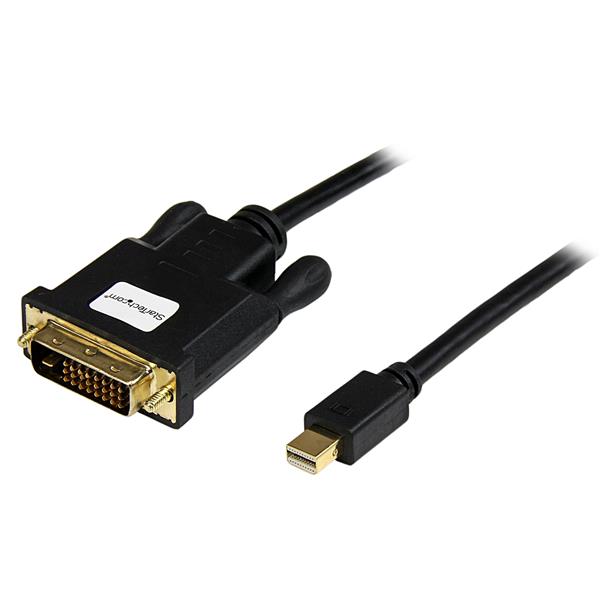

StarTech 3m Mini DisplayPort to DVI Adapter Cable - Mini DP to DVI-D
StarTech 3m Mini DisplayPort to DVI Adapter Cable - Mini DP to DVI-D
Description
• 10m Mini DisplayPort to DVI-D (digital) single-link adapter cable connects a DVI display/projector/monitor | 1080p 60Hz or 4K 30Hz (monitors w/HDMI clock-rate) | EDID Passive mDP to DVI converter cable supports Mini DisplayPort 1.2 equipped PC or Mac incl Thunderbolt 1/2 MacBook Pro/Air/Mac Mini | Workstations | Desktop Computers (AMD/Nvidia video cards) | Laptops | Docks -Integrated video adapter prevents signal loss
• Mini DP to DVI cable supports DVI screw locking cord
• OS independent
• Mini DP to DVI cable supports DVI screw locking cord
• OS independent
$50.02
Sale price
$50.02
BANK TRANSFER (EFT)
$50.02
Sale price
$50.02
Accepted payment methods
Description
• 10m Mini DisplayPort to DVI-D (digital) single-link adapter cable connects a DVI display/projector/monitor | 1080p 60Hz or 4K 30Hz (monitors w/HDMI clock-rate) | EDID Passive mDP to DVI converter cable supports Mini DisplayPort 1.2 equipped PC or Mac incl Thunderbolt 1/2 MacBook Pro/Air/Mac Mini | Workstations | Desktop Computers (AMD/Nvidia video cards) | Laptops | Docks -Integrated video adapter prevents signal loss
• Mini DP to DVI cable supports DVI screw locking cord
• OS independent
View Full Details
• Mini DP to DVI cable supports DVI screw locking cord
• OS independent
The MDP2DVIMM10B Mini DisplayPort® to DVI Adapter Cable lets you directly connect your Mini DP video source (desktop PC, laptop, Ultrabook, etc.) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 10 feet (3 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM10B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Performance | |
| Maximum Cable Length | 3 m [10 ft] |
| Maximum Digital Resolutions | 1920x1200 / 1080p |
| Packaging Information | |
| Shipping (Package) Weight | 162 g [5.7 oz] |
| Hardware | |
| Chipset ID | NXP - 3361 |
| AV Output | DVI |
| AV Input | DisplayPort |
| Audio | No |
| Adapter Style | Cable Adapters |
| Active or Passive Adapter | Passive |
| Environmental | |
| Storage Temperature | 0°C to 70°C (32°F to 158°F) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Humidity | 40%-85%RH |
| Connector(s) | |

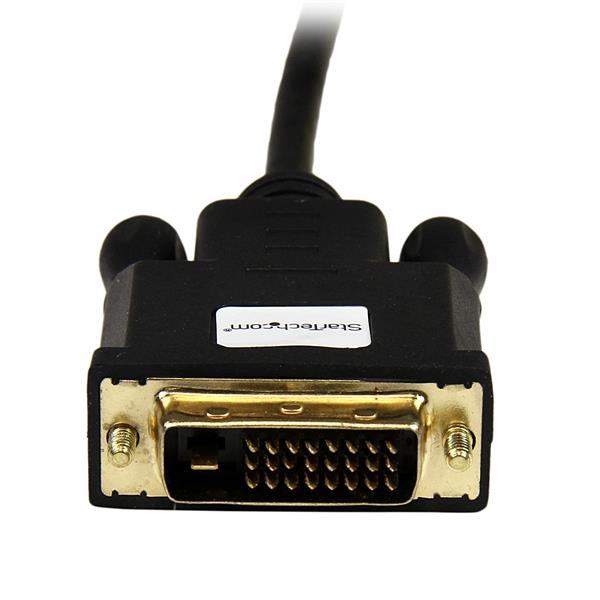

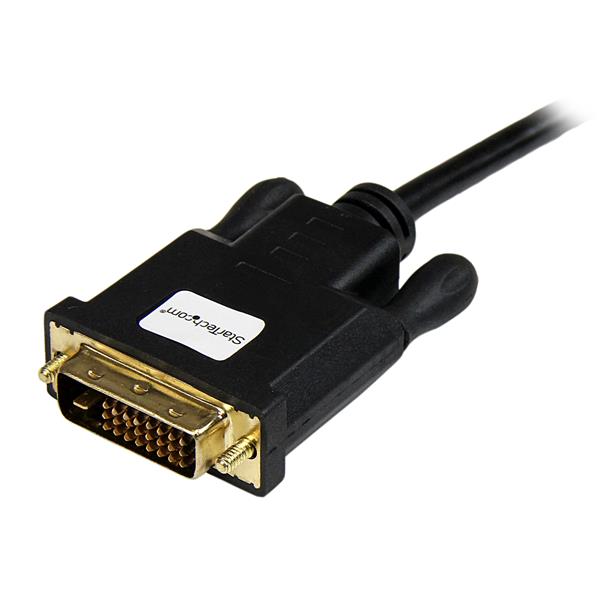

| Connector B | DVI-D (25 pin) Male |

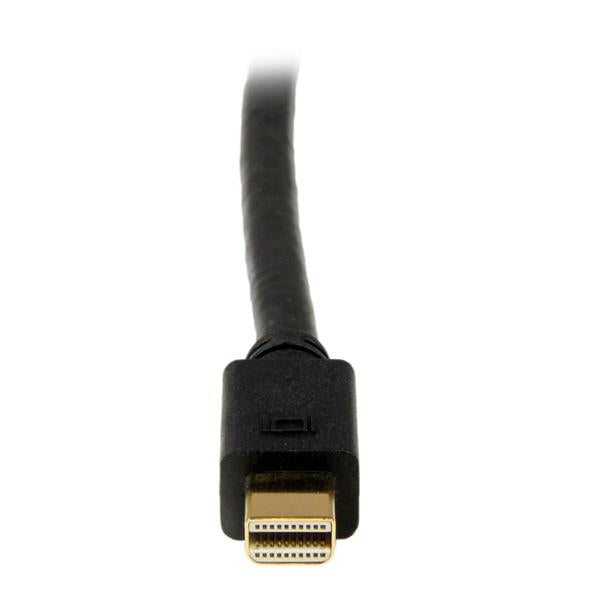

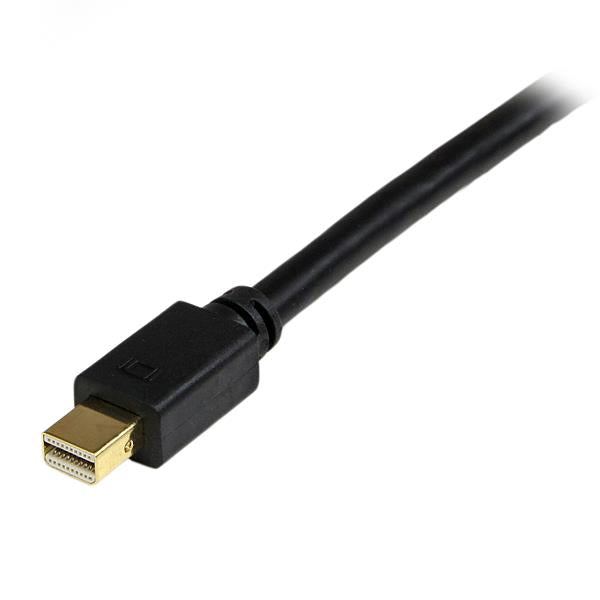

| Connector A | Mini-DisplayPort (20 pin) Male |
| Performance | |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Cable Length | 3 m [10 ft] |
| Color | Black |
| Product Height | 15 mm [0.6 in] |
| Product Length | 3050 mm [120.1 in] |
| Product Weight | 153 g [5.4 oz] |
| Product Width | 38 mm [1.5 in] |
| Special Notes / Requirements | |
| System and Cable Requirements | DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI® signal pass-through |
| What's in the Box | |
| Included in Package | Mini DisplayPort® to DVI Adapter |
10m Mini DisplayPort to DVI-D (digital) single-link adapter cable connects a DVI display/projector/monitor | 1080p 60Hz or 4K 30Hz (monitors w/HDMI clock-rate) | EDID
Mini DP to DVI cable supports DVI screw locking cord
OS independent
Passive mDP to DVI converter cable supports Mini DisplayPort 1.2 equipped PC or Mac incl Thunderbolt 1/2 MacBook Pro/Air/Mac Mini | Workstations | Desktop Computers (AMD/Nvidia video cards) | Laptops | Docks -Integrated video adapter prevents signal loss
Mini DP to DVI cable supports DVI screw locking cord
OS independent
Passive mDP to DVI converter cable supports Mini DisplayPort 1.2 equipped PC or Mac incl Thunderbolt 1/2 MacBook Pro/Air/Mac Mini | Workstations | Desktop Computers (AMD/Nvidia video cards) | Laptops | Docks -Integrated video adapter prevents signal loss
