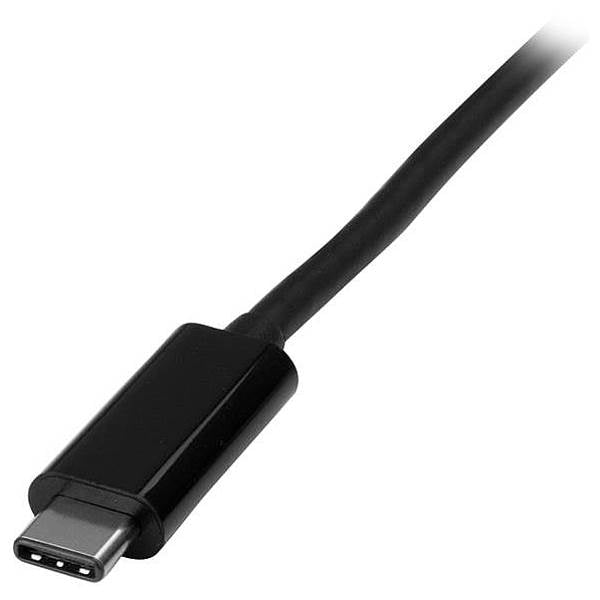

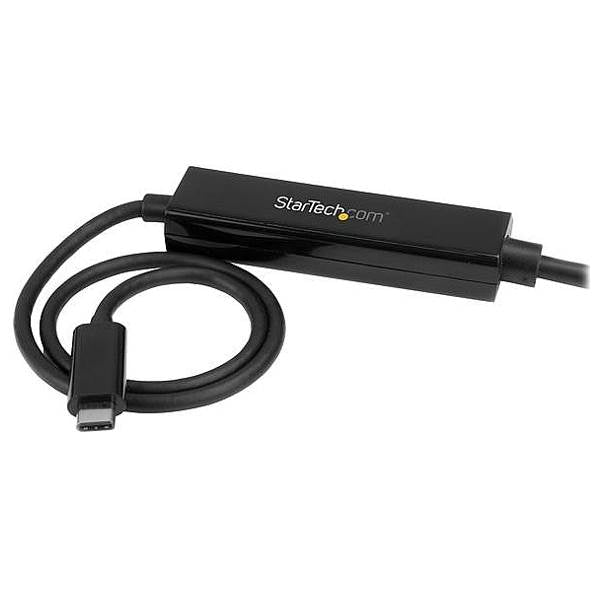

This USB-C™ to VGA adapter cable offers a convenient solution for directly connecting your DisplayPort over USB Type-C™ device to your VGA monitor or projector. The adapter supports a offers distance of up to 1 m (3 ft.) and works with USB-C devices that support DP Alt Mode, such as the MacBook, Chromebook Pixel™ and Dell™ XPS™ models 15 and 13. It's also compatible with Thunderbolt™ 3 ports.

Clutter-free installation

At 1 m (3 ft.) in length, this adapter cable delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation.

For longer installations, StarTech.com also offers a 2 m (6 ft.) USB-C to VGA cable (CDP2VGAMM2MB) and 3 m (10 ft.) USB-C to VGA cable (CDP2VGA3MBNL), enabling you to choose the right cable length for your custom installation needs.

Crystal-clear picture quality

The adapter harnesses the video capabilities that are built into your USB Type-C connector to deliver video resolutions up to 1920x1200, providing support for your high-resolution VGA monitors - great for multitasking on high-resolution VGA displays. The adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other HD work environments.

The CDP2VGAMM1MB is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Note: Your USB-C equipped device must support video to work with this adapter.

Performance
Wide Screen Supported	Yes
Physical Characteristics
Accent Color	Black
Cable Length	1 m [3.3 ft]
Color	Black
Product Height	15 mm [0.6 in]
Product Length	1040 mm [40.9 in]
Product Weight	93 g [3.3 oz]
Product Width	35 mm [1.4 in]
Performance
Supported Resolutions	1024x768 1280x720 (High-definition 720p) 1920x1080 (High-definition 1080p) 1920x1200
Maximum Analog Resolutions	1920x1200 or 1080p
Packaging Information
Shipping (Package) Weight	0.1 kg [0.2 lb]
Hardware
Ports	1
Chipset ID	NXP - PTN5100
AV Output	VGA
AV Input	USB Type-C
Environmental
Storage Temperature	-10°C to 80°C (14°F to 176°F)
Operating Temperature	0°C to 70°C (32°F to 158°F)
Humidity	5~90% RH (Non-condensing)
Connector(s)
Connector B	VGA (15 pin, High Density D-Sub) Male Output
Connector A	USB-C (24 pin) DisplayPort Alt Mode Male Input
Special Notes / Requirements
Note	Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.
System and Cable Requirements	Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.
What's in the Box
Included in Package	USB-C to VGA adapter cable

3.3/1m USB Type C (DP Alt Mode HBR2) to VGA active adapter cable |1920x1200/1080p 60Hz | EDID/DDC Pass-Through integrated video adapter cable prevents signal loss/reduces failure points
No drivers | OS Independent
Tested w/ Dell/Samsung/Asus/Acer/LG/Sony/Christie/NEC/Epson monitors/projectors/displays
Works w/USB-C/Thunderbolt 3 laptops Dell XPS Precision Latitude | Lenovo ThinkPad X1 Carbon Extreme | Surface Pro 7/Book 3 | iPad Pro | MacBook Pro/Air | HP EliteBook Spectre | Chromebook
