StarTech 3 Port 2b 1a PCI Express FireWire Card
Description
$114.95
Sale price
$114.95
In stock with supplier
Ships within 8 - 24 days
BANK TRANSFER (EFT)
$114.95
Sale price
$114.95
In stock with supplier
Ships within 8 - 24 days
Accepted payment methods
Description
• StarTech 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter
View Full Details

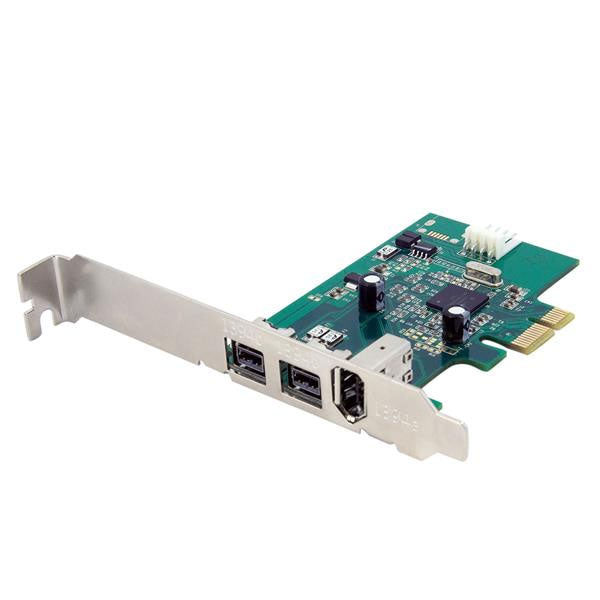

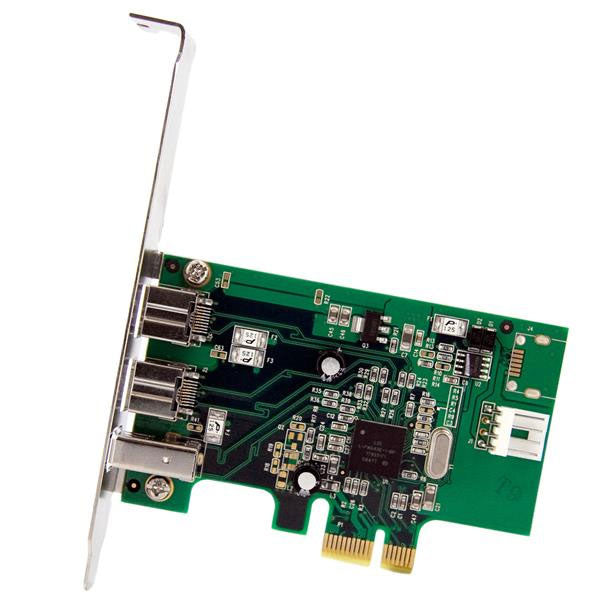

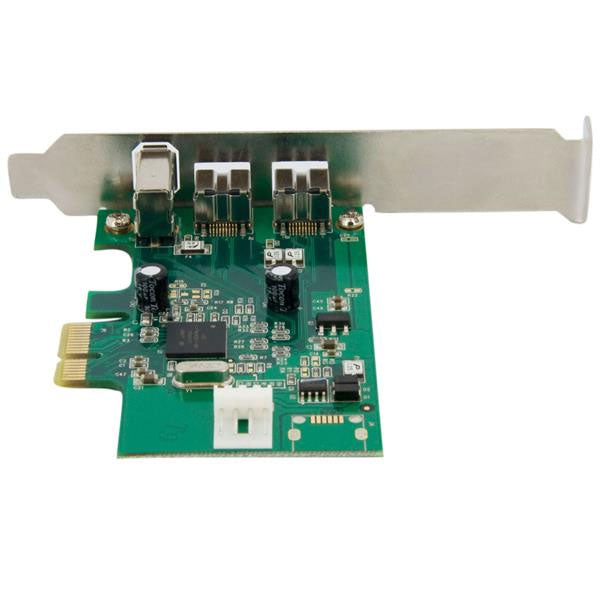

This 3 Port PCI Express FireWire adapter card can be installed in a PCI Express slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2b, 1a card features a native (single chip) PCI Express chipset - resulting in faster, more reliable and cost effective performance than expansion cards that utilize a "bridge" chip.
Hardware
Interface
FireWire 800 (1394b)
Ports
3
Packaging Information
Shipping (Package) Weight
0.2 kg [0.5 lb]
Performance
Maximum Data Transfer Rate
800 Mbps
400 Mbps Physical Characteristics
Product Height
120 mm [4.7 in]
Product Length
85 mm [3.3 in]
Product Weight
50 g [1.8 oz]
Product Width
18 mm [0.7 in]
Software
OS Compatibility
Windows® 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2016
Mac OS® 10.6 to 10.13
Linux 3.5.x to 4.4.x LTS Versions Only Special Notes / Requirements
Note
The software included with this product supports a "typical" driver install only. Custom driver setup requires software purchase from a 3rd party
System and Cable Requirements
PCI Express enabled computer with an available PCI Express x1 slot or higher

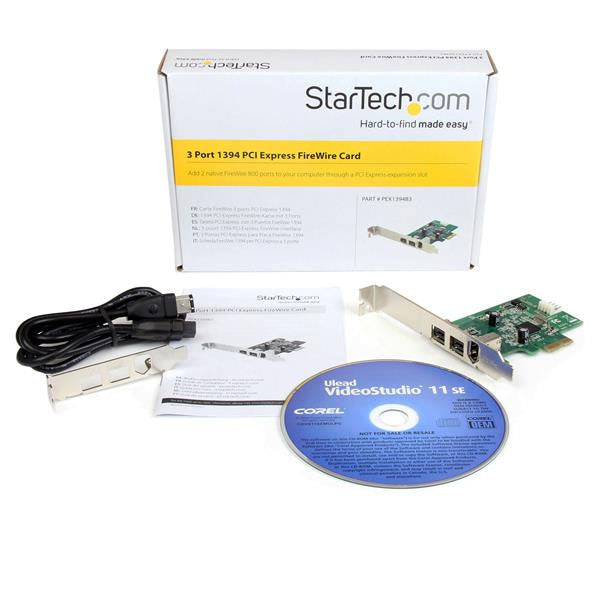

What's in the Box
Included in Package
FireWire cable
Instruction Manual
Low Profile Bracket
PCI Express FireWire Card
Software CD
Hardware
Interface
FireWire 400 (1394a)
Industry Standards
IEEE-1394/1394A/1394B
OHCI
PCI Express 1.1
Chipset ID
Texas Instruments - XIO2213B
Card Type
Standard Profile (LP bracket incl.)
Bus Type
PCI Express
Environmental
Storage Temperature
-20°C to 90°C (-4°F to 194°F)
Operating Temperature
0°C to 70°C (32°F to 158°F)
Humidity
0~90% RH
Connector(s)
Internal Ports
LP4 (4 pin, Molex Large Drive Power) Male
External Ports
FireWire 800 (9 pin, IEEE 1394b) Female
FireWire 400 (6 pin, IEEE 1394a) Female
Connector Type(s)
PCI Express x1 Male
StarTech 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter
