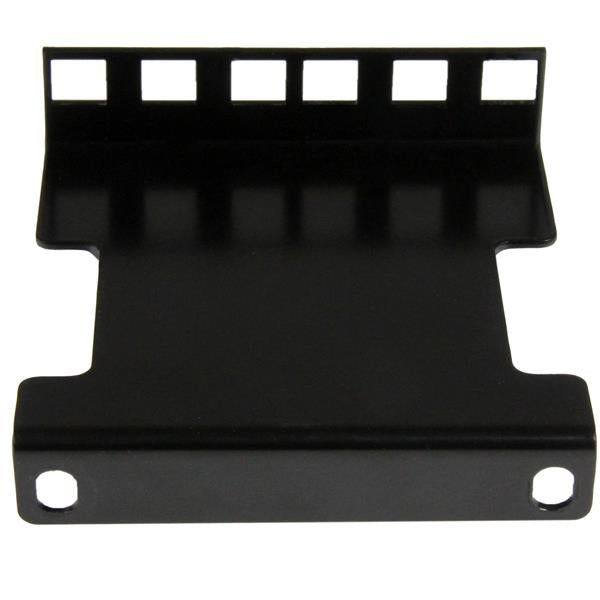

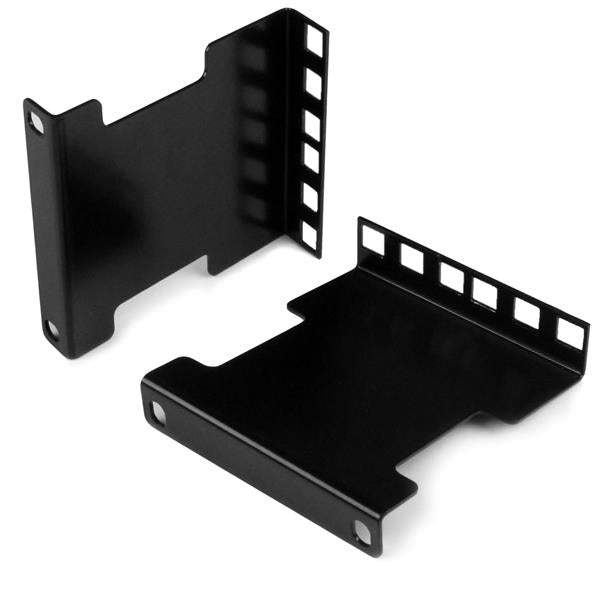

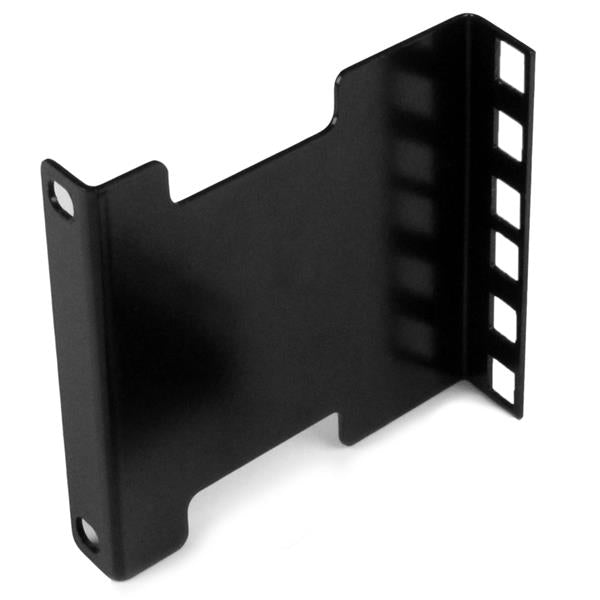

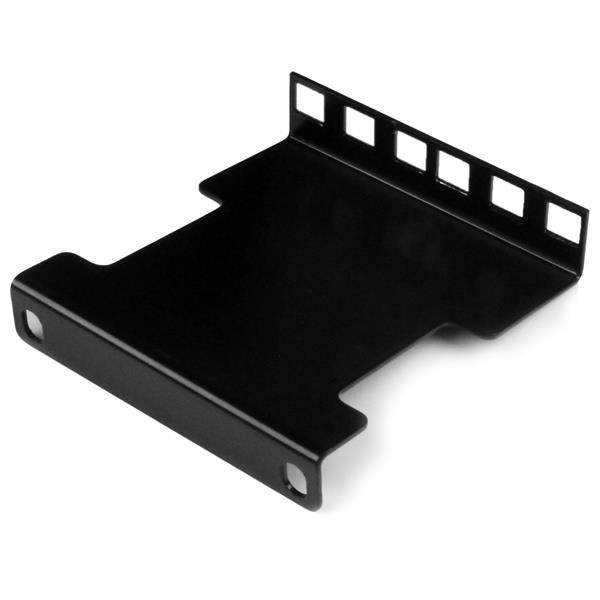

StarTech 2U Server Rack Depth Extender Adapter Kit - Recess / Extend 4
StarTech 2U Server Rack Depth Extender Adapter Kit - Recess / Extend 4
Description
• Four post installation network rack extender weight load of 130 lb. (59 kg)
• Includes cage nuts and screws for adapter and mounting rail
• Designed to mount equipment in front of the rail or behind the rail
• This rail depth adapter kit is backed by a 2 year warranty
In stock with supplier
Ships within 8 - 24 days
BANK TRANSFER (EFT)
In stock with supplier
Ships within 8 - 24 days
Accepted payment methods
Description
• Four post installation network rack extender weight load of 130 lb. (59 kg)
• Includes cage nuts and screws for adapter and mounting rail
• Designed to mount equipment in front of the rail or behind the rail
• This rail depth adapter kit is backed by a 2 year warranty
This server rack depth extender adapter kit extends or reduces the mounting depth of two units (2U) in your server rack by up to four inches. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Accommodate Varying Equipment Sizes
Mount equipment in your server rack up to four inches longer or shorter than the rack's mounting depth and increase your rack’s storage capabilities. If using the 2U rack extender in a two-post installation, they can support a total weight load of 20 lb. (9 kg) and in a four-post installation, they can support a total weight load of 130 lb. (59 kg).
Save Money
With this rail depth adapter kit, you can customize your server rack to support different mounting depths and consolidate your equipment into a single rack, eliminating the need to purchase different sized racks.
Easily Manage Cables
The network rack extender kit can also help manage your cables. You can mount equipment four inches from the rails, to prevent cables from protruding from the rack. You can also mount equipment with high-density cabling to minimize the effects of cable strain and provide easier access to the cables.
We offer a wide selection of products that help you to optimize your server rack storage space, to improve space efficiency, accessibility and convenience. This product is backed by a 2-year warranty and free lifetime North American based technical support.
| What's in the Box | |
| Included in Package | depth-adapter brackets |
| instruction manual | |
| 10-32 x 5/8 screws | |
| 10-32 cage nuts | |
| Prominence | |
| Description CDW 75 - 1st Line | StarTech.com 2U Server Rack Depth Extender Adapter Kit - Recess / Extend 4” |
| Physical Characteristics | |
| Product Width | 90 mm [3.5 in] |
| Product Weight | 257 g [9.1 oz] |
| Product Length | 113 mm [4.4 in] |
| Product Height | 25 mm [1 in] |
| Color | Black |
| Performance | |
| 4-Post Weight Capacity | 4-Post Weight Capacity: 130 lbs. [59 kg] |
| 2-Post Weight Capacity | 2-Post Weight Capacity: 20 lbs. [9 kg] |
| Packaging Information | |
| Shipping (Package) Weight | 294 g [10.4 oz] |
| Hardware | |
| U Height | 2U |
Four post installation network rack extender weight load of 130 lb. (59 kg)
Includes cage nuts and screws for adapter and mounting rail
TAA Complaint server rack adapter bracket reduce or extend your racks mounting depth by 4 inches
This rail depth adapter kit is backed by a 2 year warranty
Two post installation network rack extender weight load of 20 lb. (9 kg)
