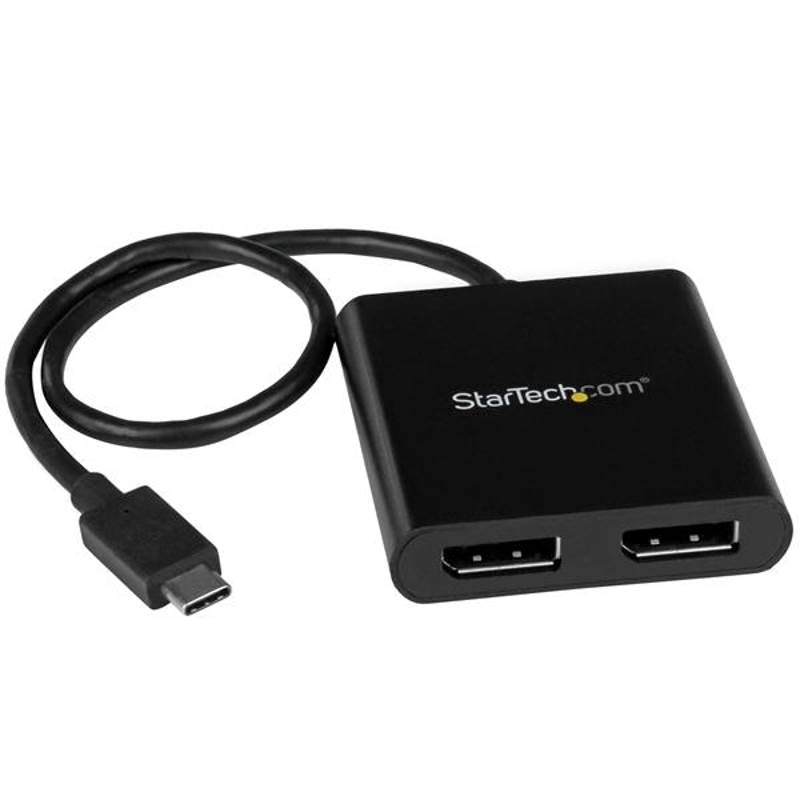

This MST hub lets you connect two DisplayPort monitors to your USB-C™ computer. MST works on any Windows® device with DP alt mode over USB Type-C™, such as models of Dell Precision™ and Dell XPS™ laptops. The MST hub is powered by the USB-C port, so you don't require an additional power adapter.

This adapter works with USB Type-C devices that pass a DisplayPort video signal and it’s also compatible with Thunderbolt™ 3 ports.

Increase your productivity with multiple monitors

The newest generations of laptops are more portable than ever. Unfortunately, this could mean that you’re left with fewer video outputs and confined to a small integrated screen. This MST hub solves these problems by letting you connect two independent displays to a USB-C port on your computer, which makes multitasking much easier.

Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display. This makes it easier to multitask and increase your productivity -- perfect for creating an easy-to-dock hot-desk solution with a wireless keyboard and mouse peripheral set.

The hub also lets you mirror the same image onto multiple displays, for remote viewing applications such as digital signage.

Astonishing picture quality that won’t drain your system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and offers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and CAD drawing.

Works with any monitor, television or projector

With this MST hub, you can use separate DP video adapters to connect HDMI, VGA or DVI displays, for compatibility with all of your existing monitors. The hub supports DP 1.2 enabled systems, for seamless integration with your existing video equipment.

The MSTCDP122DP supports plug-and-play installation for a hassle-free setup and is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Notes:

• Your USB-C equipped device must support video (DP alt mode) to work with this adapter.


• MST shares 21.6Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.

  Average resolution bandwidth allocation
  1920x1080 (High-definition 1080p) @60hz - 22%
  1920x1200 @60hz - 30%
  2560x1440 @60hz - 35%
  2560x1600 @60hz - 38%
  3840 x 2160 (Ultra HD 4K) @30hz - 38%

  Exceeding 100% will reduce functionality.

Connector(s)

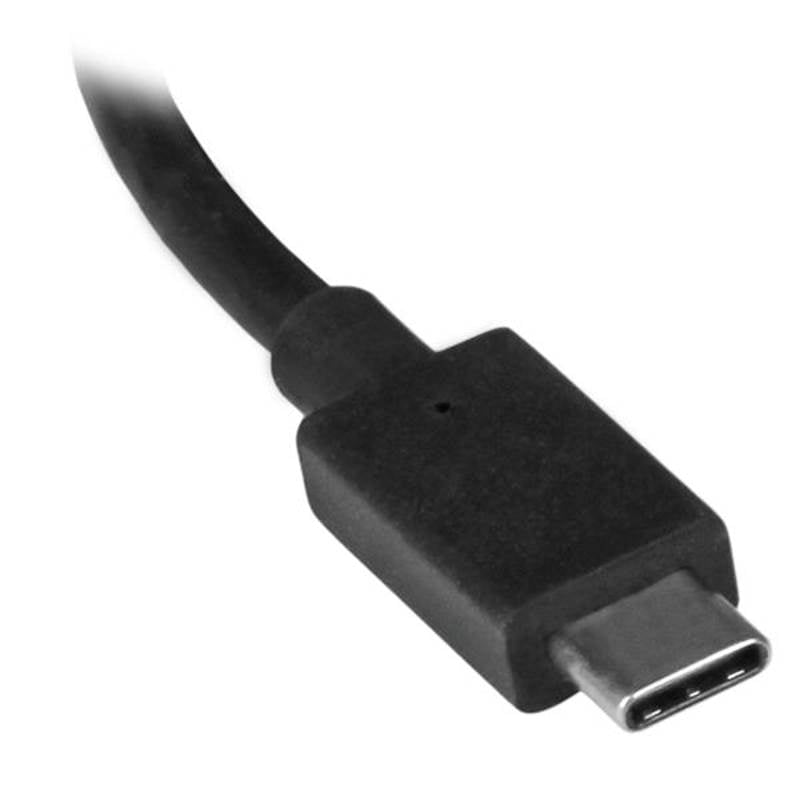

Connector A	USB-C (24 pin) DisplayPort Alt Mode Male Input

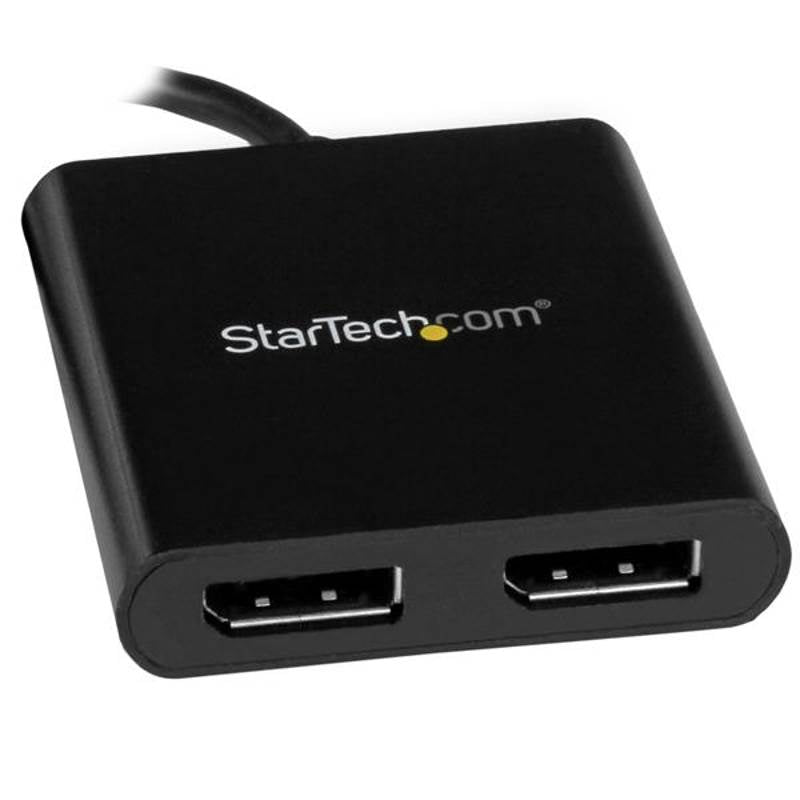

Connector B	DisplayPort (20 pin) Female Output
Environmental
Humidity	50-90%
Operating Temperature	5°C to 35°C (41°F to 95°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Hardware
Audio	Yes
AV Output	DisplayPort
Chipset ID	MegaChips - STDP4320 VIA/VLI - VL100
Ports	2
Packaging Information
Shipping (Package) Weight	0.1 kg [0.3 lb]
Performance
Maximum Digital Resolutions	3840x2160 @ 30hz
Supported Resolutions	Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Average resolution bandwidth allocation 1920x1080 (High-definition 1080p) @60hz - 22% 1920x1200 @60hz - 30% 2560x1440 @60hz - 35% 2560x1600 @60hz - 38% 3840 x 2160 (Ultra HD 4K) @30hz - 38% Note: Exceeding 100% will reduce functionality.
Wide Screen Supported	Yes
Physical Characteristics
Color	Black
Product Height	14 mm [0.6 in]
Product Length	62 mm [2.4 in]
Product Weight	44 g [1.6 oz]
Product Width	58 mm [2.3 in]
Power
Power Source	USB-Powered
Software
OS Compatibility	Microsoft Windows® 10, 8/8.1, 7
Special Notes / Requirements
Note	DisplayPort 1.2 with MST+HBR2 support from the GPU is required for independent display output
What's in the Box
Included in Package	MST hub
	quick-start guide

Dual 4K 30Hz or 2x 1080p 60Hz DisplayPort monitors | DP 1.2/HBR2/MST Hub | Works w/ Thunderbolt 3
Multi Stream Transport hub works w/Dell XPS Precision Latitude/Lenovo ThinkPad X1 Carbon Extreme/Surface Laptop 3 Book 3 Pro 7/HP ProBook EliteBook Spectre ZBook
No Drivers Windows/Linux | 1 cable
USB-C adapter for multiple monitors works w/USB Type-C DP Alt-Mode Windows PCs to connect up to 2 independent displays
Video splitter increases productivity by adding extended/mirrored screens
