This MST hub lets you connect two monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop. It’s USB powered, so the only thing you'll need to operate the hub is your computer.

Increase productivity with multiple screens

The newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect two additional displays to your computer, which makes multitasking much easier.

Connect to any display

With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. The hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.

Configure your displays for any environment

Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.

Enjoy amazing video quality, without draining system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.

Note: When using a DisplayPort 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays. Resolution limitations apply.

The MSTDP122DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Average resolution bandwidth allocation

1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%

Note: Exceeding 100% will reduce functionality.

Connector(s)

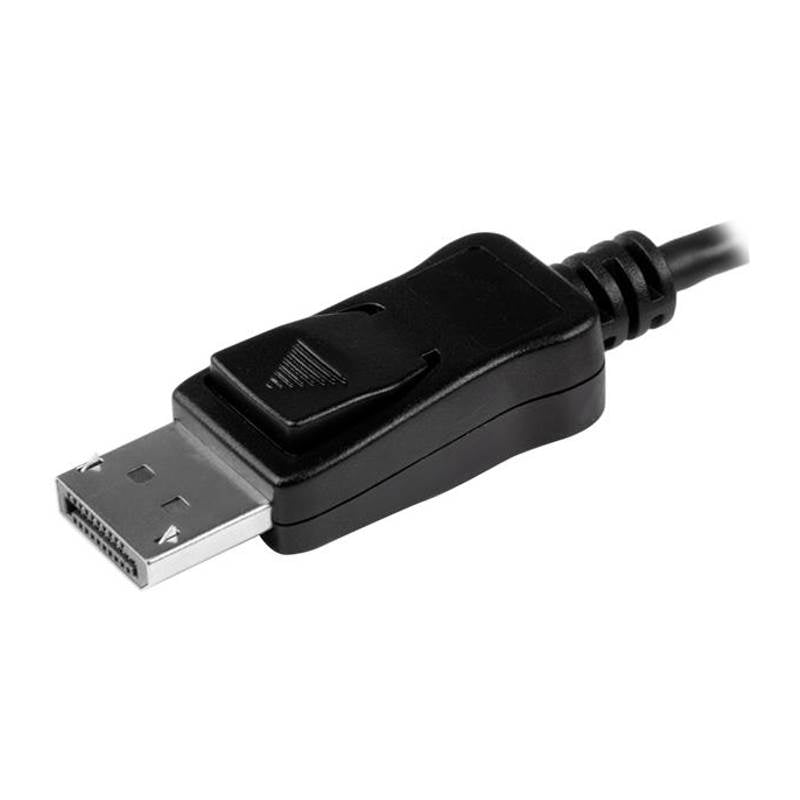

Connector A	DisplayPort (20 pin) Receptacle Input

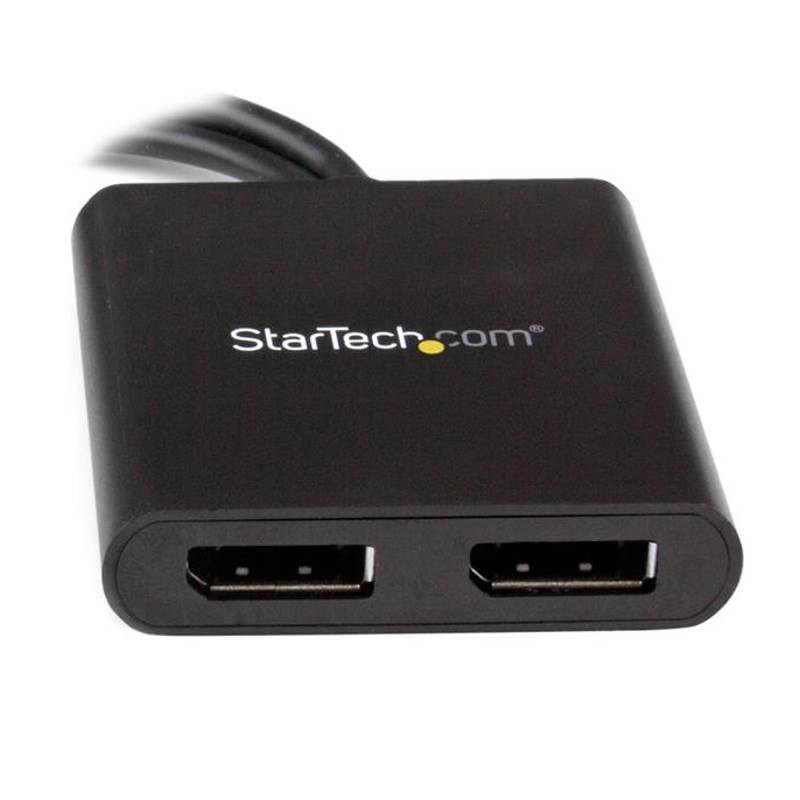

Connector B	DisplayPort (20 pin) Female Output
Environmental
Humidity	50-90%
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Hardware
Active or Passive Adapter	Active
Audio	Yes
Chipset ID	MegaChips - STDP4320
Ports	2
Packaging Information
Shipping (Package) Weight	0.2 kg [0.3 lb]
Performance
Maximum Digital Resolutions	3840 x 2160 @30hz
Supported Resolutions	1024x768 1280x720 (High-definition 720p) 1920x1080 (High-definition 1080p) 1920x1200 2560x1440 2560x1600 3840 x 2160 (Ultra HD 4K) @30hz
Wide Screen Supported	Yes
Physical Characteristics
Color	Black
Enclosure Type	Plastic
Product Height	14 mm [0.6 in]
Product Length	62 mm [2.4 in]
Product Weight	61 g [2.2 oz]
Product Width	58 mm [2.3 in]
Power

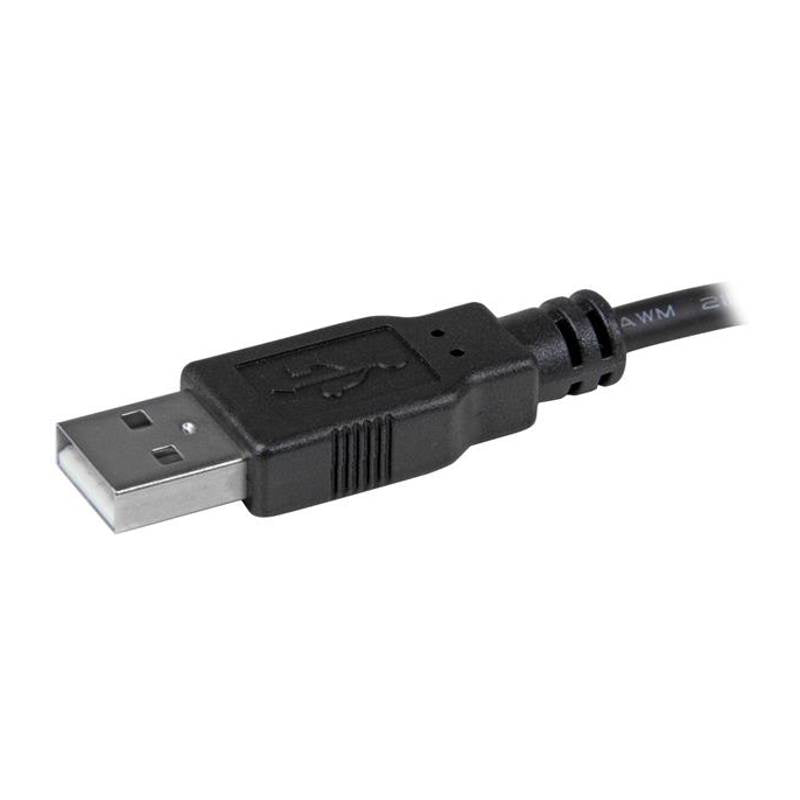

Power Source	USB-Powered
Software
OS Compatibility	Windows 10 (32/64) Windows 8/8.1 (32/64) Windows 7(32/64)
Special Notes / Requirements
Note	DisplayPort 1.2 with MST+HBR2 support from the GPU is required for independent display output

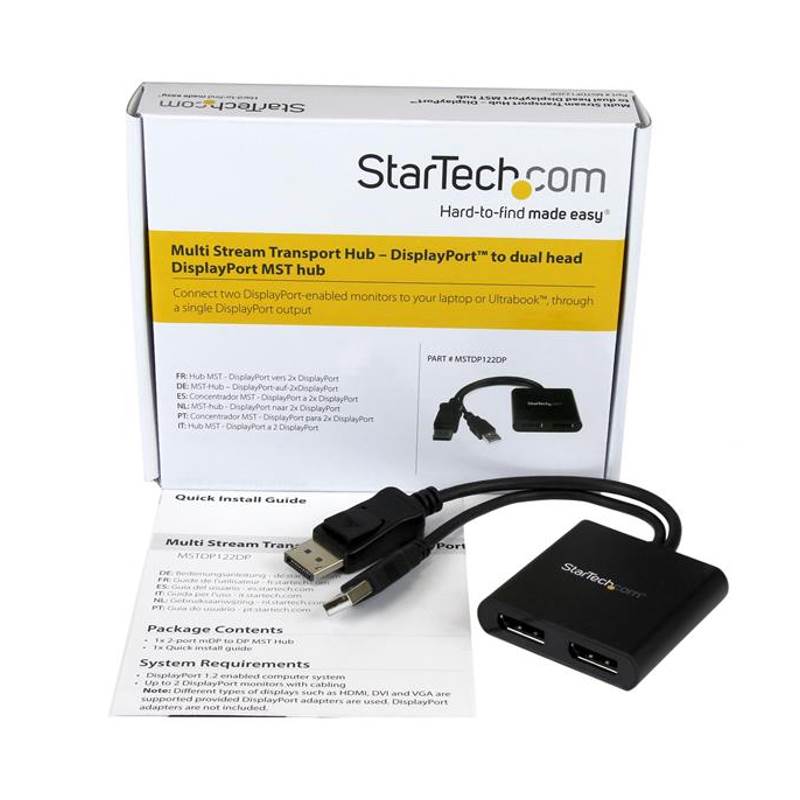

What's in the Box
Included in Package	2-port DP MST Hub
	Quick install guide

2-Port DisplayPort multi-monitor adapter drives dual 4K 30Hz or 2x 1080p 60Hz DP displays w/no video compression
MST hub/video splitter for multiple monitors increases productivity by extending your desktop
Multi Stream Transport hub works w/ computer brands like HP Dell Lenovo AMD/Nvidia/Intel video cards | Supports laptops/desktop PCs or graphics cards w/ DP 1.2 (MST and HBR2)
No drivers; Works w/ Windows only
USB bus-powered | Latching DP connector | Built-in cables for power/video
