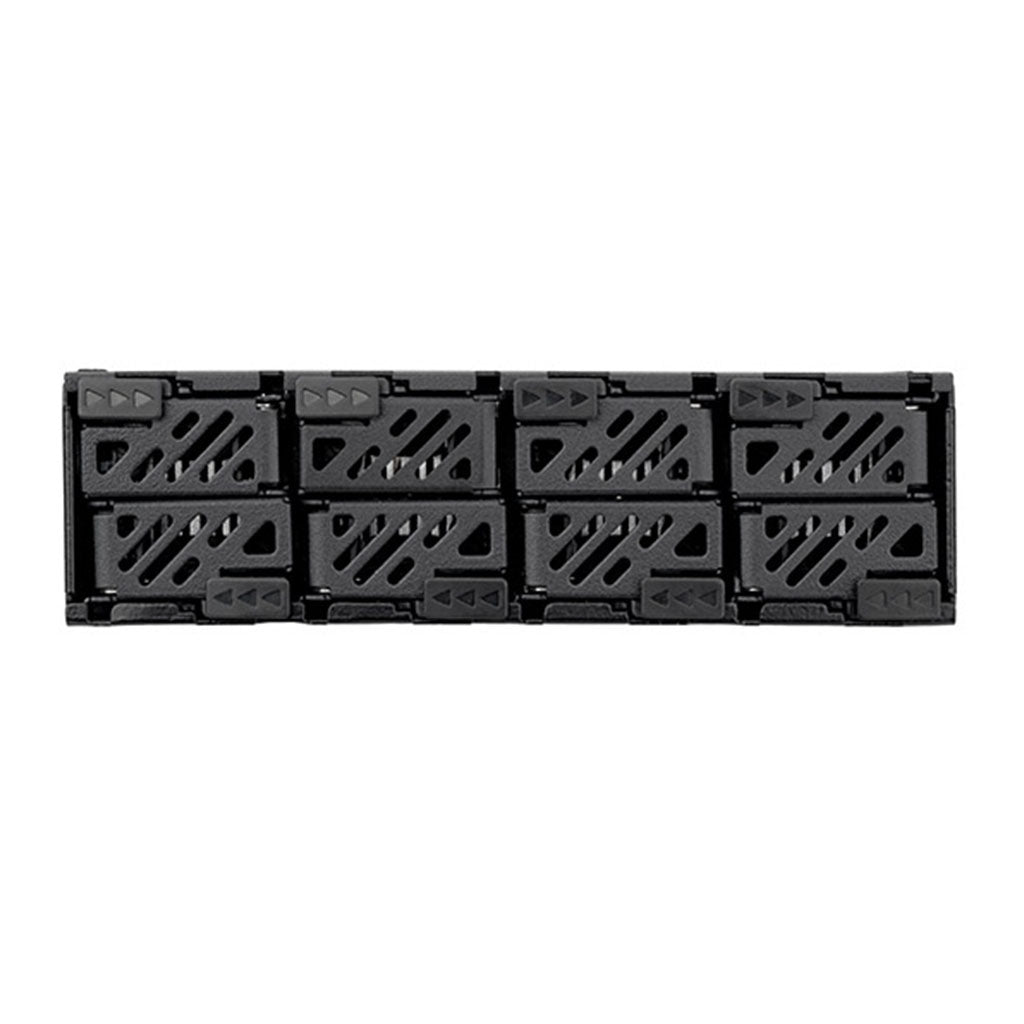

SilverStone FSM08B-MS Single 5.25" Drive Bay to 8x PCIe NVMe M.2 SSD Hot Swap Enclosure
SilverStone FSM08B-MS Single 5.25" Drive Bay to 8x PCIe NVMe M.2 SSD Hot Swap Enclosure
Description
• SilverStone FSM08B-MS Single 5.25" Drive Bay to 8x PCIe NVMe M.2 SSD Hot Swap Enclosure Material: Steel body, Stainless tray
• Form factor: 5.25 drive bay x 1
• PCIe NVMe M.2 SSD (NGFF) M Key x 8
• Transfer rate: up to 32Gbps
• Host interface: 8port SlimSAS 4i (SFF-8654) connector
• Power connector: SATA 15-Pin x 2
• LED indicator: Power ON: HDD Power LED: Blue, HDD Access: Green blinking
• SST-FSM08B-MS
• Form factor: 5.25 drive bay x 1
• PCIe NVMe M.2 SSD (NGFF) M Key x 8
• Transfer rate: up to 32Gbps
• Host interface: 8port SlimSAS 4i (SFF-8654) connector
• Power connector: SATA 15-Pin x 2
• LED indicator: Power ON: HDD Power LED: Blue, HDD Access: Green blinking
• SST-FSM08B-MS
$499.00
Sale price
$499.00
In stock with supplier
BANK TRANSFER (EFT)
$499.00
Sale price
$499.00
In stock with supplier
Accepted payment methods
Description
• SilverStone FSM08B-MS Single 5.25" Drive Bay to 8x PCIe NVMe M.2 SSD Hot Swap Enclosure Material: Steel body, Stainless tray
• Form factor: 5.25 drive bay x 1
• PCIe NVMe M.2 SSD (NGFF) M Key x 8
• Transfer rate: up to 32Gbps
• Host interface: 8port SlimSAS 4i (SFF-8654) connector
• Power connector: SATA 15-Pin x 2
• LED indicator: Power ON: HDD Power LED: Blue, HDD Access: Green blinking
• SST-FSM08B-MS
View Full Details
• Form factor: 5.25 drive bay x 1
• PCIe NVMe M.2 SSD (NGFF) M Key x 8
• Transfer rate: up to 32Gbps
• Host interface: 8port SlimSAS 4i (SFF-8654) connector
• Power connector: SATA 15-Pin x 2
• LED indicator: Power ON: HDD Power LED: Blue, HDD Access: Green blinking
• SST-FSM08B-MS
The motherboard or add-in card must support PCIe bifurcation to split PCIe x16/x8 slots into 4×4 or 4×2.
- Installs into a single 5.25" expansion bay and accommodates up to eight M.2 SSDs
- Supports PCIe NVMe (M-key) M.2 SSDs with 22mm width
- Supports M.2 SSD lengths of 30mm / 42mm / 60mm / 80mm / 110mm
- Tool-free M.2 SSD installation design for quick and easy installation and removal
- Features an oversized heatsink to effectively address the thermal challenges of high-speed M.2 SSDs
- Backplane features eight SlimSAS 4i (SFF-8654) interfaces, supporting PCIe 3.0/4.0 x4 with speeds up to 32/64Gbps
- Independent LED indicators for monitoring drive statuses
- Includes dual 40mm dual ball bearing fans to ensure stability and durability during long-term operation
- Supports hot-swap functionality (NVMe hot-swap support required on the motherboard or add-in card)
