Intel Xeon W-1000 Processors

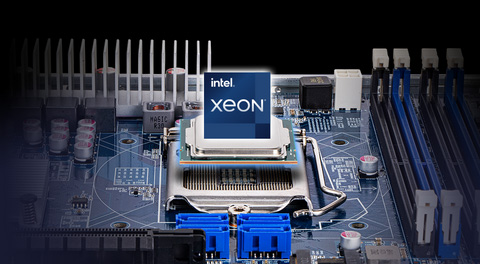

SW580R8 is equipped with the Intel W580 workstation chipset that supports Intel Xeon W-1000 series processor with up to 10 cores and 20 threads, delivering reliable performance, guaranteed compatibility and enhanced security. With Intel UHD Graphics integrated, SW580R8 can run 4K UHD resolution content.

*Xeon W-1300 series processor integrated with Intel UHD Graphics P750
Xeon W-1200 series processor integrated with Intel UHD Graphics P630

---

Supports ECC RAM (For Xeon Processors)

SW580R8 supports with error-correcting code ECC RAM*, help safeguard user’s important data by automatically finding and fixing soft memory errors that occur more often with faster CPU and memory speeds. Supports DDR4-3200 memory* with the max capacity of up to 128GB (32GBx4) in dual-channel mode

*ECC RAM for Intel Xeon series processors only
* The memory capacity depends on CPU differences.

---

Equipped with Quad LAN design

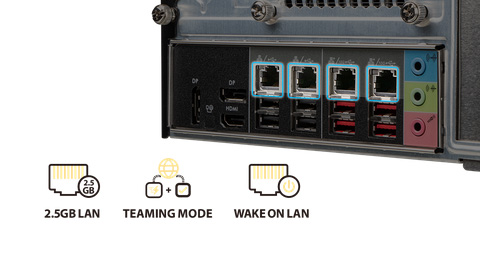

SW580R8 adopts a couple of Intel 1GbE LAN and RealTek 2.5GbE LAN as a speed-up and backup solution for workstation-related applications to strengthen the security and efficiency of big data transfer. Teaming mode is supported, stabilizing the network when issues happen on the user’s device by providing an additional backup network.

Additionally, SW580R8 is equipped with M.2 2230 E key that provides WLAN module and Bluetooth function to build a wireless environment.

---

Support for Intel vPro Platform

Intel vPro is a key feature for business-class performance, security features, manageability, and platform stability. This delivers compatibility that reduces the burden on your IT team and ceaseless threats from security attacks.

---

Incredible Storage Capacity

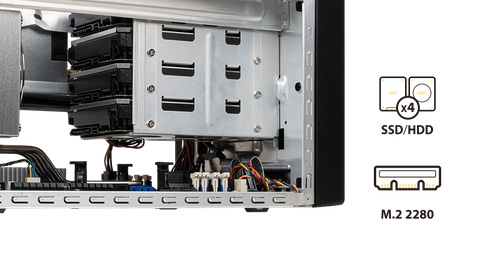

SW580R8 is available with four SATA 3.5 inch HDD or SSD, and it allows to expand up to eight 2.5 inch HDD or SSD*. With built-in M.2 PCIe 4.0 x4/SATA 2280, the model offers considerably faster storage performance. Thanks to Intel RST, SW570R8 is optimized for high performance, responsiveness, and reliability. It is ideal for applications such as NAS, file server, and media workstation which demand a responsive, safe, and reliable storage solution.

*Have to install and configure RAID drives

---

Speedy Transmission interface with USB 3.2 Gen2

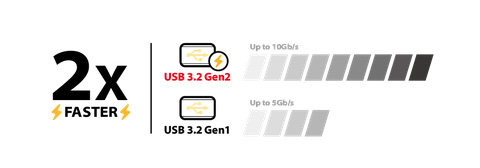

SW580R8 is equipped with four native USB 3.2 Gen 2, four USB 3.2 Gen 1 (includes one Type-C), and four USB 2.0. The latest USB version of USB 3.2 Gen 2 is 20 times faster than legacy USB 2.0, which will bring users a smooth experience when they use it for data transmission.

---

Superb PCI-E Scalability

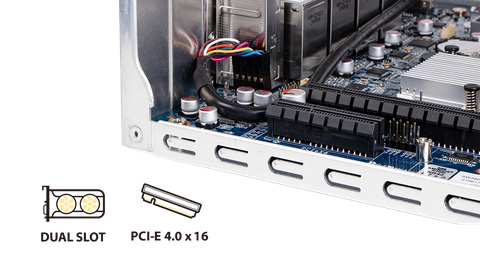

The SW580R8 provides one PCI-E4.0 x16 slot and one PCI-E3.0 x4 slot for multiple expansion cards support. Select the card you want to use, such as multi-display graphic cards, monitor cards, RAID cards, professional sound cards for video wall, file server, network video recorder, and more applications.

*Supports up to 280mm(L) x 120mm(H) x 40mm(D)

---

Triple Display Productivity

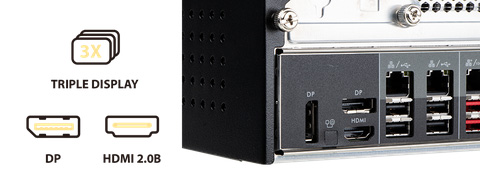

The SW580R8 features an HDMI 2.0b, which supports 4k 50/60hz, 18Gbps bandwidth and HDR-ready, and dual DisplayPort 1.4 ports that overall drive up to three independent displays, delivering incredible clarity for maximum productivity.

---

Integrated Cooling Engine

Shuttle's industry-leading I.C.E. heat pipe technology delivers efficient cooling and is exceptionally quiet to ensure proper airflow inside such a small case.

---

80 PLUS Gold Certified

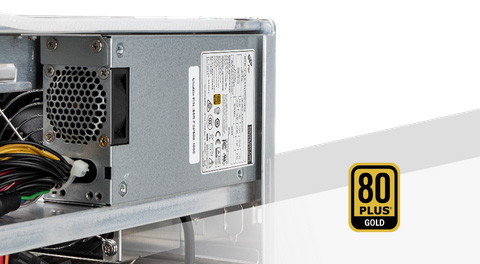

The SW580R8 is equipped with an 80 PLUS Gold 500W power supply for guaranteed energy efficiency and energy saving. At high efficiencies, there is less power wastage which translates to operational benefits.

---

Operating System Support

- Windows 11 64bit
- Windows 10 64bit
- Linux

---

FORM FACTOR	Shuttle Form factor
PROCESSOR	Support Intel® 10th/11th generation Core™ i3/i5/i7, Pentium®, Celeron®125W LGA1200 CPU Support Intel Intel® Xeon® W-1000 series 125W CPU
CHIPSET	Intel W580 express chipset
MEMORY	(4) DDR4 3200 MHz(11th CPU only) / 2933MHz / 2666MHz support, dual channel up to 128GB (32GB*4)
VIDEO OUTPUT	(1)HDMI + (2)DisplayPort , triple independent display 4K/60Hz playback (With Integrated Graphic in CPU)
AUDIO	Realtek ALC662/ALC897 5.1 Channel high definition audio
ETHERNET	Intel i211AT + i219 10Mb/s,100Mb/s,1Gb/s operation Realtek RTK8125b (2) 10Mb/s,100Mb/s,1Gb/s , 2.5Gb/s operation Support Wake-On-LAN function Support Teaming function
STORAGE INTERFACE	SATA 6.0Gb/s interface
ONBOARD CONNECTORS	(2)4 Pin fan connector (4)SATA 6 connector (1) ATX main power (2*10) (1) ATX 12V power (2*2) (1) 1X4 USB 2.0 header (1) RS232 header (1) VGA header (1) Front AUDIO header (2) Front USB FFC header
FRONT PANEL	(3) USB 3.2 Gen 1 Port (1) USB 3.2 Gen 1 type-C Port (1) Microphone-In (1) SPK-Out (1) Power LED (1) HDD LED (1) Power-On button
BACK PANEL	(4) USB 2.0 Port (4) USB 3.2 Gen 2 Port (4)LAN (1)HDMI port (2)Display port (1)Audio Mic in (1)Audio Line in (1)Audio SPK out (1) 4-pin connector (supports external power/clear CMOS buttons) (3)Antenna Hole
DRIVE BAYS	(4) 3.5"/2.5" HDD bay
DIMENSIONS	332(L) x 216(W) x 198(H) mm
POWER	80 Plus 500W power supply Input: AC100V-240V,60Hz-50Hz,8A-4A Support 80 PLUS Gold
ACCESSORIES	XPC Multi-Language quick guide XPC DVD Driver SATA Cable CPU Thermal Grease Power cord Screw package
EXPANSION SLOT	(1) PCI-E X16 Gen 4.0 slot (1) PCI-E X4 Gen 3.0 slot (2) M.2 2280 type M key socket *10th Gen CPU: One supports SATA & NVMe, another supports SATA only *11th Gen CPU: Both support SATA & NVMe (1) M.2 2230 type E key socket
OS SUPPORT	Windows 10/11 64bit OS Linux
CERTIFICATION	Safety certification : CB , BSMI , cTUVus EMI certification : FCC , CE , BSMI , RCM , VCCI
OPERATING TEMPERATURE	0?~40?

1x PCI-E X16 Gen 4.0
1x PCI-E X4 Gen 3.0
2x M.2 2280 M Key
1x M.2 2230 E Key
4x 3.5"/2.5" HDD bay
4x DDR4 3200 MHz(11th CPU only)/2933MHz/2666MHz support
dual channel up to 128GB (32GB*4)
80 Plus 500W PSU
Intel i211AT + i219 Gigabit LAN
Intel W580 express chipset
Realtek 5.1 HD Audio
Shuttle Form Factor
Shuttle SW580R8 XPC Cube Barebones Mini PC
Supports Intel 10th/11th gen Core i3/i5/i7
Pentium
Celeron 125W LGA1200 CPU
Intel Xeon W-1000 series 125W CPU
SW580R8
