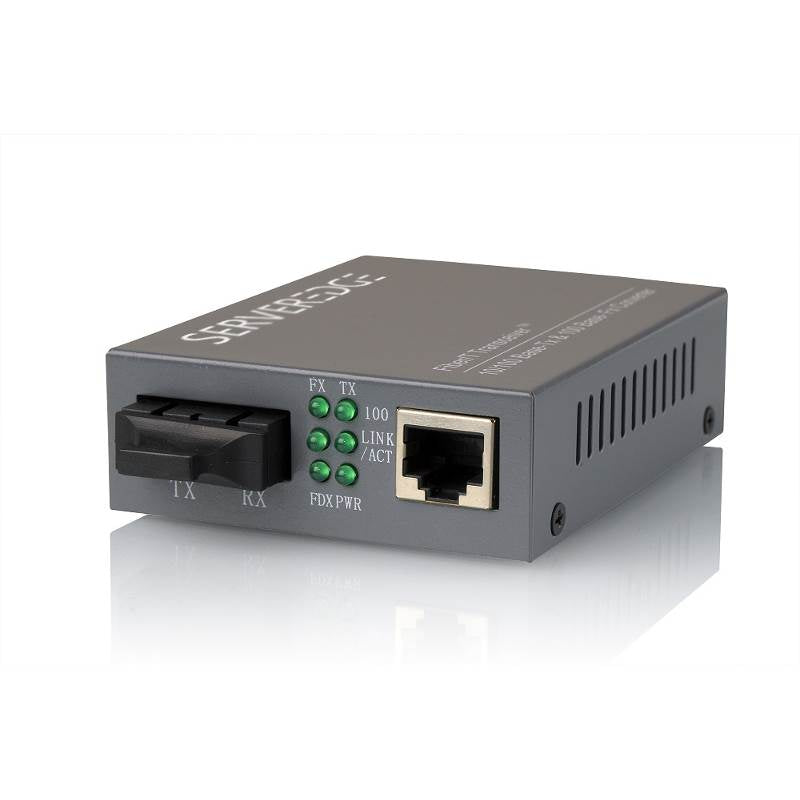

Serveredge 10/100BaseTX to 100BaseFX Singlemode SC Fibre (20km)

PRODUCT DESCRIPTION

The Serveredge SED-100SSC-20 fibre media converter allows you to connect your copper infrastructure to the fibre channel and vice versa. The built-in 10/100 switch enables the fiber cable connection to operate at 100 Mbps connected to either a 10BaseT or a 100BaseTX network, while remaining completely 100BaseFX standard-compliant.

Fiber connection can also operate in full duplex mode whether the RJ-45 port is connected to a full duplex switch or a half duplex hub, with the built-in switch providing the network segmentation that permits the maximum fiber distance. Each Media Converter provides a 10/100BaseT/TX auto-negotiating RJ-45 twisted-pair connector port featuring store-and-forward switching architecture. Auto-MDIX capability on the twisted-pair port allows for convenient connections.

PRODUCT SPECIFICATION

PERFORMANCE

• Latency: < 4.2 μs (LIFO)
• Throughput @ 100Base: 148,809 pps (64-byte packets)
• Speed:
• 100BaseTX: 100/200 Mbps for half/full duplex
• 10BaseT: 10/20 Mbps for half/full duplex
• Switching Method: Store-and-Forward
• Maximum MAC Addresses: 1,024 entries
• Memory: 256 KB

FIBER INTERFACE, SINGLEMODE MODELS

• Type: MQW Laser
• Wavelength: 1300 nm nominal (1260 nm maximum, 1360 nm minimum)
• Maximum Output Power: -7.0 dBm
• Minimum Output Power: -15.0 dBm
• Sensitivity: -34.0 dBm
• Maximum Input Power: -7.0 dBm
• Link Power Budget: 19.0 dB

PHYSICAL CHARACTERISTICS

• Case dimensions: 110mm x 81mm x 23mm
• Weight: 150 grams

ENVIRONMENTAL CHARACTERISTICS

• Operating Temperature: 32°F ~ 104°F (0°C ~ 40°C)
• Storage Temperature: -13°F ~ 158°F (-25°C ~ 70°C)
• Relative Humidity: 10 ~ 90%, non-condensing

POWER

• External power adapter: 12 Volts DC; 600 mA
• Power Consumption: 5 Watts Maximum

PRODUCT FEATURE

• Built -In Twisted-Pair Port 10/100 Switch
• Auto-Negotiation RJ45 Connector with Auto-MDIX
• SC,ST,MTRJ or LC Connector
• LEDs for Functions, Links & Activity
• Link Fault Signaling For Use with Managed Switches
• 1024 Mac Address Capacity
• Store and Forward Architecture
• Full and Half Duplex Operation
• Singlemode Spans up to 100Km
• Wall or Chassis Mountable
• IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX & IEEE 802.3u 100BaseFX Compliant
• Compliant to FCC part 15 Class A, CISPR Class A, VCCI Class A, CE Mark, CTick
• Lifetime Warranty
