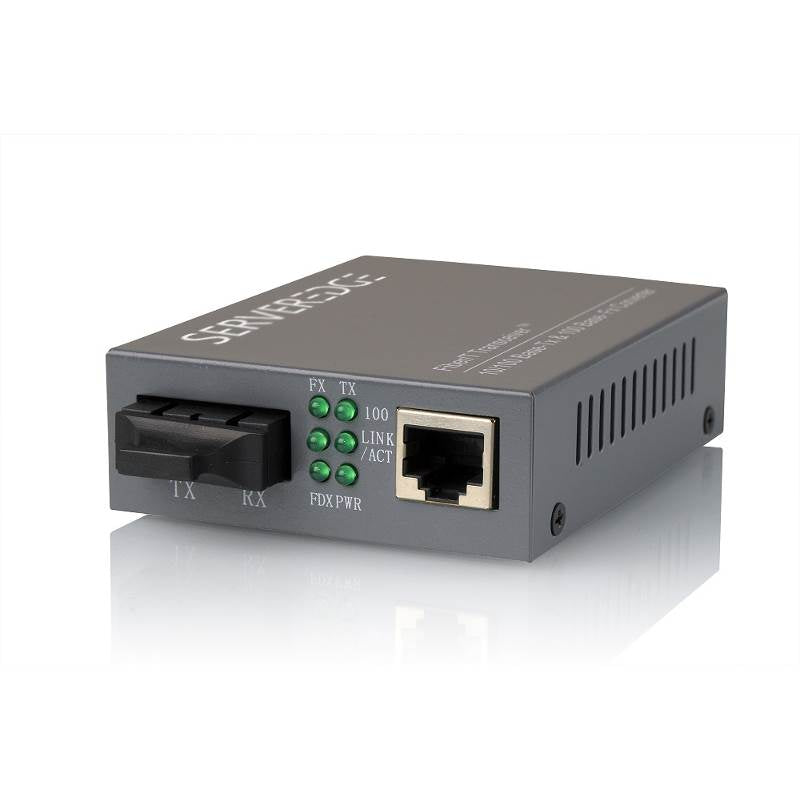

Serveredge 10/100BaseTX to 100BaseFX Multimode ST Fibre (2km)

PRODUCT DESCRIPTION

The Serveredge SED-100MST fibre media converter allows you to connect your copper infrastructure to the fibre channel and vice versa. The built-in 10/100 switch enables the fiber cable connection to operate at 100 Mbps connected to either a 10BaseT or a 100BaseTX network, while remaining completely 100BaseFX standard-compliant.

Fiber connection can also operate in full duplex mode whether the RJ-45 port is connected to a full duplex switch or a half duplex hub, with the built-in switch providing the network segmentation that permits the maximum fiber distance. Each Media Converter provides a 10/100BaseT/TX auto-negotiating RJ-45 twisted-pair connector port featuring store-and-forward switching architecture. Auto-MDIX capability on the twisted-pair port allows for convenient connections.

PRODUCT SPECIFICATION

LED INDICATORS

• Per Unit: Power status, RJ-45 port speed
• Per Port: LNK/ACT, FDX/COL
• Six LEDs total

PERFORMANCE

• Latency: < 4.2 μs (LIFO)
• Throughput @ 100Base: 148,809 pps (64-byte packets)
• Speed:
  • 100BaseTX: 100/200 Mbps for half/full duplex
  • 10BaseT: 10/20 Mbps for half/full duplex
• Switching Method: Store-and-Forward
• Maximum MAC Addresses: 1,024 entries
• Memory: 256 KB

FIBER INTERFACE, MULTIMODE MODELS

• Type: LED
• Wavelength: 1300 nm nominal (1270 nm maximum, 1380 nm minimum)
• Maximum Output Power: - 14.0 dBm
• Minimum Output Power: - 20.0 dBm
• Sensitivity: -33.0 dBm
• Maximum Input Power: - 8.0 dBm
• Link Power Budget: 13.0 dB

PRODUCT FEATURE

• Built-In Twisted-Pair Port 10/100 Switch
• Auto-Negotiation RJ45 Connector with Auto-MDIX
• SC,ST,MTRJ or LC Connector
• LEDs for Functions, Links & Activity
• Link Fault Signaling For Use with Managed Switches
• 1024 Mac Address Capacity
• Store and Forward Architecture
• Full and Half Duplex Operation
• Singlemode Spans up to 100Km
• Wall or Chassis Mountable
• IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX & IEEE 802.3u 100BaseFX Compliant
• Lifetime Warranty
