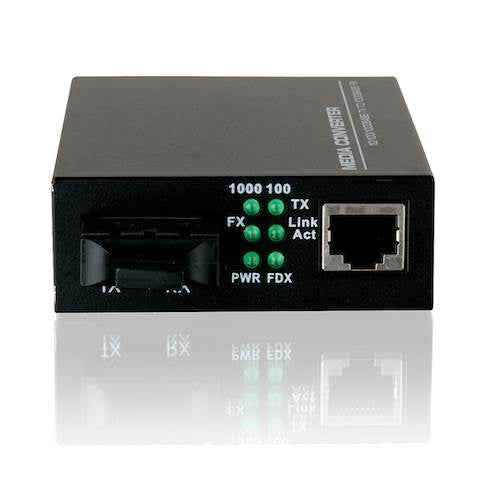

Serveredge 10/100/1000BaseTX to 1000BaseFX Multimode SC Fibre (550m)

PRODUCT DESCRIPTION

The Serveredge Gigabit Media Converter SED-1000MSC(550m) allows you to transparently connect your Gigabit Copper cabling system (10Base-T,100Base-TX or 1000Base-T) with the fibre optic cabling system(1000Base-FX). This media converter provides a long distance connection between legacy 10BaseT and 100BaseTX networks and the 1000Base Gigabit Ethernet networks.

The SED-1000MSC(550m) incorporates advances features such as Auto-Negotiation, Auto-MDIX,Link Pass- Through, Fibre Fault Alert & loop back . This Unit can be used as a standalone unit or as a slide in module in a 14 slot Media Converter Chassis.

PRODUCT SPECIFICATION

PERFORMANCE

• Latency: < 4.2 μs (LIFO)
• Throughput @ 100Base: 148,810 pps (64-byte packets)
• Throughput @ 1000Base: 1,488,110 pps (64-byte packets)

FIBER INTERFACE, MULTIMODE MODELS

• Type: Laser Diode
• Wavelength: 850 nm nominal
• Maximum Output Power: - 4.0 dBm
• Minimum Output Power: - 9.5 dBm
• Sensitivity: -13.5 dBm
• Maximum Input Power: - 13.5 dBm
• Link Power Budget: 4.0 dB

PHYSICAL CHARACTERISTICS

• Case dimensions: 110mm x 81mm x 23mm
• Weight: 150 grams

ENVIRONMENTAL CHARACTERISTICS

• Operating Temperature: 32°F ~ 104°F (0°C ~ 40°C)
• Storage Temperature: -13°F ~ 158°F (-25°C ~ 70°C)
• Relative Humidity: 10 ~ 90%, non-condensing

POWER

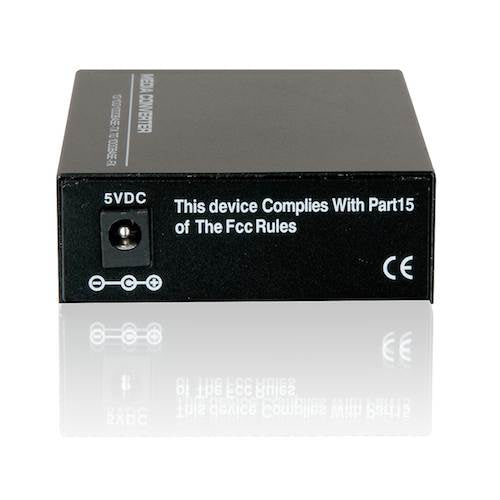

• External power adapter: 12 Volts DC; 600 mA
• Power Consumption: 5 Watts Maximum

PRODUCT FEATURE

• Built - In Twisted - Pair Port 10/100/1000 Switch
• Auto- Negotiation RJ45 Connector with Auto-MDIX
• SC,ST,MTRJ or LC Connector
• LEDs for Functions, Links & Activity
• Link Fault Signaling For Use with Managed Switches
• 1024 Mac Address Capacity
• Store and Forward Architecture
• Singlemode Spans up to 120Km
• Wall or Chassis Mountable
• IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX & IEEE 802.3ab 100BaseT Compliant
• Compliant to FCC part 15 Class A,CE Mark, CTick
• Lifetime Warranty
