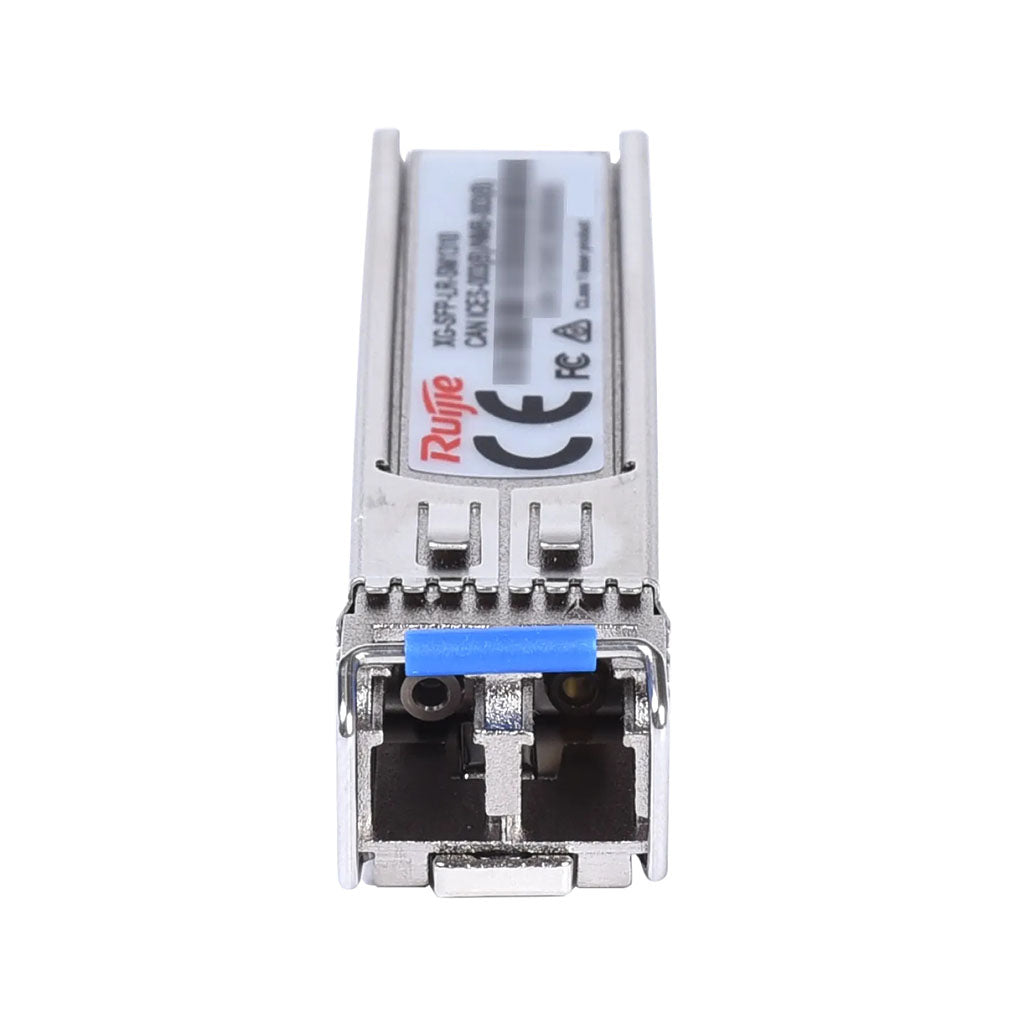

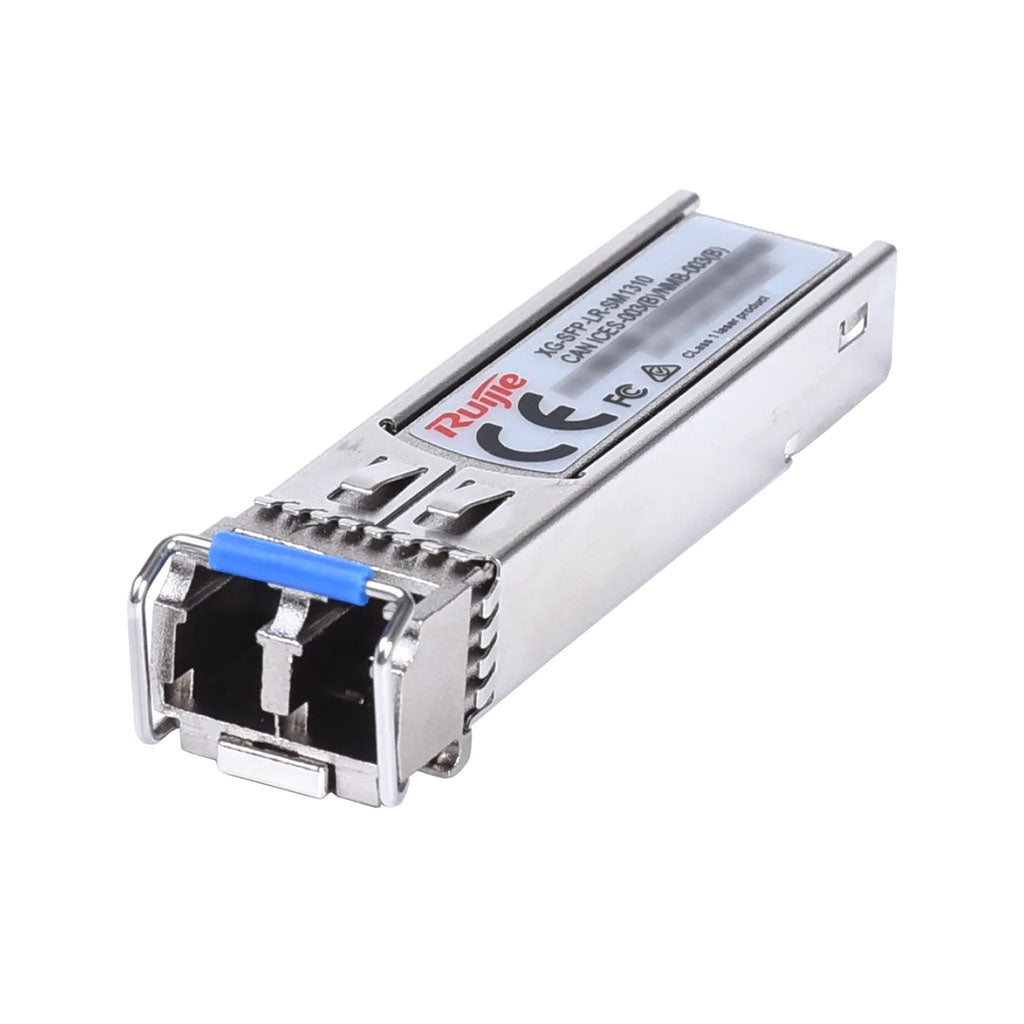

Ruijie XG-SFP-LR-SM1310 SFP+ 10GBASE-LR LC Transceiver Module

The XG-SFP-LR-SM1310 is aligned to IEEE 10GBASE-LR optical specifications and supports a link length of up to 10 kilometers over a single-mode fiber (SMF) with an LC connector. It adopts the SFP+ form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3ae, SFF-8431, SFP+ MSA, and RoHS standards.

Optical Module Specifications

Data rate: 10.3125 Gbps
Form factor: SFP+
Connector type: Duplex LC
Cable type: SMF
Fiber end face finish type: Ultra Physical Contact (UPC)
Transmitter type: DFB
Receiver type: PIN
Reach: 10 km (32,808.40 ft.)
Bit error ratio (BER): 1.00E-12
Data diagnosis-capable (DDM/DOM): Yes
Power consumption: ≤ 1.5 W

Transmitter Optical Parameters

Wavelength: 1310 nm
Max. transmit power (AVG): 0.5 dBm
Min. transmit power (AVG): -8.2 dBm
Min. extinction ratio: ≥ 3.5 dB

Receiver Optical Parameters

Receive sensitivity (OMA): < –12.6 dBm
Overload optical power (AVG): 0.5 dBm

Environment and Reliability

Operating temperature: 0°C to 70°C (32°F to 158°F)
Operating humidity: 10% RH to 90% RH
Storage temperature: –40°C to +85°C (–40°F to +185°F)
Storage humidity: 10% RH to 90% RH

Dimensions and Weight

Dimensions (W x D x H): 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.)
Weight: 35 g (0.08 lbs.)
