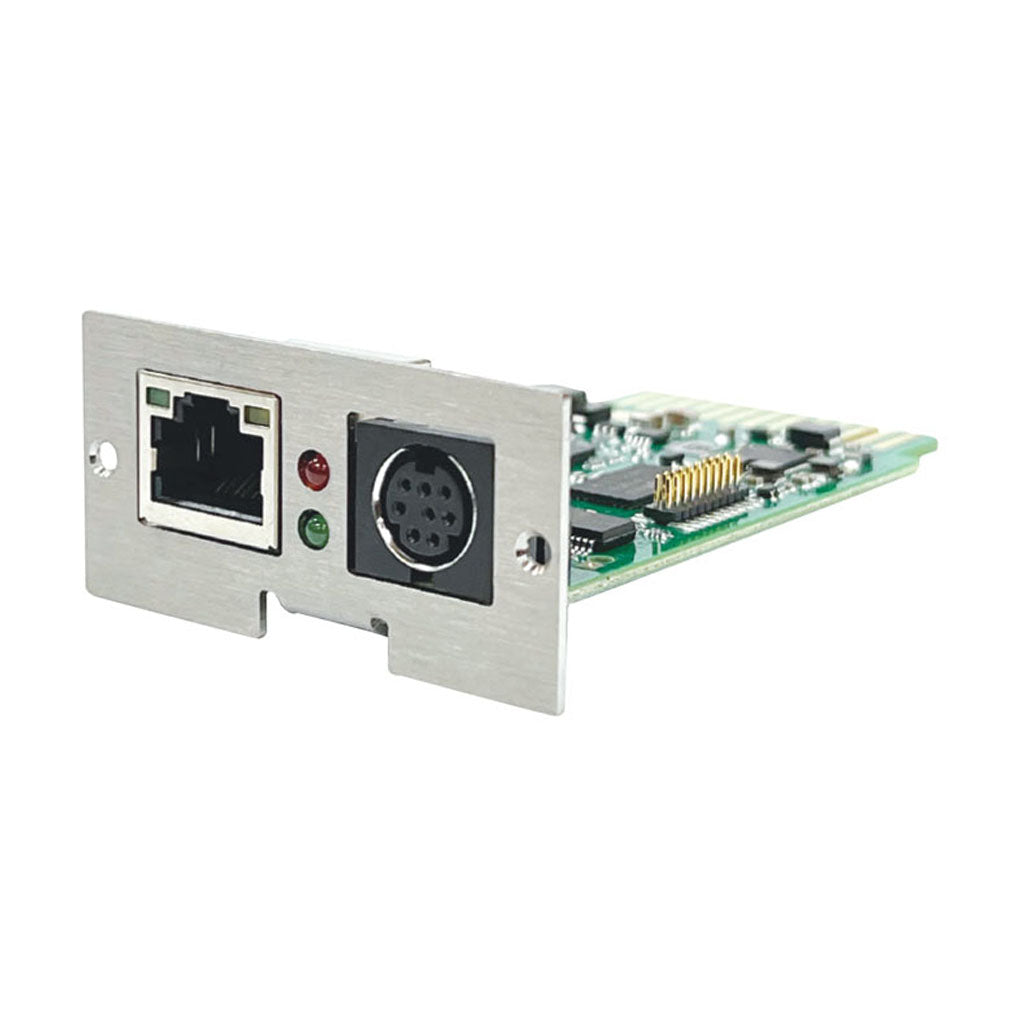

PowerShield PSCSSNMP Cyber Secure SNMP/Web Card

SPECIFICATIONS:

Model Number:PSCSSNMP

Power consumption: 12V (min. 9V, max. 30V DC), 150 mA

Network / LAN: 10/ 100Mbit Base-T auto sense

RS-232 Interface: 2

RS-485 Interface: COM2 MINIDIN connector for RS232

USB Interface: Optional separate card

AUX Interface: not supported on cs141 Mini card

MODBUS over IP: Standard

BACnet over IP: Standard

Remote Syslog: Standard

Radius Server support: Standard

Status LED’s: Green LED

MIB file available: Red LED

Dimension L x W x H (mm): 42 x 80 x 26mm

Net Weight: 36g

Temperature: 0–70°C

Storage: 0–70°C

Max. operating ambient Temperature: 55°C

CPU: Cortex A8 800 MHz

Flash Memory: 512 MB

RAM: 128 MB DDR3 RAM

Humidity: 20-95%, not condensing

Certification: CE, UL/NEMKO

MTBF (EN/IEC 61709): 916.028 hours (104.6 years)

Standard Warranty: 2 Years
