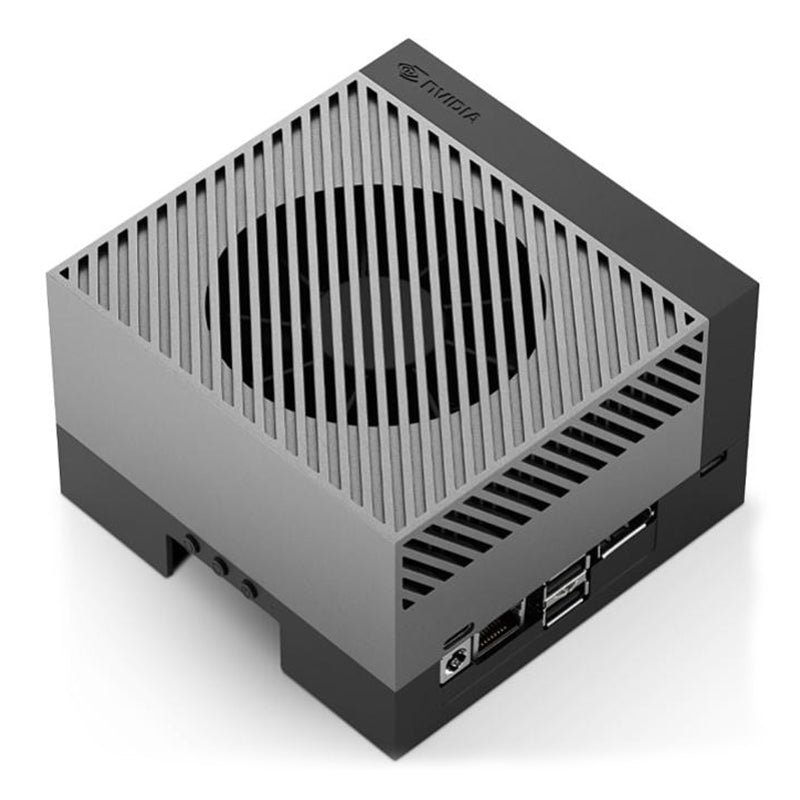

NVIDIA Jetson Orin AGX 64GB Developer Kit

The Future of Industrial-Grade Edge AI

Bring your next-gen products to life with the world’s most powerful AI computers for energy-efficient autonomous machines. NVIDIA Jetson Orin modules give you up to 275 trillion operations per second (TOPS) and 8X the performance of the last generation for multiple concurrent AI inference pipelines, plus high-speed interface support for multiple sensors. With seven different modules based on the same architecture–from the entry-level Jetson Orin Nano to the highest performance Jetson AGX Orin– this is the ideal family for a new age of robotics.

Accelerate Application Development and Prototyping With Jetson Orin Developer Kits

Two developer kits are available to get you started developing and prototyping your next product. The compact Jetson AGX Orin Developer Kit offers maximum performance, but can also emulate any of the Jetson Orin modules. The Jetson Orin Nano Developer Kit is even smaller, and includes a reference carrier board compatible with all Orin NX and Orin Nano modules.

Specifications

AI Performance: 275 TOPS

GPU: 2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores

GPU Max Frequency: 1.3 GHz

CPU: 12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3

CPU Max Frequency: 2.2 GHz

DL Accelerator: 2x NVDLA v2

DLA Max Frequency: 1.6GHz

Vision Accelerator: 1x PVA v2

Memory: 64GB 256-bit LPDDR5 204.8GB/s

Storage: 64GB eMMC 5.1

Video Encode: 2x 4K60 (H.265) 4x 4K30 (H.265) 8x 1080p60 (H.265) 16x 1080p30 (H.265)

Video Decode: 1x 8K30 (H.265) 3x 4K60 (H.265) 7x 4K30 (H.265) 11x 1080p60 (H.265) 22x 1080p30 (H.265)

CSI Camera: 16-lane MIPI CSI-2 connector

PCIe: x16 PCIe slot supporting x8 PCIe Gen4 M.2 Key M slot with x4 PCIe Gen4 M.2 Key E slot with x1 PCIe Gen4

USB: USB Type-C connector: 2x USB 3.2 Gen2 USB Type-A connector: 2x USB 3.2 Gen2, 2x USB 3.2 Gen1 USB Micro-B connector: USB 2.0

Networking: RJ45 connector with up to 10 GbE

Display: 1x DisplayPort 1.4a (+MST) connector

Other I/O: 40-pin header (UART, SPI, I2S, I2C, CAN, PWM, DMIC, GPIO) 12-pin automation header 10-pin audio panel header 10-pin JTAG header 4-pin fan header 2-pin RTC batter backup connector

Power: 15W - 60W

Mechanical: 110mm x 110mm x 71.65mm (Height includes feet, carrier board, module, and thermal solution)
