Noctua NF-A6X25 5V 60mm PWM Noctua Fan
Description

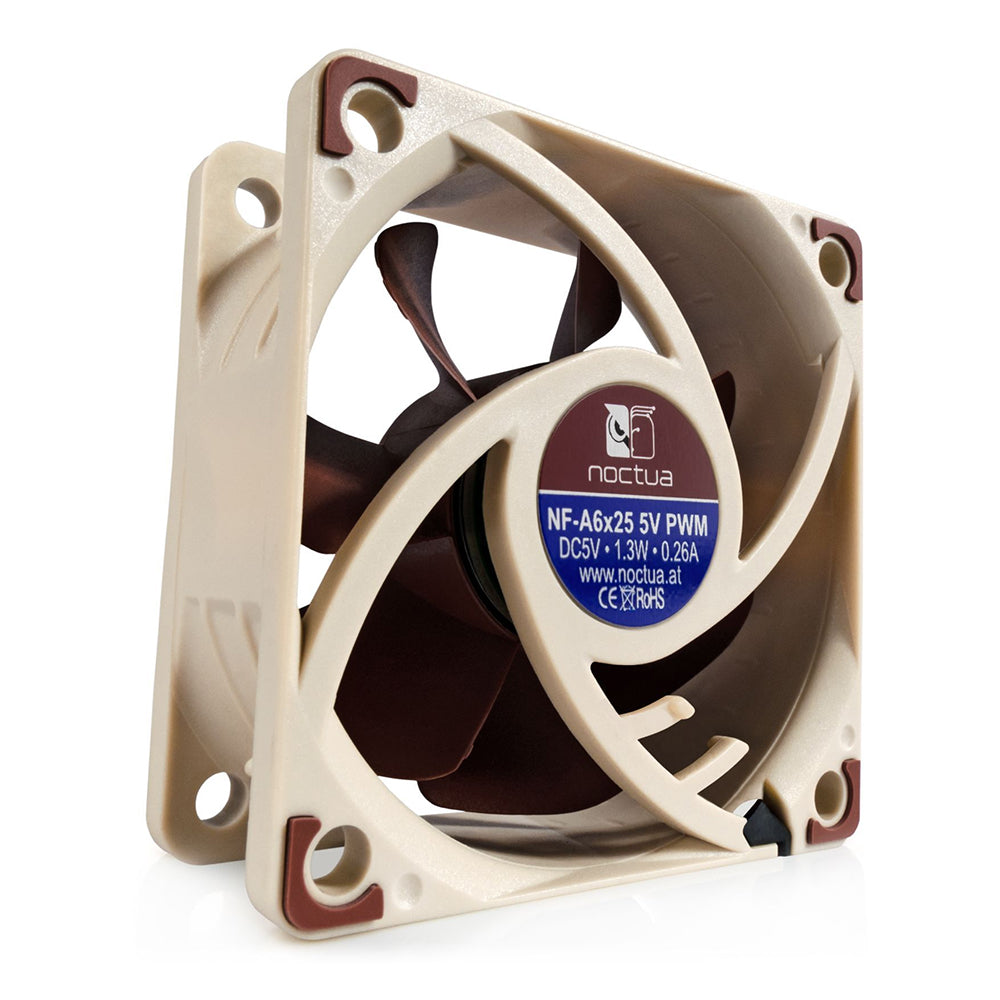

Noctua NF-A6X25 5V 60mm PWM Noctua Fan
Size: 60x60x25mm
Connector & Pin-Configuration: 4-pin PWM
Cable Length 20cm + 30cm NA-EC1 extension cable
Airflow: 29,2 m/h
Acoustical Noise: 19,3 dB(A)
MTTF: > 150.000 h
NF-A6X25-5V-PWM
Size: 60x60x25mm
Connector & Pin-Configuration: 4-pin PWM
Cable Length 20cm + 30cm NA-EC1 extension cable
Airflow: 29,2 m/h
Acoustical Noise: 19,3 dB(A)
MTTF: > 150.000 h
NF-A6X25-5V-PWM
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
Description
Noctua NF-A6X25 5V 60mm PWM Noctua Fan
Size: 60x60x25mm
Connector & Pin-Configuration: 4-pin PWM
Cable Length 20cm + 30cm NA-EC1 extension cable
Airflow: 29,2 m/h
Acoustical Noise: 19,3 dB(A)
MTTF: > 150.000 h
NF-A6X25-5V-PWM
View Full Details
Size: 60x60x25mm
Connector & Pin-Configuration: 4-pin PWM
Cable Length 20cm + 30cm NA-EC1 extension cable
Airflow: 29,2 m/h
Acoustical Noise: 19,3 dB(A)
MTTF: > 150.000 h
NF-A6X25-5V-PWM
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
5V PWM version
Many devices, such as network or storage solutions, use 5 volt 60mm fans with PWM speed control. With the same operating voltage, PWM support and the included OmniJoin™ adaptor set that makes it compatible with proprietary fan headers, the NF-A6x25 5V PWM is ideal for replacing noisy or broken 5V 60mm fans with PWM.
Polarity protection
As many devices using 5V fans feature proprietary connectors, and documentation of the pin alignment may not be available, the fan features an integrated diode for polarity protection. This way, you're on the safe side if you accidentally connect it with reverse polarity.
Reduced motor hub size
Thanks to its streamlined, compact motor design, the NF-A6x25's motor hub is smaller than with conventional 6cm fans. This allows for more blade surface area and thus contributes to the NF-A6x25's superior airflow and pressure performance.
Flow Acceleration Channels
The NF-A6x25 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
AAO frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated Anti-Vibration Pads
Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.
Custom-designed PWM IC with SCD
Supporting fully automatic PWM speed control, the fan uses Noctua's custom-designed NE-FD3 5V PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.
SSO2 bearing
The NF-A6x25 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

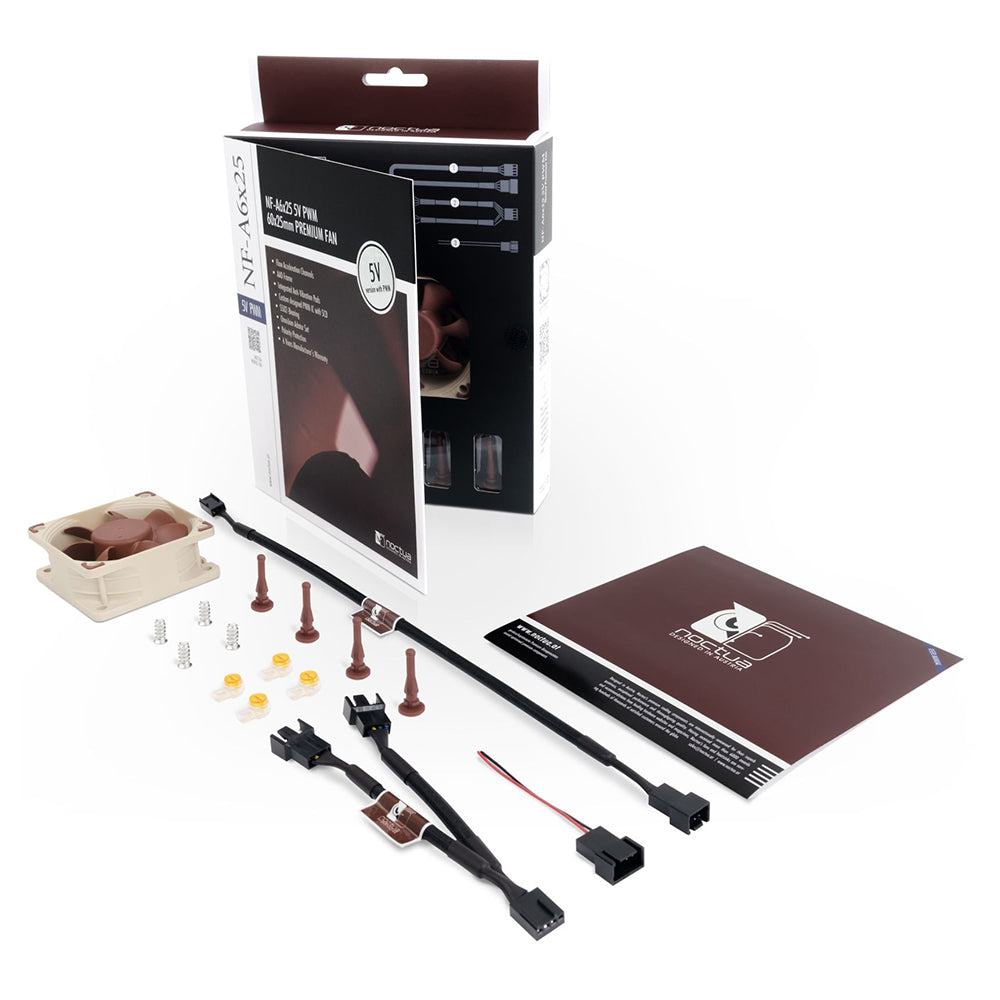

OmniJoin™ Adaptor Set
Many devices featuring 60mm fans use proprietary fan headers, so the NF-A6x25 5V PWM comes with Noctua’s OmniJoin Adaptor Set. Just cut the original fan’s cable, fix it to the adaptor using the supplied cable connectors and you can plug the NF-A6x25 5V PWM to proprietary fan headers!
6-year manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A6x25 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer's warranty.
Acoustical Noise: 19
3 dB(A)
Airflow: 29
2 m/h
Cable Length 20cm + 30cm NA-EC1 extension cable
Connector & Pin-Configuration: 4-pin PWM
MTTF: > 150.000 h
NF-A6X25-5V-PWM
Noctua NF-A6X25 5V 60mm PWM Noctua Fan
Size: 60x60x25mm
3 dB(A)
Airflow: 29
2 m/h
Cable Length 20cm + 30cm NA-EC1 extension cable
Connector & Pin-Configuration: 4-pin PWM
MTTF: > 150.000 h
NF-A6X25-5V-PWM
Noctua NF-A6X25 5V 60mm PWM Noctua Fan
Size: 60x60x25mm
