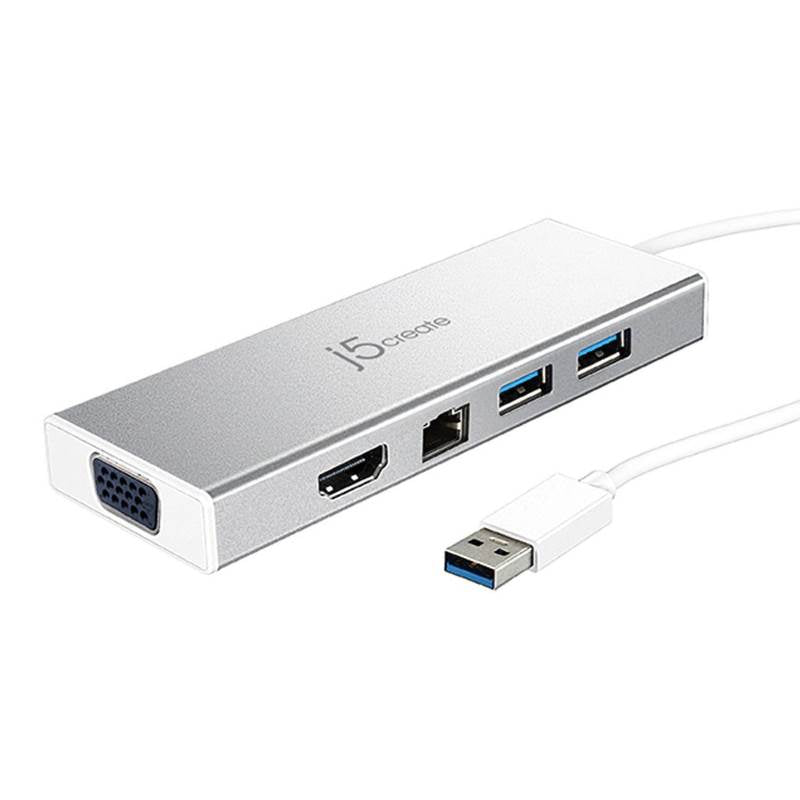

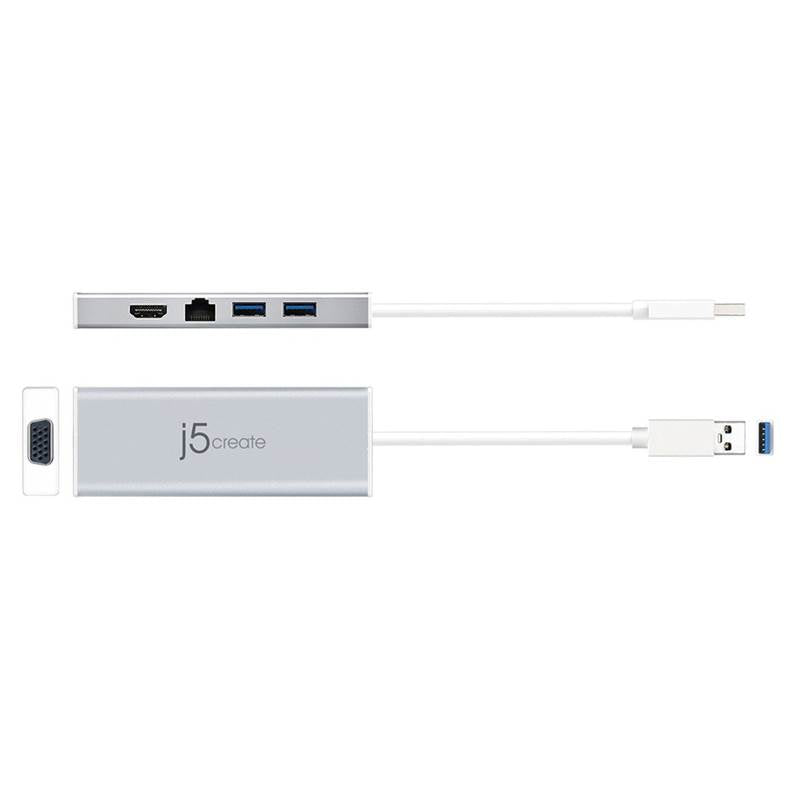

j5create JUD380 USB 3.0 Mini Dock
Description
• j5create JUD380 USB 3.0 Mini Dock Host Interface: USB 3.0 Male Type-A Connector
• 2x USB 3.0 Female Type-A Downstream Connectors
• Video Interface: VGA-DB 15 pin Female Connector, HDMI Type-A Female Connector
• Gigabit Ethemet RJ-45 Female Connector
• Power In: USB Micro-B Female Connector
• Power Mode: Bus-powered and self-powered
• Housing Material: Aluminum
• 12 Months Limited Warranty
• 2x USB 3.0 Female Type-A Downstream Connectors
• Video Interface: VGA-DB 15 pin Female Connector, HDMI Type-A Female Connector
• Gigabit Ethemet RJ-45 Female Connector
• Power In: USB Micro-B Female Connector
• Power Mode: Bus-powered and self-powered
• Housing Material: Aluminum
• 12 Months Limited Warranty
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
Description
• j5create JUD380 USB 3.0 Mini Dock Host Interface: USB 3.0 Male Type-A Connector
• 2x USB 3.0 Female Type-A Downstream Connectors
• Video Interface: VGA-DB 15 pin Female Connector, HDMI Type-A Female Connector
• Gigabit Ethemet RJ-45 Female Connector
• Power In: USB Micro-B Female Connector
• Power Mode: Bus-powered and self-powered
• Housing Material: Aluminum
• 12 Months Limited Warranty
View Full Details
• 2x USB 3.0 Female Type-A Downstream Connectors
• Video Interface: VGA-DB 15 pin Female Connector, HDMI Type-A Female Connector
• Gigabit Ethemet RJ-45 Female Connector
• Power In: USB Micro-B Female Connector
• Power Mode: Bus-powered and self-powered
• Housing Material: Aluminum
• 12 Months Limited Warranty
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
PRODUCT FEATURES
- Dual HDMI/VGA individual display output
- Supports 1080P @ 60Hz resolutions up to 2048 x 1152
- USB 3.1 Type-A port x 2
- Quickly add Gigabit Ethernet port
PRODUCT SPECIFICATIONS
|
Interface |
|
|
Host Interface |
USB 3.0 Male Type-A Connector |
|
USB Downstream Port |
USB 3.0 Female Type-A Connector |
|
Video Interface |
• VGA-DB 15 pin Female Connector • HDMI Type-A Female Connector |
|
Ethernet Interface |
Gigabit Ethemet RJ-45 Female Connector |
|
Power In |
USB Micro-B Female Connector |
|
Power |
|
|
Power Mode |
Bus-powered and self-powered |
|
Power Consumption |
?900mA |
|
Physical Specifications |
|
|
Housing Material |
Aluminum |
|
Dimensions |
Main body: 119.6(W)x 14.15(H)x 42.8(D) mm |
|
Weight |
Approximately 82.6 g |
Resolutions and Color Depth
| Aspect Ratio | Resolution | Color Depth |
|
|
||
| 16:9 | 2048 x 1152 | 32 bits |
| 16:10 | 1920 x 1200 | 32 bits |
| 16:9 | 1920 x 1080 | 32 bits |
| 16:10 | 1680 x 1050 | 32 bits |
| 16:9 | 1600 x 900 | 32 bits |
| 16:10 | 1440 x 900 | 32 bits |
| 16:9 | 1366 x 768 | 32 bits |
| 16:9 | 1360 x 768 | 32 bits |
| 16:10 | 1280 x 800 | 32 bits |
| 15:9 | 1280 x 768 | 32 bits |
| 16:9 | 1280 x 720 | 32 bits |
|
|
||
| 4:3 | 1600 x 1200 | 32 bits |
| 4:3 | 1400 x 1050 | 32 bits |
| 5:4 | 1400 x 1050 | 32 bits |
| 4:3 | 1280 x 960 | 32 bits |
| 4:3 | 1152 x 864 | 32 bits |
| 4:3 | 1024 x 768 | 32 bits |
| 4:3 | 800 x 600 | 32 bits |
| 4:3 | 640 x 480 | 32 bits |
System Requirements
- Microsoft Windows 10/ 8.1/ 8/ 7 (32-bit or 64-bit) compatible
- Mac OS X 10.8 or later
- Available USB 3.0/2.0 port (USB 3.0 recommended)
- One 2K (2048 x 1152 @ 60Hz) full-screen video playback
- CPU: Intel Core i5 Quad Core
- RAM: 4 GB memory or higher
- Two 2K (2048 x 1152 @ 60Hz) full-screen video playback
- CPU: Intel Core i7 Quad Core
- RAM: 8 GB memory or higher
Note for Video Player:
- Windows 8.1/8/7 user: “Windows Media Player” is recommended for video playback
- Windows 10 user: “Movies &TV” is recommended for video playback
Note:
- Gigabit Ethernet requires driver installation on Mac
- To ensure that your device is equipped with the most current driver, please visit our available drivers page here and install the latest driver for this model.
Package Contents
- JUD380 USB 3.0 Mini Dock
- Driver CD
- Quick Installation Guide
