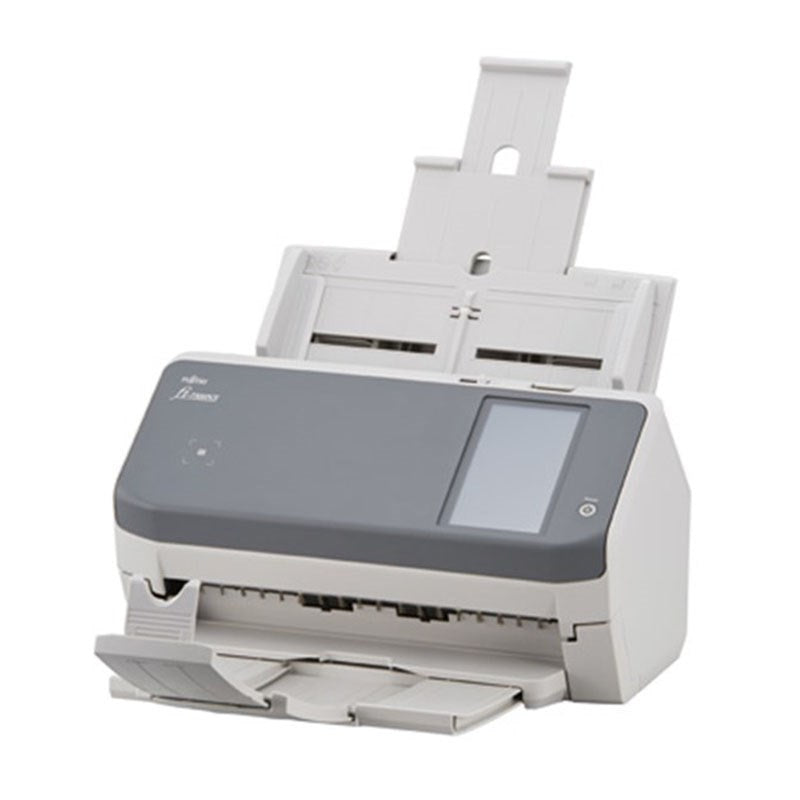

Fujitsu FAFI-7300NX Document Scanner - A4, Duplex

FUJITSU Image Scanner fi-7300NX

Based on the world’s most trusted scanning technology, the fi-7300NX delivers flexible, centralised capture for organisations with distributed teams or scanning needs. It can hold up to 80 sheets at a time, scanning 300 dpi A4 portrait at 60 ppm (120 ipm duplex).

Seamless integration into client systems
Scan from the scanner’s touch screen without any operation of the PC. Simply authenticate your ID and select from displayed clientspecific job profiles. Not only is efficient and secure decentralised data entry possible, but single units can also be shared within numerous clients. Unlike the typical scanner, the fi-7300NX is no longer tethered to the PC and can be placed wherever desired. Users can also scan from mobile or web applications opened up on smart devices or thin client terminals. Providing various scanning methods, the fi-7300NX enables use of a variety of devices for scanning operations to suit all client needs.

Reduce operational cost with centralised management
Manage user authentication, job menu, and every other scan setting on up to 1,000 scanners, with PaperStream NX Manager and Scanner Central Admin. Even remote branches can be monitored and managed, as all data is gathered to a single, web-accessible platform. With server-based software, there is no need for the conventional one-computerto-one-scanner environment or for system administrators to visit each scanner in order to deploy or update.

Easy user operation
Perform operations and view error messages and instructions with user-friendly illustrations, all on the 4.3 inch touch screen. Assign individual or user group-specific menus with the fi-7300NX supporting a variety of authentication methods.

SDK provision for more flexibility
Use the provided PaperStream NX Manager SDK to integrate with client systems and applications. Select out of three APIs – the REST API, Authentication API, and Connector API – based on whatever application needs to be developed. Need to develop web applications to carry out scanning functions? Web applications that need authentication functions? Or an interface to link PaperStream NX Manager to other business systems or OCR/document management software? These three APIs are here to support the development of whatever application is necessary to integrate with your business system.

*1 Actual scanning speeds are affected by data transmission and software processing times. *2 Indicated speeds are from using JPEG compression. *3 Indicated speeds are from using TIFF CCITT Group 4 compression.
*4 Selectable maximum density may vary depending on the length of the scanned document. *5 Some limitations may apply to the size of documents that can be scanned, depending on system environment, when
scanning at high resolution (over 600 dpi). *6 Scans folded documents of up to 297 x 432 mm (11.7 x 17 in.) with carrier sheet scanning. *7 Capable of scanning in both portrait and landscape orientation.
*8 Capable of scanning documents longer than A4 (210 x 297 mm / 8.3 x 11.7 in.) sizes. When using PaperStream IP (TWAIN/ISIS) to scan at 200 dpi, the maximum scanning length is 5,588 mm (220 in.).
*9 Thicknesses of up to 128 to 209 g/m 2 (34 to 56 lb) can be scanned for A8 (52 x 74 mm / 2.1 x 2.9 in.) sizes. *10 Capable of scanning up to 3 cards at a time (Note: does not set more than one embossed card at a
time). *11 Maximum capacity depends on paper weight and may vary. *12 Capable of setting additional documents while scanning. *13 When operating 8 hours a day. *14 Intelligent Sonic Paper Protection. *15 IPv6
is not supported. *16 Scanner automatically enters power saving mode when not used and powers off by default when not used for 4 hours. *17 Excludes the ADF paper chute and stacker. *18 Functions equivalent to
those offered by PaperStream IP may not be available with the WIA Driver. *19 Software can be downloaded from the website designated in the Setup DVD-ROM.
