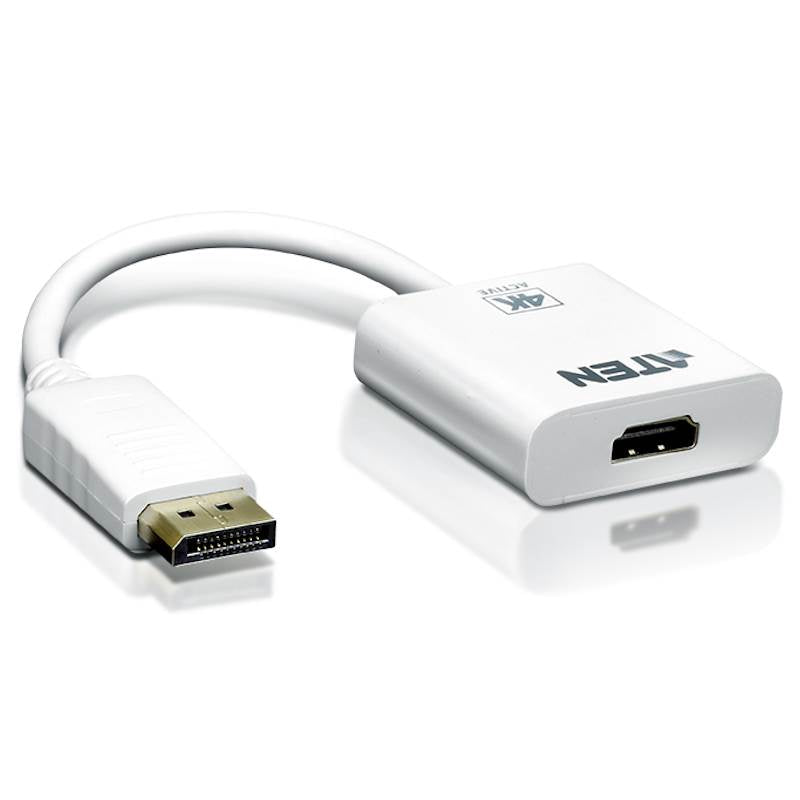

ATEN VC986 DisplayPort to 4K HDMI Active Adapter
Description
• ATEN VC986 DisplayPort to 4K HDMI Active Adapter Video Input: 1x DisplayPort Male (White)
• Video Output: 1x HDMI Type A Female (Black)
• Max. Pixel Clock: 297 MHz
• Max. Resolution: 3840x2160@30Hz, 1920 x 1200@60Hz
• Compliance: DP1.2a, HDMI (3D, Deep Color, 4K), HDCP 1.3
• Audio Output: 1x HDMI Type A Female (Black)
• Housing: Plastic
• 12 Months Limited Warranty
• Video Output: 1x HDMI Type A Female (Black)
• Max. Pixel Clock: 297 MHz
• Max. Resolution: 3840x2160@30Hz, 1920 x 1200@60Hz
• Compliance: DP1.2a, HDMI (3D, Deep Color, 4K), HDCP 1.3
• Audio Output: 1x HDMI Type A Female (Black)
• Housing: Plastic
• 12 Months Limited Warranty
Description
• ATEN VC986 DisplayPort to 4K HDMI Active Adapter Video Input: 1x DisplayPort Male (White)
• Video Output: 1x HDMI Type A Female (Black)
• Max. Pixel Clock: 297 MHz
• Max. Resolution: 3840x2160@30Hz, 1920 x 1200@60Hz
• Compliance: DP1.2a, HDMI (3D, Deep Color, 4K), HDCP 1.3
• Audio Output: 1x HDMI Type A Female (Black)
• Housing: Plastic
• 12 Months Limited Warranty
View Full Details
• Video Output: 1x HDMI Type A Female (Black)
• Max. Pixel Clock: 297 MHz
• Max. Resolution: 3840x2160@30Hz, 1920 x 1200@60Hz
• Compliance: DP1.2a, HDMI (3D, Deep Color, 4K), HDCP 1.3
• Audio Output: 1x HDMI Type A Female (Black)
• Housing: Plastic
• 12 Months Limited Warranty
The VC986 is an active DisplayPort to HDMI adapter that allow you to connect your Mini DisplayPort/DisplayPort output device to the HDMI input of a 4K TV or other display.
The ATEN VC986 is an active adapter, featuring advanced chips which ensure stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++).* Moreover, support for resolutions up to 4K make this adapter ideal for users who require a high performance signal conversion solution.
* Dual-mode DisplayPort (DP++) can directly process the signal from DisplayPort to HDMI or DVI signals.
FEATURES
- Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to 4K UHD
- Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++)*
- Supports AMD Eyefinity™ Technology (multi-screen setups)
- Audio supported
- No software or driver installation required
Package Contents
1x DisplayPort to 4K HDMI Active Adapter
12 Months Limited Warranty
ATEN VC986 DisplayPort to 4K HDMI Active Adapter
Audio Output: 1x HDMI Type A Female (Black)
Compliance: DP1.2a
HDMI (3D
Deep Color
4K)
HDCP 1.3
Housing: Plastic
Max. Pixel Clock: 297 MHz
Max. Resolution: 3840x2160@30Hz
1920 x 1200@60Hz
Video Input: 1x DisplayPort Male (White)
Video Output: 1x HDMI Type A Female (Black)
ATEN VC986 DisplayPort to 4K HDMI Active Adapter
Audio Output: 1x HDMI Type A Female (Black)
Compliance: DP1.2a
HDMI (3D
Deep Color
4K)
HDCP 1.3
Housing: Plastic
Max. Pixel Clock: 297 MHz
Max. Resolution: 3840x2160@30Hz
1920 x 1200@60Hz
Video Input: 1x DisplayPort Male (White)
Video Output: 1x HDMI Type A Female (Black)
