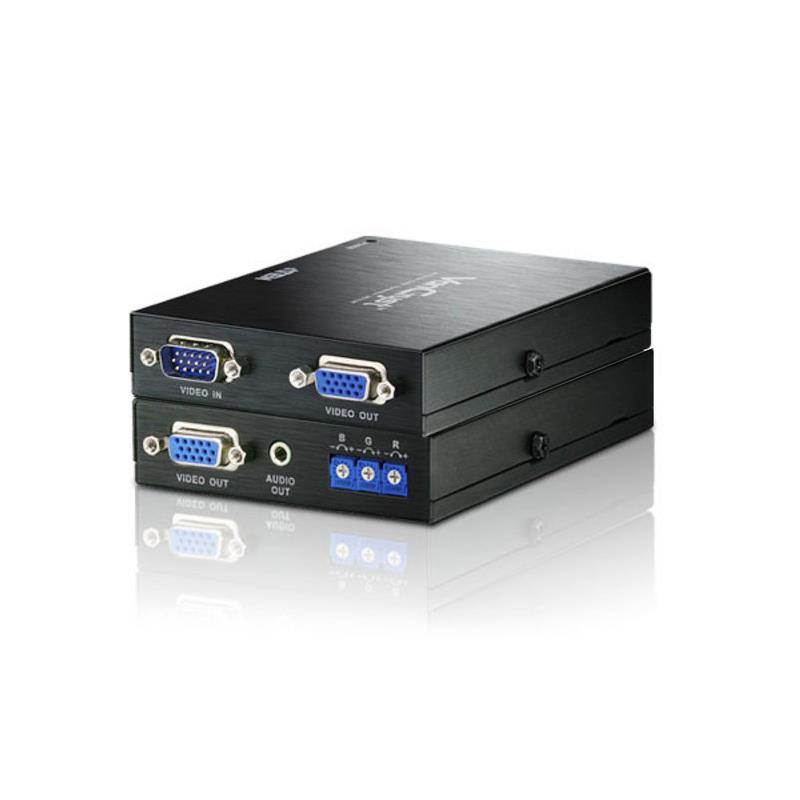

ATEN VanCryst VE170Q VGA/Audio over Cat5 Extender - up to 1280x1024 at 300m
ATEN VanCryst VE170Q VGA/Audio over Cat5 Extender - up to 1280x1024 at 300m
Description
• ATEN VanCryst VE170 Over Cat5 Video Extender with Audio and Deskew 1920x1200@60Hz or 300m Max
• Comprises 1x VE-170T Transmitter Unit and 1x VE-170RQ Receiver Unit
• Supports 1920x1200@60Hz (150m); 1280x1024@60Hz (300m)
• Deskew Function: Synchronize the Time Delay of RGB Signals
• Adjustable Gain/Compensation Control
• 2 Years Limited Warranty
• Comprises 1x VE-170T Transmitter Unit and 1x VE-170RQ Receiver Unit
• Supports 1920x1200@60Hz (150m); 1280x1024@60Hz (300m)
• Deskew Function: Synchronize the Time Delay of RGB Signals
• Adjustable Gain/Compensation Control
• 2 Years Limited Warranty
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
$448.95
Sale price
$448.95
BANK TRANSFER (EFT)
$448.95
Sale price
$448.95
Accepted payment methods
Description
• ATEN VanCryst VE170 Over Cat5 Video Extender with Audio and Deskew 1920x1200@60Hz or 300m Max
• Comprises 1x VE-170T Transmitter Unit and 1x VE-170RQ Receiver Unit
• Supports 1920x1200@60Hz (150m); 1280x1024@60Hz (300m)
• Deskew Function: Synchronize the Time Delay of RGB Signals
• Adjustable Gain/Compensation Control
• 2 Years Limited Warranty
View Full Details
• Comprises 1x VE-170T Transmitter Unit and 1x VE-170RQ Receiver Unit
• Supports 1920x1200@60Hz (150m); 1280x1024@60Hz (300m)
• Deskew Function: Synchronize the Time Delay of RGB Signals
• Adjustable Gain/Compensation Control
• 2 Years Limited Warranty
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
Product Description

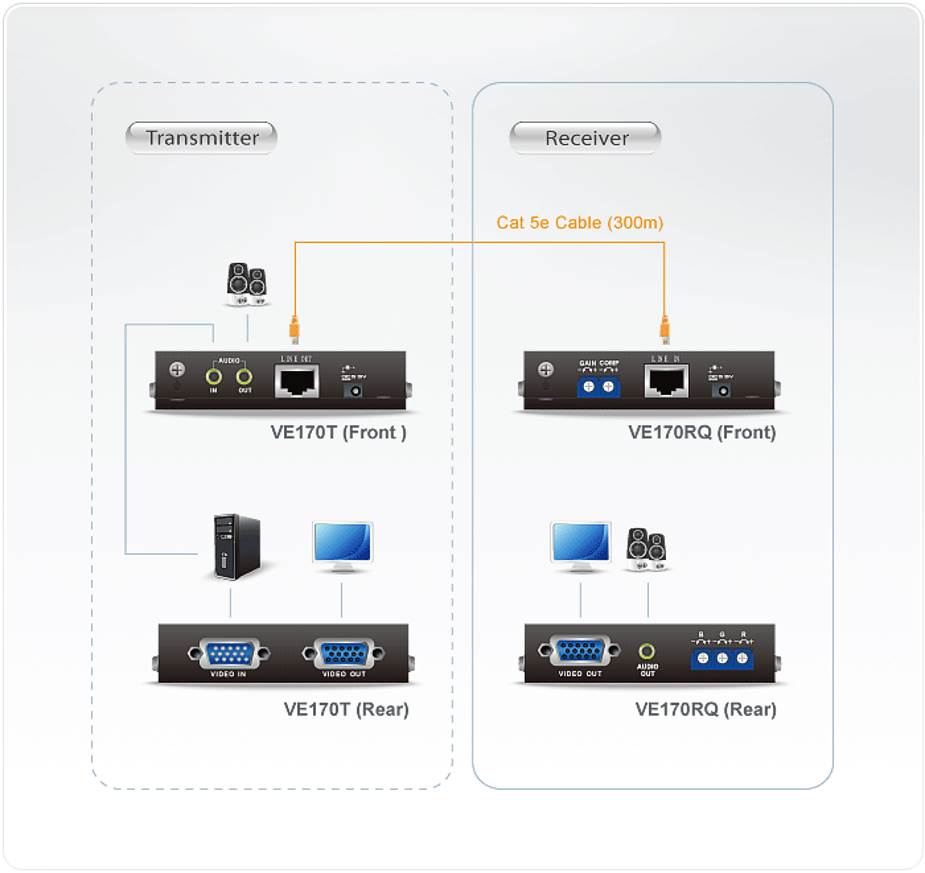

The VE170 A/V Over Cat 5 Extender, comprising of a VE170T Transmitter unit and a VE170RQ Receiver unit, is a cost-effective and effi cient solution for sending and receiving high quality audio and video content. Connect the two units using Cat 5e cable and the displays can be located up to 300m (1000ft) away from the Transmitter's input source. The VE170RQ Receiver unit can also be used with the ATEN VS1204T/VS1208T A/V Over Cat 5 Splitter as a transmitter.
The VE170RQ features ATEN patented Deskew technology, which supports the manual synchronization of RGB signals and corrects color phase and timing errors that occur over large distances.
- Transmitter Unit: VE170T A/V Over Cat 5 Transmitter
- Receiver Unit: VE170RQ A/V Over Cat 5 Receiver with Deskew
- Uses Cat 5e cable to connect the transmitter and receiver uints
- Supports one local and one remote display
- Long distance transmission up to 300m
- Deskew Function (VE170RQ) – allows you to synchronize the time delay of RGB signals to compensate for distance
-
Superior video quality:
- VE170R: 1920x1200 @ 60Hz (30m); 1600x1200 @ 60Hz (150m); 1024x768@ 60Hz (300m)
- VE170RQ: 1920x1200 @ 60Hz (150 m);1280x1024 @ 60Hz (300 m)
- Audio enabled (mono)
- Adjustable gain/compensation control
- BBuilt-in 8KV/15KV ESD protection
- Rack-mountable
- Complies with VESA FDMI mount standard
Function: VE170T
-
Connectors:
- Video In: 1 x HDB-15 Male (Blue)
- Video Out: 1 x HDB-15 Female (Blue)
- Audio In: 1 x Audio Jack Female (Green)
- Audio Out: 1 x Audio Jack Female (Green)
- Unit to Unit: 1 x RJ-45 Female
- Power: 1 x DC Jack
-
Video:
- 1920 x 1200 @ 60Hz (30m)
- 1600 x 1200 @ 60Hz (150m)
- 1024 x 768 @ 60Hz (300m)
- Cable Distance: 300m
- Power Consumption: DC5.3V, 0.9W
-
Environment:
- Operating Temp.: 0 ~ 50°C
- Storage Temp.: -20 ~ 60°C
- Humidity: 0-80% RH, Non-condensing
-
Physical Properties:
- Housing: Metal
- Weight: 0.25kg
- Dimensions (LxWxH): 11.95 x 8.56 x 2.26cm
Function: VE170RQ
-
Connectors:
- Video Out: 1 x HDB-15 Female (Blue)
- Audio Out: 1 x Audio Jack Female (Green)
- Unit to Unit: 1 x RJ-45 Female
- Power: 1 x DC Jack
- LEDs Power: 1 (Green)
-
Switch:
- Manual Gain Control: 2 x Knob
- RGB Tuner: 3 x Knob
-
Video:
- 1920 x 1200 @ 60Hz (150m)
- 1280 x 1024 @ 60Hz (300m)
- Cable Distance: 300m
- Power Consumption: DC5.3V, 1.43W
-
Environment:
- Operating Temp.: 0 ~ 50°C
- Storage Temp.: -20 ~ 60°C
- Humidity: 0~80% RH, Non-condensing
-
Physical Properties:
- Housing: Metal
- Weight: 0.25kg
- Dimensions (LxWxH): 11.95 x 8.56 x 2.26cm
Package Contents
- 1 x VE170T + VE170RQ
- 1 x VGA/Audio Cable (1.8 m)
- 2 x Power Adapters
- 1 x Mounting Kit (2 pcs)
- 1 x User Instructions
1920x1200@60Hz or 300m Max
2 Years Limited Warranty
Adjustable Gain/Compensation Control
ATEN VanCryst VE170 Over Cat5 Video Extender with Audio and Deskew
Comprises 1x VE-170T Transmitter Unit and 1x VE-170RQ Receiver Unit
Deskew Function: Synchronize the Time Delay of RGB Signals
Supports 1920x1200@60Hz (150m); 1280x1024@60Hz (300m)
2 Years Limited Warranty
Adjustable Gain/Compensation Control
ATEN VanCryst VE170 Over Cat5 Video Extender with Audio and Deskew
Comprises 1x VE-170T Transmitter Unit and 1x VE-170RQ Receiver Unit
Deskew Function: Synchronize the Time Delay of RGB Signals
Supports 1920x1200@60Hz (150m); 1280x1024@60Hz (300m)
