ATEN KL1516AiN Dual Rail 16-Port LCD KVM Over IP Switch

Disclaimers:

1. The input video resolution of KL1516Ai has been enhanced to Full HD. Please refer to the ATEN Website to distinguish between the non-FHD and FHD versions.

2. The KL1516Ai does not support virtual media even when paired with a virtual media-enabled KVM adapter.

About:

The KL1516Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1516Ai can be accessed from any computer on the LAN, WAN, or Internet – whether that computer is located down the hall, down the street, or halfway around the world.

Compact, high-density RJ-45 connectors and Cat 5e/6 cable make for a compact, efficient wiring configuration. The use of KVM Adapter Cables to link to the computers permits any combination of PCs, Macs, Sun computers, and serial devices to coexist during the installation.

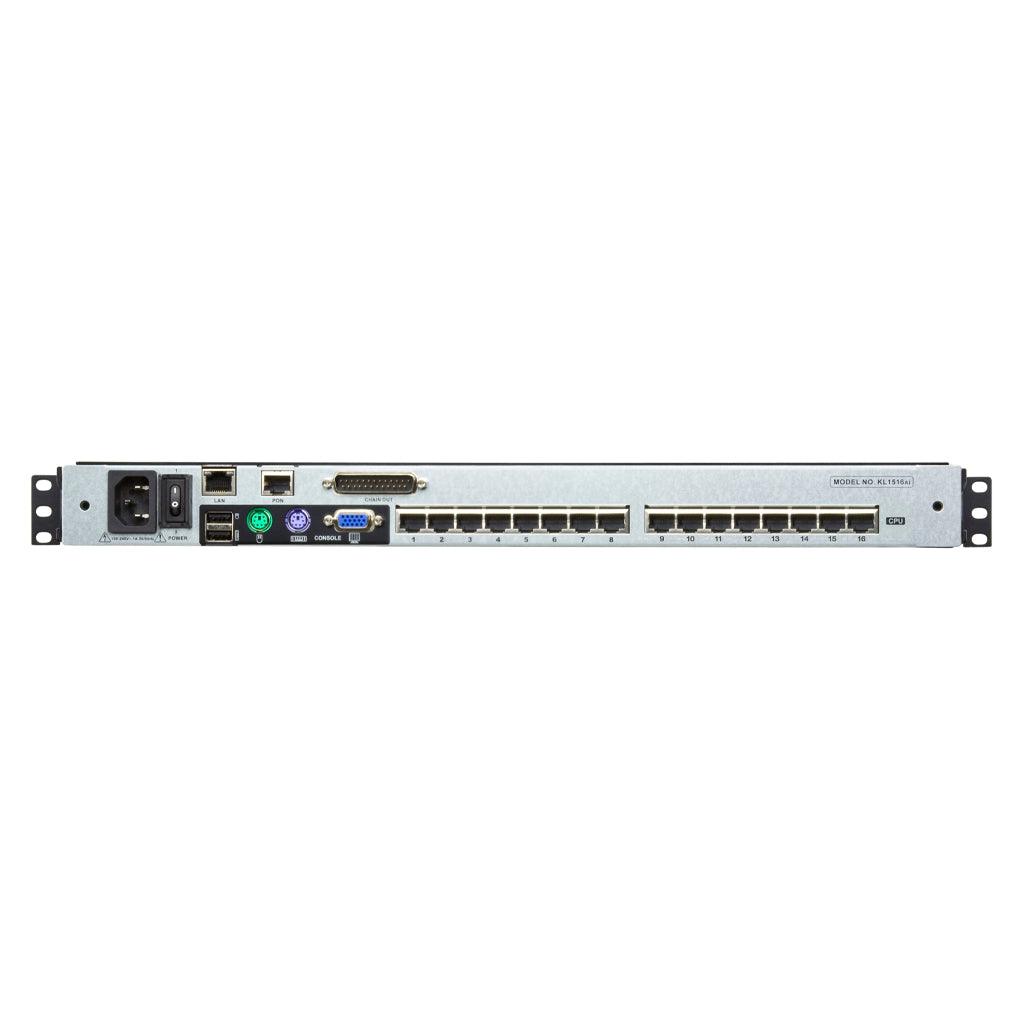

For added convenience, ports for an external keyboard, monitor, and mouse are provided on the rear panel – permitting you to manage the switch from a local console. There is also an external USB mouse port on the keyboard module, allowing you to use an external mouse, rather than the touchpad.

Enhanced features include a Panel Array Mode™ that simultaneously displays the video output of up to 16 computers and a Message Board that allows logged-in users to conveniently and instantly communicate with one another—no matter where they actually are. The KL1516Ai is an ideal solution for server room management.

Package Contents

1x KL1516Ai Dual Rail LCD KVM Switch
1x Power Cord
1x Standard Rack Mount Kit
1x Firmware Upgrade Cable
2x L Brackets
1x User Instructions

Features:

Hardware

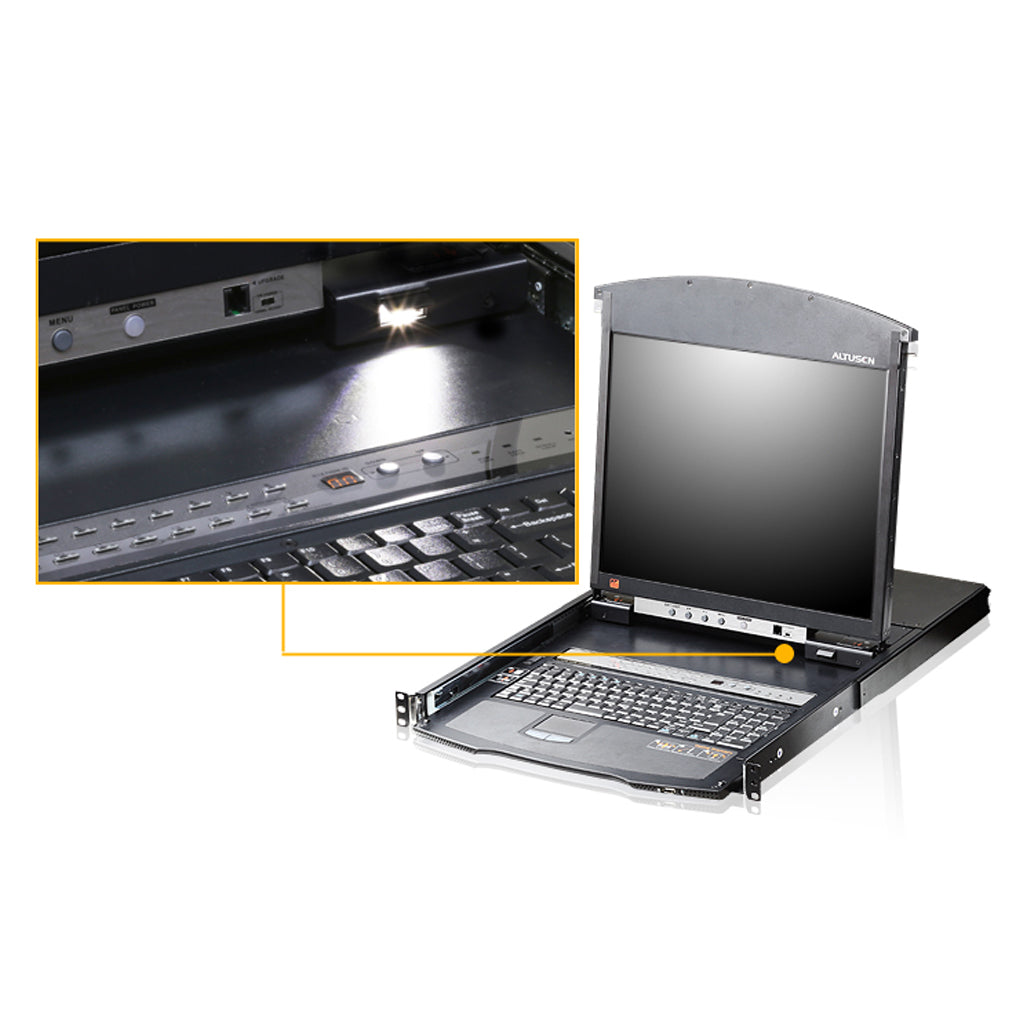

Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

Integrated KVM console with 17¨ or 19¨ LED-backlit LCD monitor in a Dual Rail housing

A single console controls up to 16 computers

Daisy chain up to 15 additional KVM switches to control up to 256 computers*

One bus for remote KVM over IP access

Space-saving RJ-45 connectors and Cat 5e/6 cabling

KVM adapter cables are designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types

Extra console por – manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)

Multiplatform support: PC, Mac, Sun and Serial

Supports external USB mouse

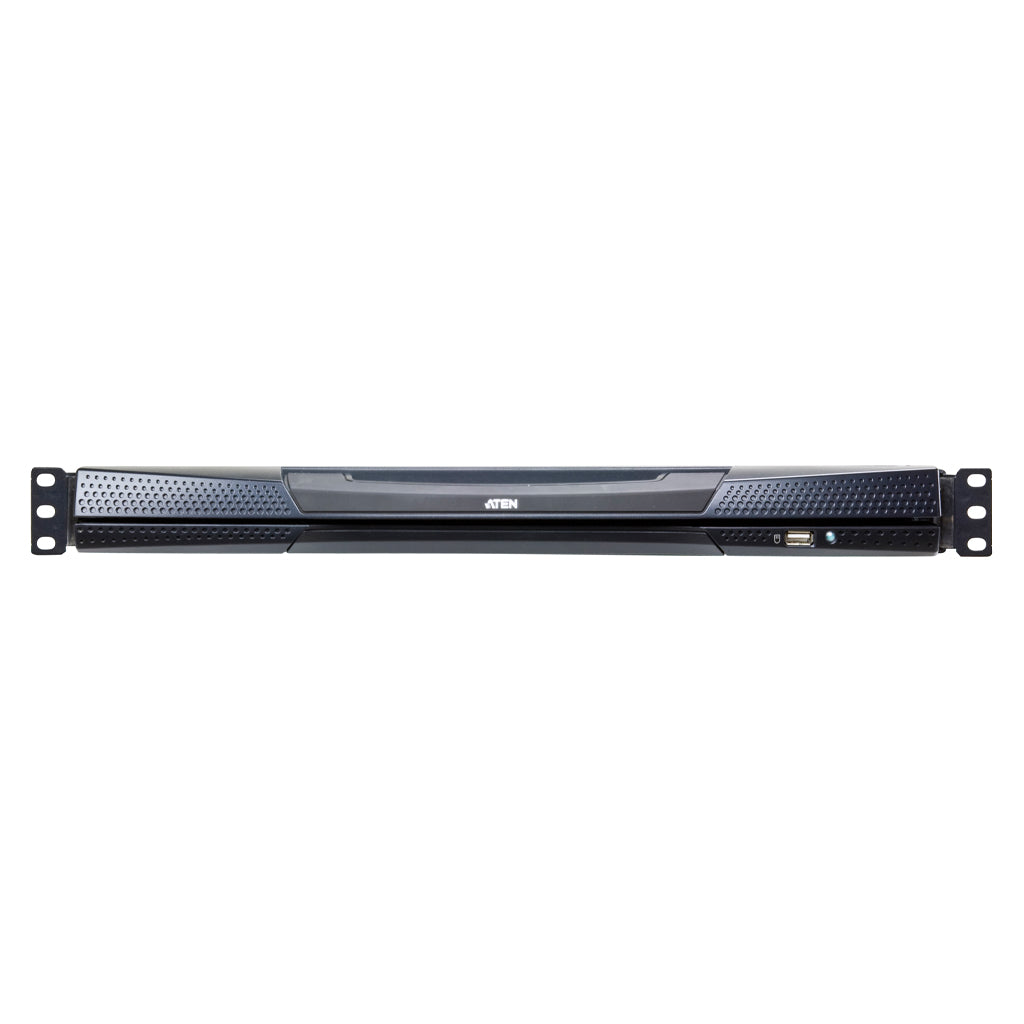

Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space

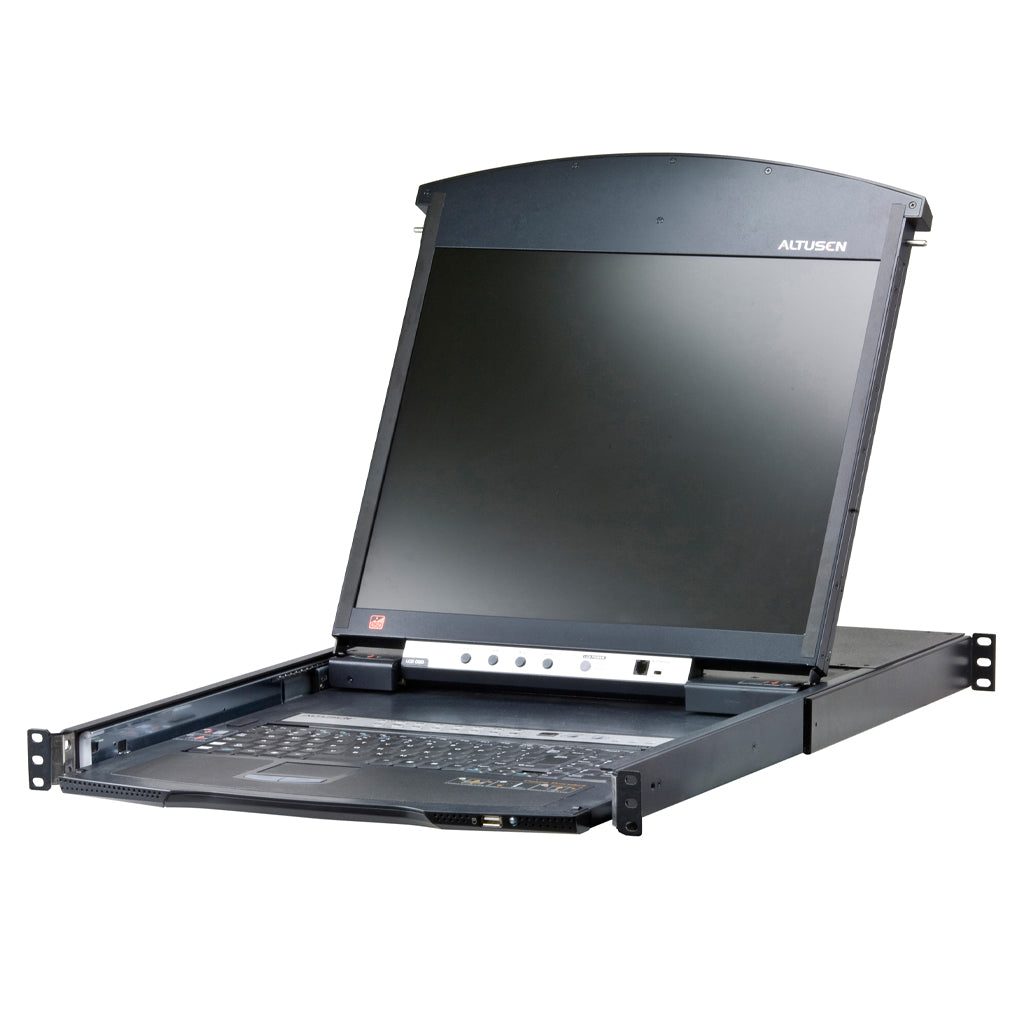

Dual Rail – LCD monitor slides independently of the keyboard/touchpad

LCD module rotates up to 120 degrees for a more comfortable viewing angle

Console lock – enables the console drawer to remain securely locked away in position when not in use

LCD power button helps save energy and prolong the display's life

Superior Video Quality – supports input video resolutions up to 1920 x 1200 @ 60Hz** up to 30 meters, 1600 x 1200 @ 60Hz up to 40 meters, and 1280 x 1024 @ 75Hz up to 50 meters

Optional rack mount kits available, including easy installation options

* Compatible KVM switches: KH1508A/KH1516A, ACS1208A/ACS1216A, CS1708A/CS1716A
** With KVM Adapter Cable KA71xx or KA75xx series; please check the product label to ensure it's the FHD version.

Management

Up to 64 user accounts

Up to 32 concurrent logins

End session feature – administrators can terminate any running session

Adapter ID – stores port information allowing administrators to relocate servers to different ports, without having to reconfigure the adapters and switch

Port Share Mode allows multiple users to gain access to a server simultaneously

Remote power control for attached Power Over the NET™ devices

Integration with ATEN CC2000 Management Software

Event logging and Windows-based Log Server support

Local Log Event

Firmware upgradeable

IPv6 capable

Easy-to-Use Interface

Easy computer selection via pushbuttons, Hotkey Mode, OSD (OnScreen Display), and Browser-based GUI

Local Console, Browser, and AP GUIs offer a unified multi-language interface to minimize user training time and increase productivity

Multiplatform client support (Windows, Mac OS X, Linux, Sun)

Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape

Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed

Panel Array Mode™

Keyboard broadcast* – keyboard input can be duplicated on all the attached servers

* Local Console only

Advanced Security

Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory

Supports TLS 1.2 encryption and RSA 2048-bit certificates to secure users log in from the browser

Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse and video data encryption

IP/MAC Filter support for enhanced security protection

Configurable user and group permissions for server access and control

Virtual Remote Desktop

Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations

Full-screen or sizable and scalable Virtual Remote Desktop

Message board feature allows logged-in users to communicate with each other

Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements

On-screen keyboard with multi-language support

BIOS-level access

Keyboard Language support: English(US); English(UK); French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
