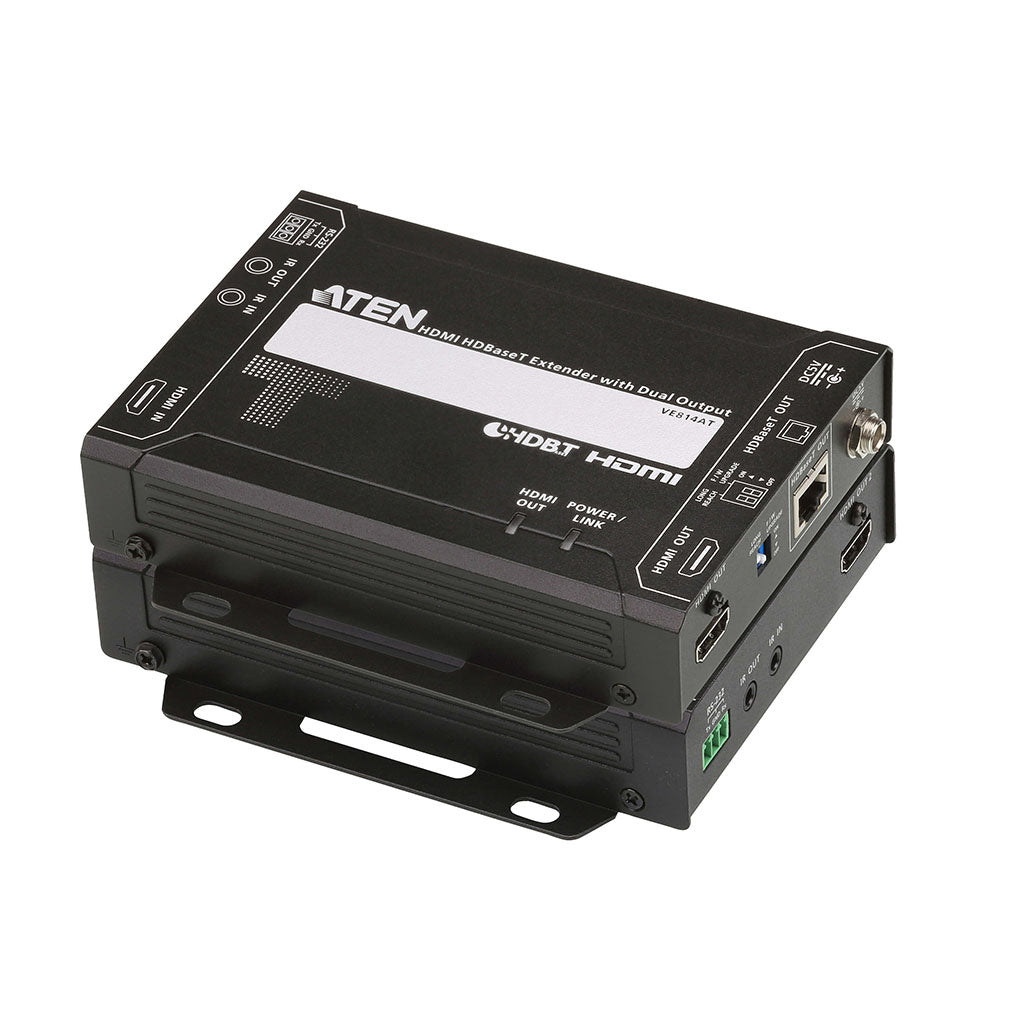

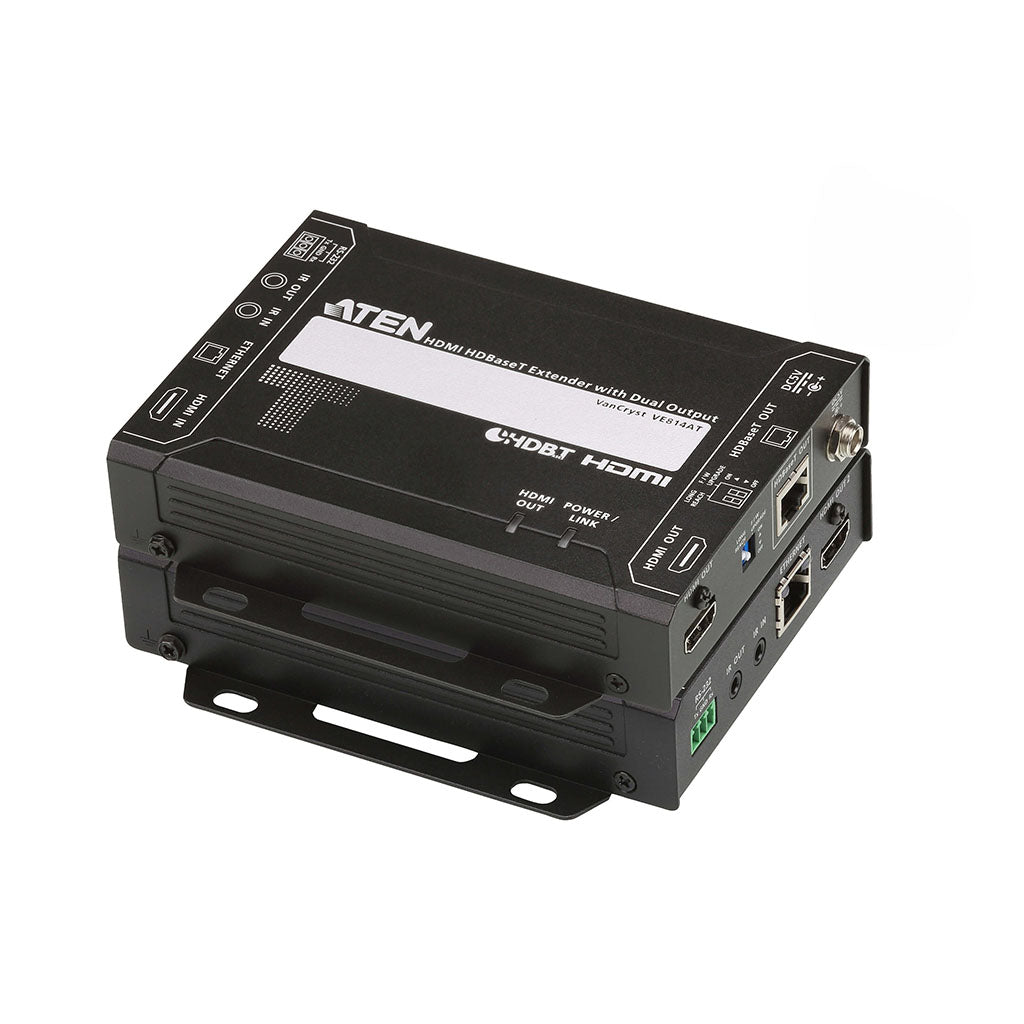

ATEN HDMI HDBaseT Extender with Dual 4K Output - 3 Years
ATEN HDMI HDBaseT Extender with Dual 4K Output - 3 Years
Description
• ATEN HDMI HDBaseT Extender with Dual 4K Output 3 Years
• Video Input Interfaces: 1 x HDMI Type A Female (Black)
• Video Output Interfaces: 1 x HDMI Type A Female (Black)
• Max. Data Rate: 10.2Gbps (3.4Gbps per lane)- Power Consumption: DC5V:5.09W:24BTU
• VE814A-ATA-U
• Video Input Interfaces: 1 x HDMI Type A Female (Black)
• Video Output Interfaces: 1 x HDMI Type A Female (Black)
• Max. Data Rate: 10.2Gbps (3.4Gbps per lane)- Power Consumption: DC5V:5.09W:24BTU
• VE814A-ATA-U
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
$908.00
Sale price
$908.00
BANK TRANSFER (EFT)
$908.00
Sale price
$908.00
Accepted payment methods
Description
• ATEN HDMI HDBaseT Extender with Dual 4K Output 3 Years
• Video Input Interfaces: 1 x HDMI Type A Female (Black)
• Video Output Interfaces: 1 x HDMI Type A Female (Black)
• Max. Data Rate: 10.2Gbps (3.4Gbps per lane)- Power Consumption: DC5V:5.09W:24BTU
• VE814A-ATA-U
View Full Details
• Video Input Interfaces: 1 x HDMI Type A Female (Black)
• Video Output Interfaces: 1 x HDMI Type A Female (Black)
• Max. Data Rate: 10.2Gbps (3.4Gbps per lane)- Power Consumption: DC5V:5.09W:24BTU
• VE814A-ATA-U
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
The VE814A supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814A is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
Package Contents
- 1x VE814AT Transmitter
- 1x VE814AR Receiver
- 1x IR Transmitter Cable
- 1x IR Receiver Cable
- 2x RS-232 Terminal Blocks
- 2x Power Adapters
- 1x User Instructions
Features
Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
Superior video quality:
• 4K up to 100 m
• 1080p up to 150 m when in HDBaseT Long Reach Mode
Extends Ethernet communication using the Ethernet pass-through port*
Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz
RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Supports wide screen format
Built-in 8 kV/15 kV ESD protection
Plug-and-play
Rack-mountable
Note: The function is supported by VE814A-AT only.

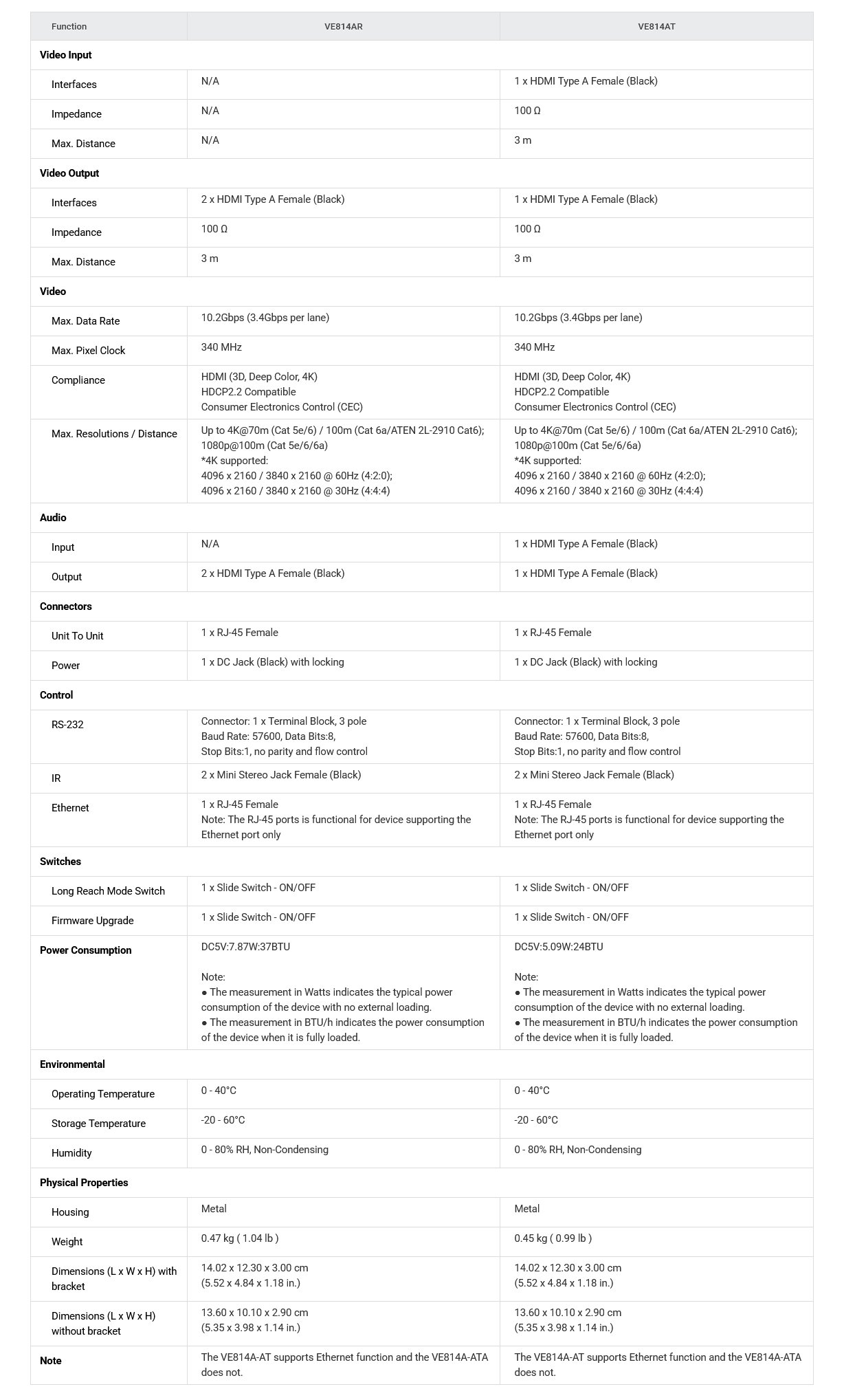

Specifications
