ATEN Control Box System Gen 2
Description
• ATEN Control Box System Gen 2 SDRAM: 1GB
• Flash: 8GB
• Serial: 4 x Programmable Digital Input / Output Channel, (1 x 5-Pole Terminal Block Connector); Digital Output: 300 mA sink from 24 VDC, Digital Input: VDC Mode, Input Voltage Range: 0 to 24 VDC; Programmable Range: 1 to 24 VDC; Dry Contact Mode, Pull-up 2k ohms to + 12 VDC
• Power Consumption: AC110V:5.2W:137BTU/h, AC220V:6.5W:143BTU/h
• VK2100A
• Flash: 8GB
• Serial: 4 x Programmable Digital Input / Output Channel, (1 x 5-Pole Terminal Block Connector); Digital Output: 300 mA sink from 24 VDC, Digital Input: VDC Mode, Input Voltage Range: 0 to 24 VDC; Programmable Range: 1 to 24 VDC; Dry Contact Mode, Pull-up 2k ohms to + 12 VDC
• Power Consumption: AC110V:5.2W:137BTU/h, AC220V:6.5W:143BTU/h
• VK2100A
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
$2,908.00
Sale price
$2,908.00
Accepted payment methods
Description
• ATEN Control Box System Gen 2 SDRAM: 1GB
• Flash: 8GB
• Serial: 4 x Programmable Digital Input / Output Channel, (1 x 5-Pole Terminal Block Connector); Digital Output: 300 mA sink from 24 VDC, Digital Input: VDC Mode, Input Voltage Range: 0 to 24 VDC; Programmable Range: 1 to 24 VDC; Dry Contact Mode, Pull-up 2k ohms to + 12 VDC
• Power Consumption: AC110V:5.2W:137BTU/h, AC220V:6.5W:143BTU/h
• VK2100A
View Full Details
• Flash: 8GB
• Serial: 4 x Programmable Digital Input / Output Channel, (1 x 5-Pole Terminal Block Connector); Digital Output: 300 mA sink from 24 VDC, Digital Input: VDC Mode, Input Voltage Range: 0 to 24 VDC; Programmable Range: 1 to 24 VDC; Dry Contact Mode, Pull-up 2k ohms to + 12 VDC
• Power Consumption: AC110V:5.2W:137BTU/h, AC220V:6.5W:143BTU/h
• VK2100A
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more

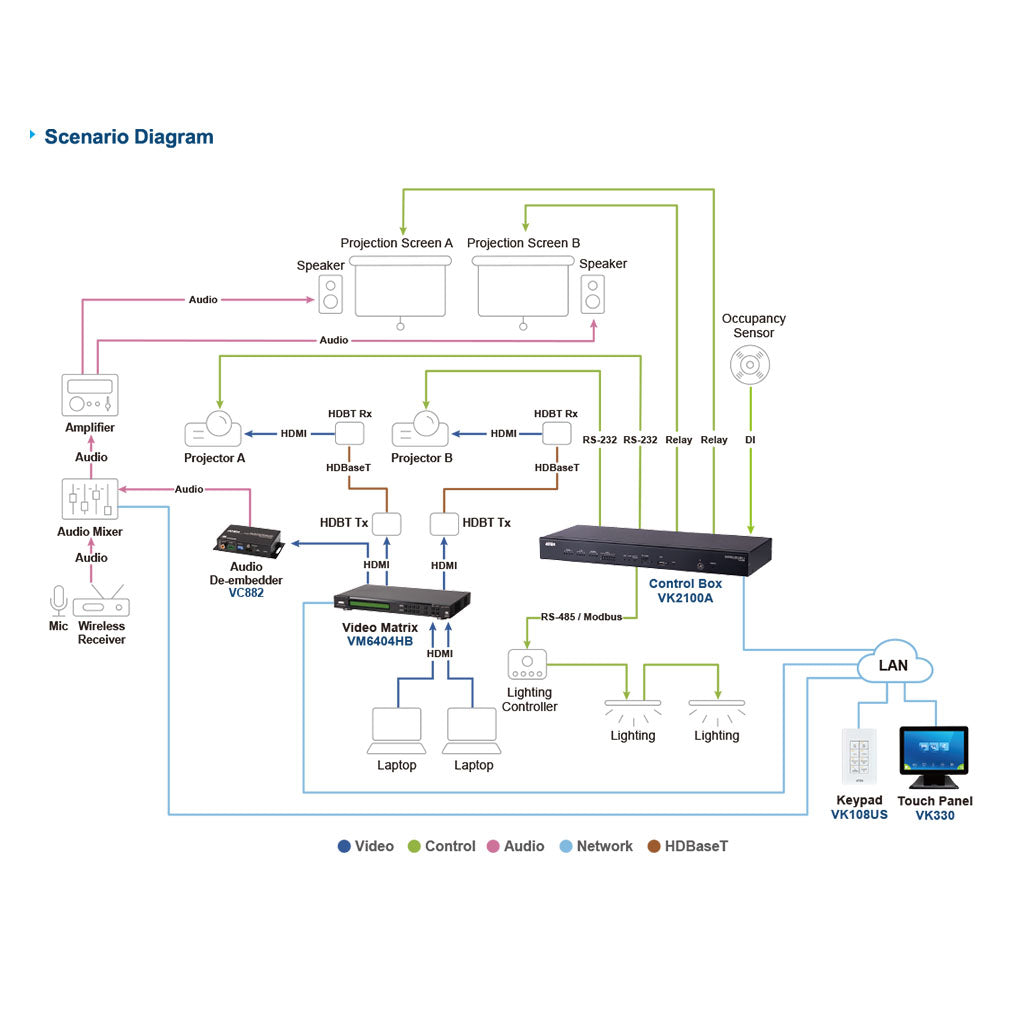

The VK2100A Control Box is designed to easily manage any room setting, and can be deployed into an existing installation environment seamlessly not only with ATEN products, but also nearly any hardware or software device found in a room, including AV equipment, lighting, conference systems, air conditioning, motion sensors, power switches, and many more. VK2100A is the perfect solution for managing mass device deployments such as government agencies, military facilities, corporate organizations, and healthcare institutions.
VK2100A is a part of ATEN’s Control System Series, a standard Ethernet-based management system, which consists of hardware, configurator software, control interfaces, and related services, to control any hardware and software devices within a room setting, such as boardrooms and lecture halls, and to provide direct, centralized management effortlessly via user-defi ned GUIs from any mobile device, ATEN Keypad, and Touch Panel.
Features
• High-performance processor embedded with quad-core CPU and 1GB memory for designing and controlling complex projects

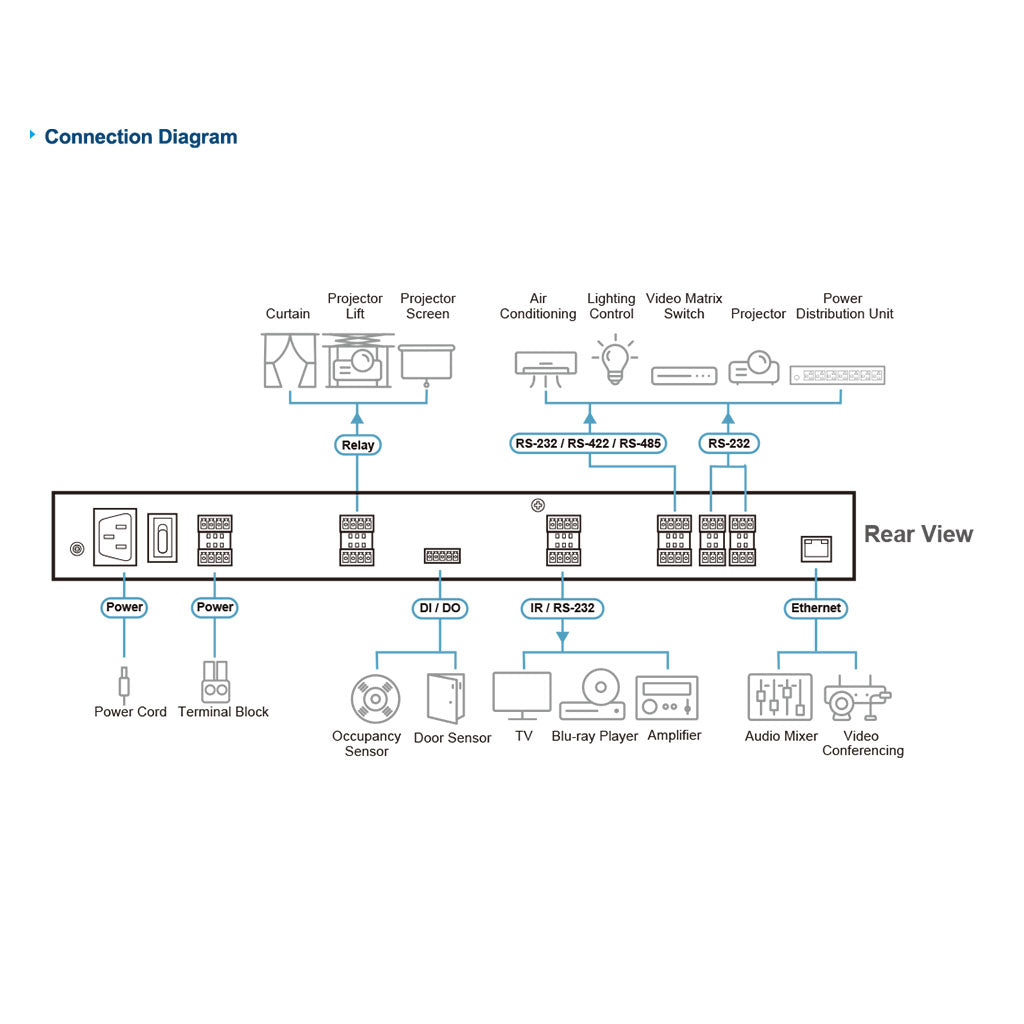

• Supports various interface connections for hardware-software integration and mobile device control
• DC outputs for power supply connections
• USB port for easy project upload
• IR learning function for adding IR device drivers
• Web Viewer – integrated with 3rd-party systems or any web-based console for easier room equipment management
• Supports IEEE 802.1x authentication protocol for enhanced network security
• Supports SNMP and enables IT management software to retrieve information from ATEN controllers
• Supports native KNX IP for building management systems
• TCP, UDP, Telnet, SSH, HTTP, HTTPS, WebSocket, ONVIF, and PJLink compliant
• Supports Pronto formatted IR codes – IR command codes can be entered in Hex format
• Supports Modbus protocol – enables integration with Modbus devices, including TCP, RTU and its checksum data
• Supports Telnet CLI (command-line interface) mode for third-party system integration
• Supports centralized control and management by ATEN Unizon™
• Supports project file backup
• Web GUI for easy system configuration
• Supports SSH communication for convenient data monitoring
• LED indication of connection and hardware status
• 2 free licenses for mobile control*

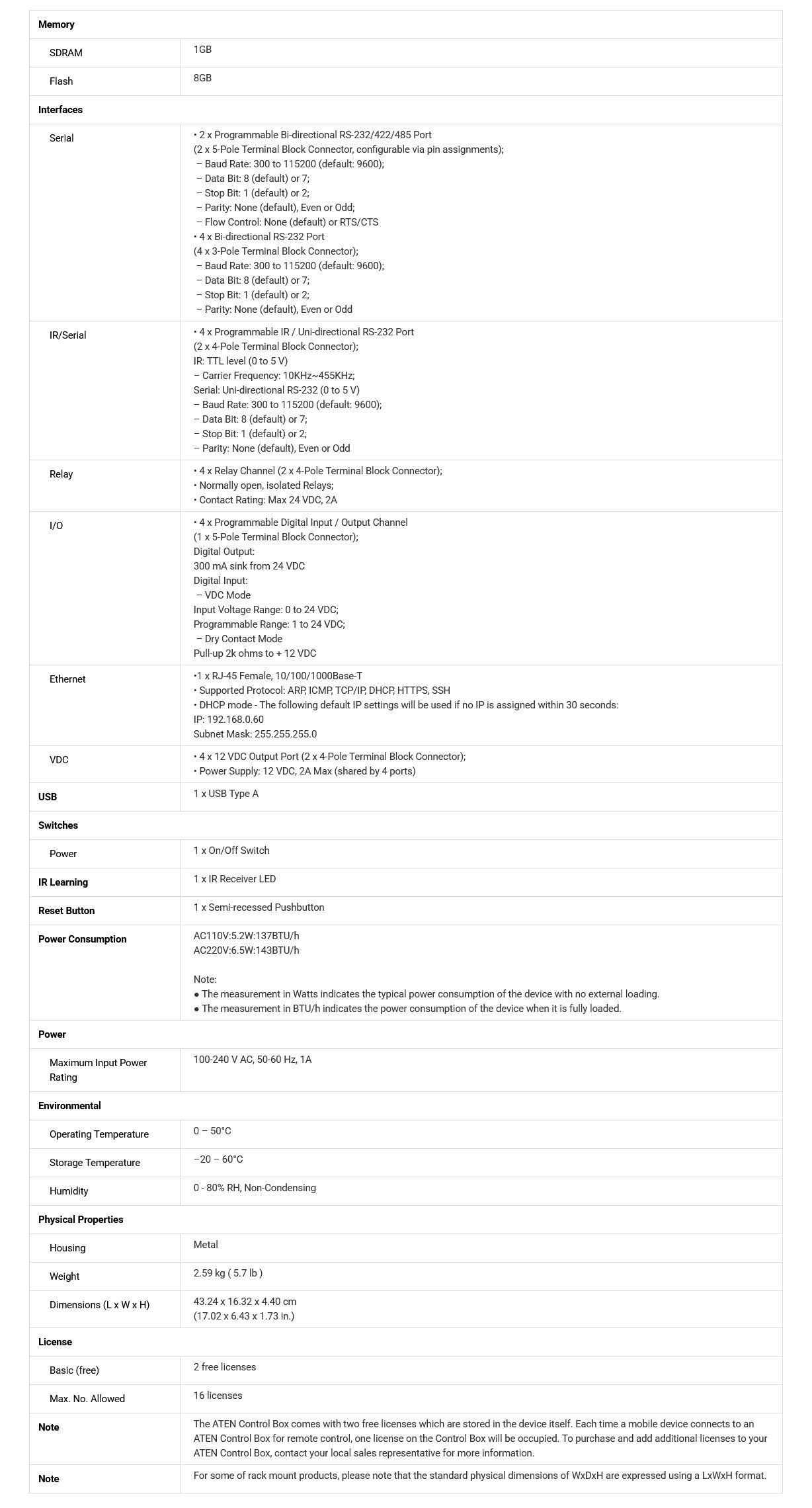

Specifications
Package Contents
1x VK2100A Control Box Gen. 2
1x power cord
1x foot pad set (4 pcs)
1x rack mount kit
1x terminal block kit
1x user instructions
