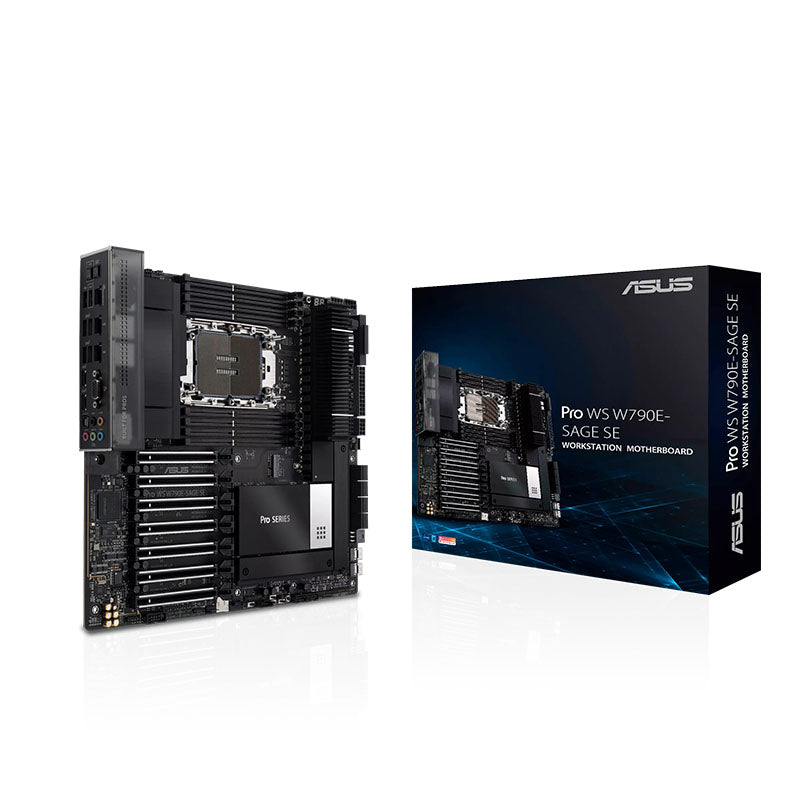

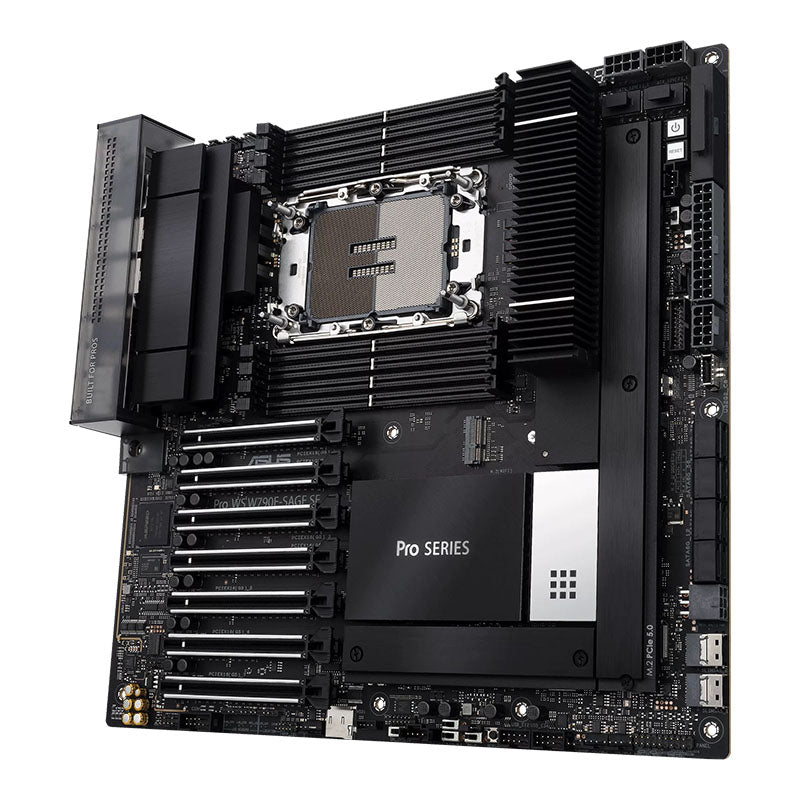

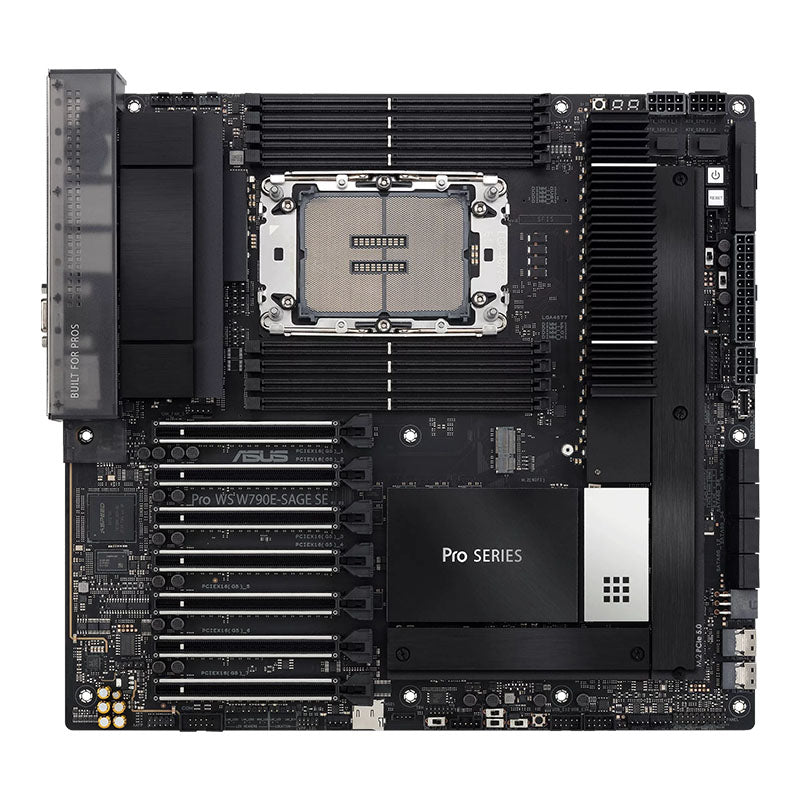

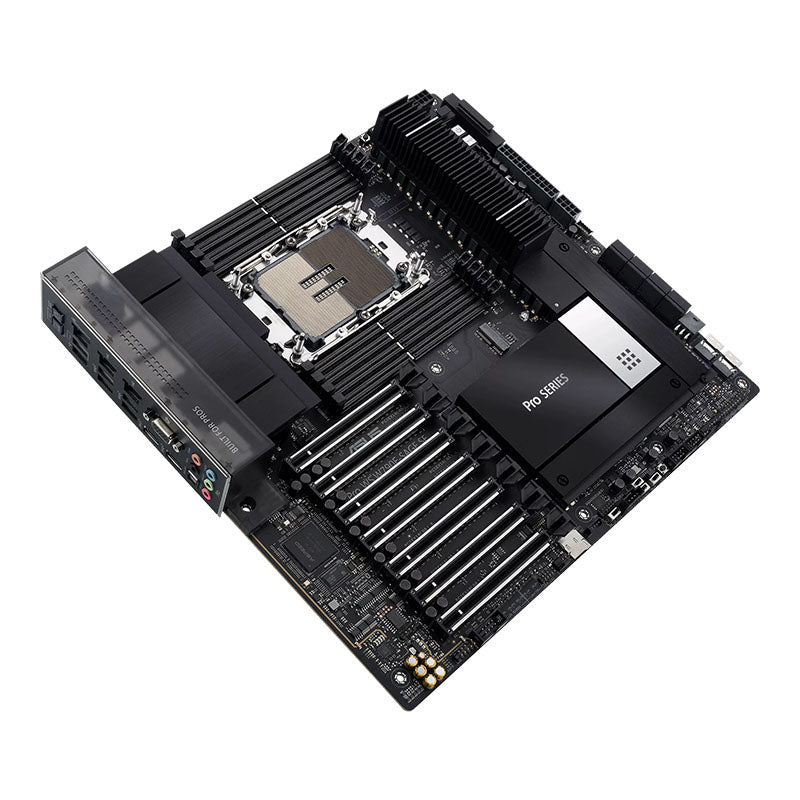

ASUS Pro WS W790E-SAGE SE LGA 4677 EEB Workstation Motherboard

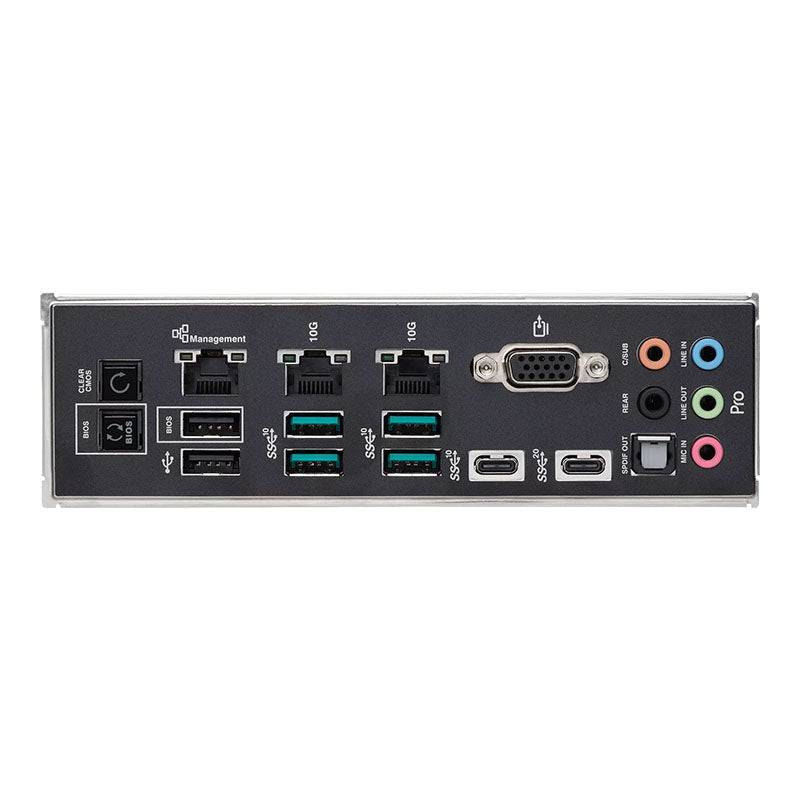

1 - BIOS Flashback and clear CMOS

2 - Dedicated BMC LAN

3 - 2 x USB 2.0 Type-A ports

4 - Dual 10G Ethernet

5 - 4 x USB 3.2 Gen 2 Type-A ports

6 - 1 x USB 3.2 Gen 2 Type-C® port

7 - 1 x USB 3.2 Gen 2x2 Type-C® port

8 - 7 x PCIe 5.0 x16 Safeslots

9 - Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

10 - Dual 10G Ethernet heatsink

11 - VRM heatsink

FUNCTION-FIRST AESTHETICS

Low-profile professionalism

With metallic black aluminium extrusions, stainless steel black mesh with highlighted details, and a transparent smoky gray I/O cover, Pro WS W790 series presents a professional, low-profile look for content creators. ?

Multi-GPU support

Pro WS W790E-SAGE SE features seven PCIe® 5.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modeling and simulation, and rendering applications.

ROBUST POWER SOLUTION

14+1+1 Power stages

Pro WS W790E-SAGE SE’s VRM is comprised of 14+1+1 power stages, and delivers the power and efficiency that the latest Intel processors demand.

ULTRAFAST CONNECTIVITY TO POWER CREATIVITY

USB 3.2 Gen 2 x 2 Type C

The latest USB standard doubles transfer bandwidth by opening another USB3.2 lane to achieve its maximum throughput of up to 20Gbps. In addition to blazingly fast data-transfer speeds, USB 3.2 offers easy connectivity and ultimate flexibility via USB-C ports.

Front-panel connector

The front panel USB 3.2 Gen 2 connector is ready for next-gen PC cases and devices.

SERVER-GRADE REMOTE MANAGEMENT

BMC remote management

An integrated BMC (Baseboard Management Controller) is a key feature for workstations. It uses a 1G Realtek controller, with one 1G port dedicated to the BMC to provide the intelligence for its IPMI architecture. The BMC manages the interface between system-management software and platform hardware. Administrators can remotely communicate with the BMC to take some corrective actions — such as resetting or power cycling a system.

SERVER-GRADE REMOTE MANAGEMENT

ASUS Control Center Express

The Pro WS W790E-SAGE SE comes with ASUS Control Center Express - a real-time IT monitoring and management software designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks.

THOROUGH THERMAL DESIGN

Massive VRM Heatsinks

Since mass and airflow are critically important, our VRM heatsinks are manufactured with tall and densely packed fins, and are placed on the MOSFETs and chokes to enhance thermal efficiency. Additional fan bracket allows users to install up to three high-speed fans*, drawing heat away from VRM areas to fully unleash the performance of the latest Intel processors.

Immersive Audio experience

The Realtek S1220A 7.1 audio codec features high quality 120 dB SNR stereo playback output and 113 dB SNR recording input to offer pristine audio quality and is supported by EMI shielding and separate PCB layers for the left and right channels to maintain signal integrity.

Power pre-regulator

Reduces power-input noise to ensure consistent performance.

Audio shielding

Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Integrated amplifier

Capable of driving high-impedance headphones, without rolling-off high or low frequencies.

Separate layer for left and right tracks

Ensures minimal crosstalk between audio paths.

De-pop circuit

Reduces start-up popping noise to all audio outputs.

Premium audio capacitors

Premium parts provide an immersive sound signature, with exceptional fidelity.
