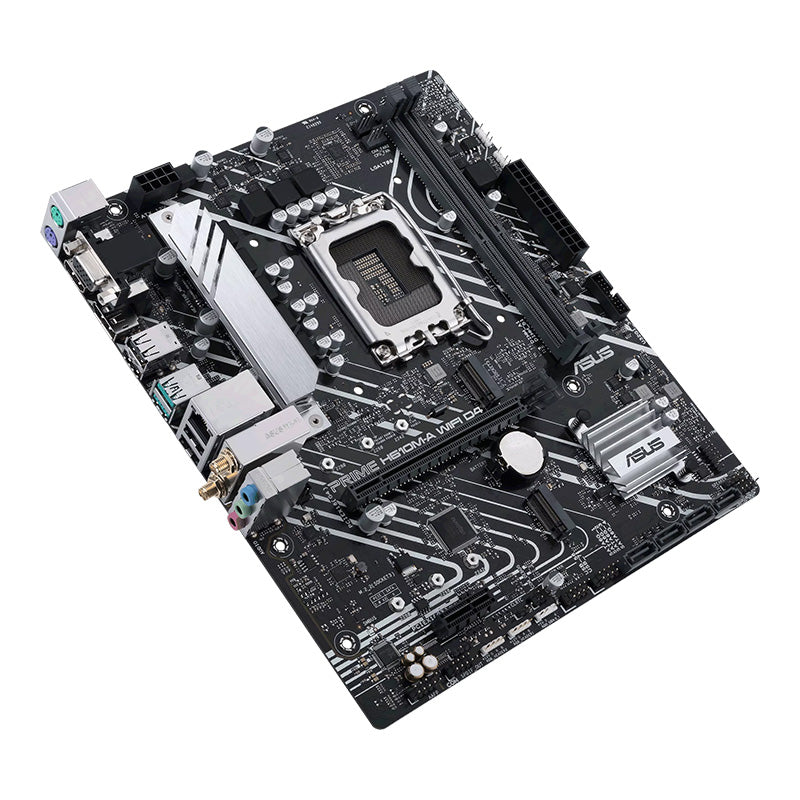

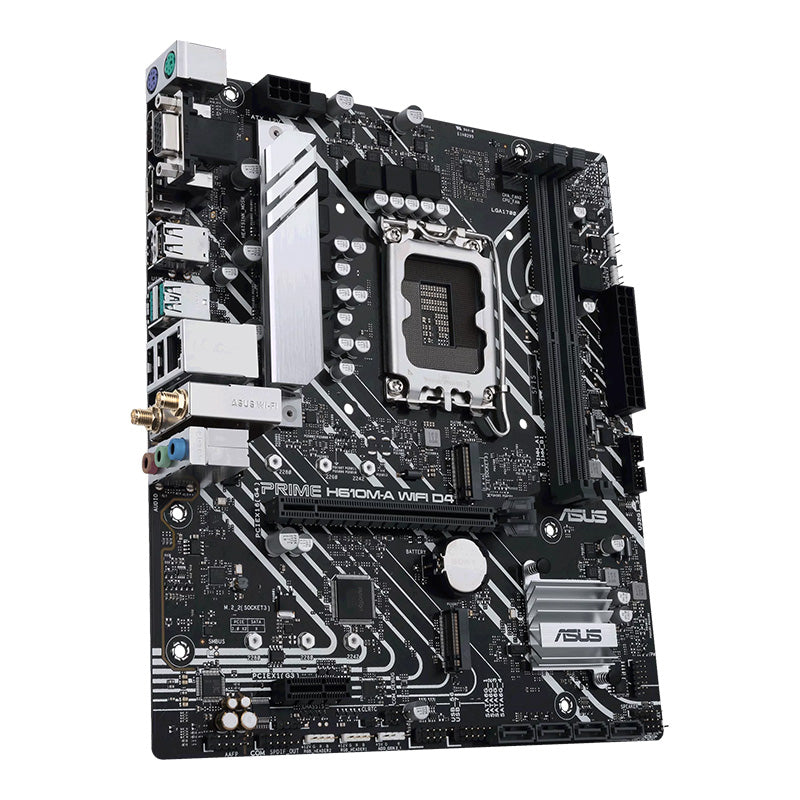

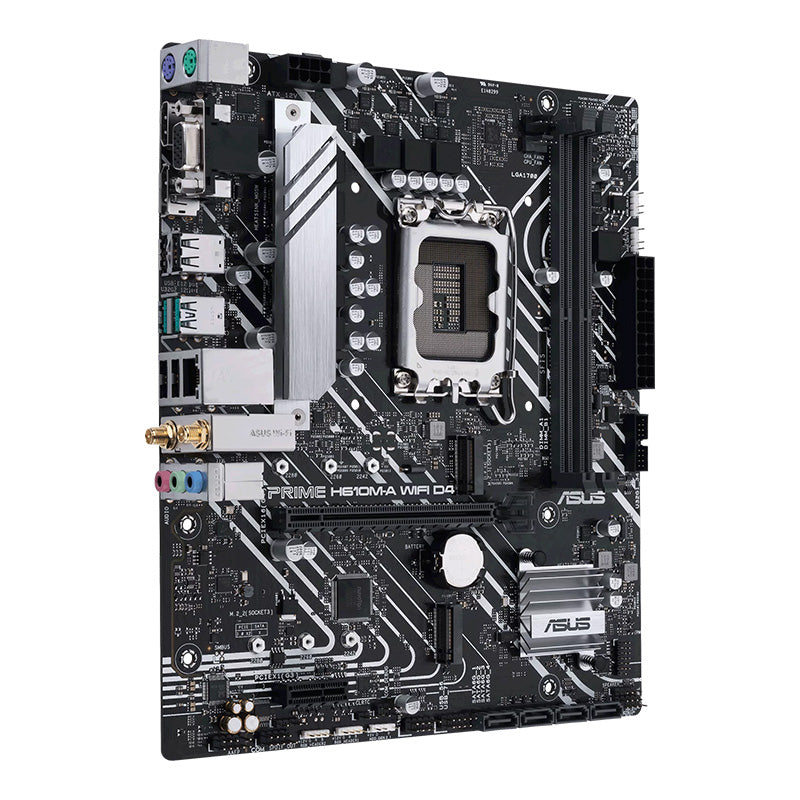

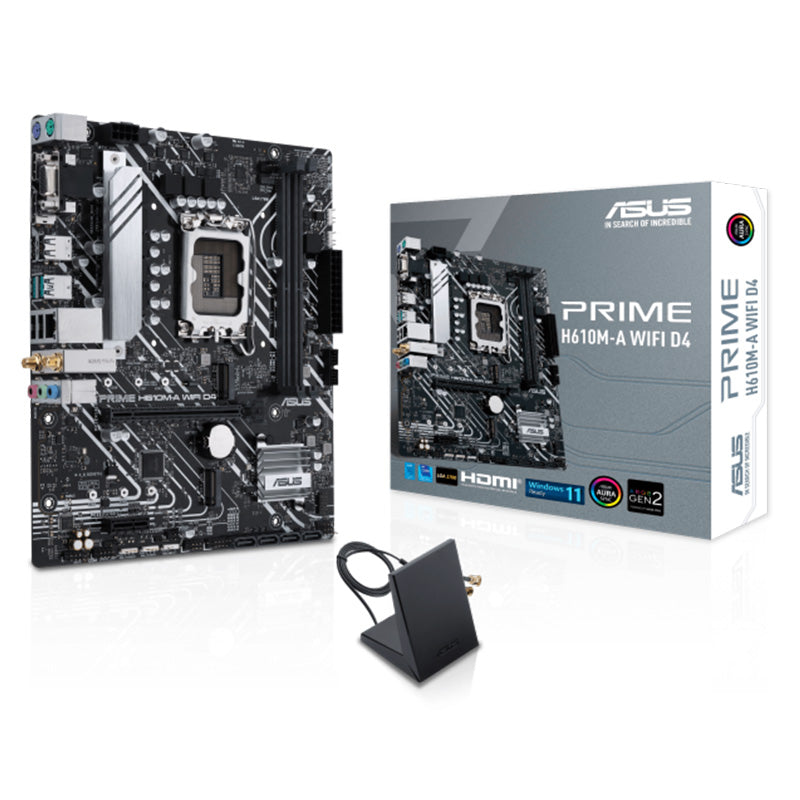

ASUS PRIME H610M-A WIFI D4 LGA 1700 Micro-ATX Motherboard

ASUS Prime

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th & 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

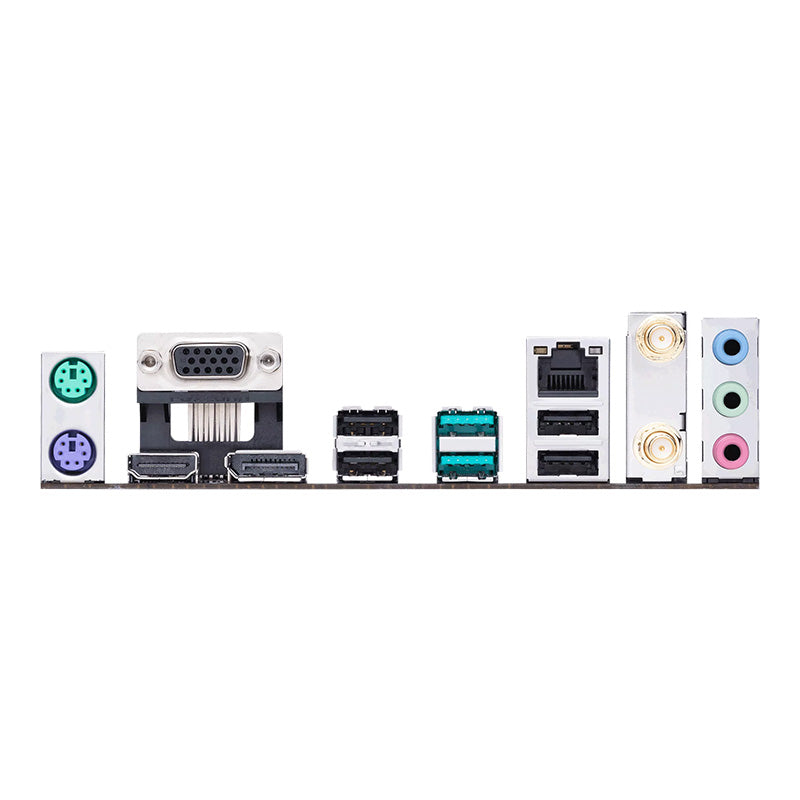

1 - PS/2

2 - HDMI port

3 - D-Sub port

4 - DisplayPort

5 - 2 x USB 2.0 ports (Type-A)

6 - 2 x USB 3.2 Gen 2 ports (Type-A)

7 - Intel 1Gb Ethernet

8 - 2 x USB 2.0 ports (Type-A)

9 - 1 x Wi-Fi Module

10 - 3 x Audio jacks

11 - Expansion slots
1 x PCIe 4.0 x16 SafeSlot Core
1 x PCIe 3.0 x1

12 - 2 x AURA RGB headers

13 - 1 x Addressable Gen 2 header

14 - 2 x DIMM
DDR4 3200
Dual Channel

15 - 2 x Addressable Gen 2 headers

16 - Intel Socket LGA1700 for 13th and 12th Gen Intel Core Processors

17 - 1 x USB 3.2 Gen 1 header

18 - 2 x M.2 slots
1 x M.2 2280 (PCIe 3.0 x4)
1 x M.2 2280 (PCIe 3.0 x2)

19 - Intel H610 Chipset

20 - 4 x SATA 6Gb/s

21 - 2 x USB 2.0 headers

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

All-Around Energy Efficiency

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximises energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

COOLING

Prime H610 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

VRM Heatsink and Thermal Pad

VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design

Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

PERFORMANCE

Prime H610 series are built to handle the additional cores and increased bandwidth of 13th & 12th Generation Intel processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Dual M.2 slots (up to 32 Gbps)

Prime H610M-A WIFI D4 offers two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.

* Actual transmission speeds will be lower than the theoretical maximum speed.

PCIe 4.0

Prime H610 motherboards are designed specifically for 13th & 12th Generation Intel Core CPUs and offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

Aura Sync

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
