Aqara W100 Climate Sensor

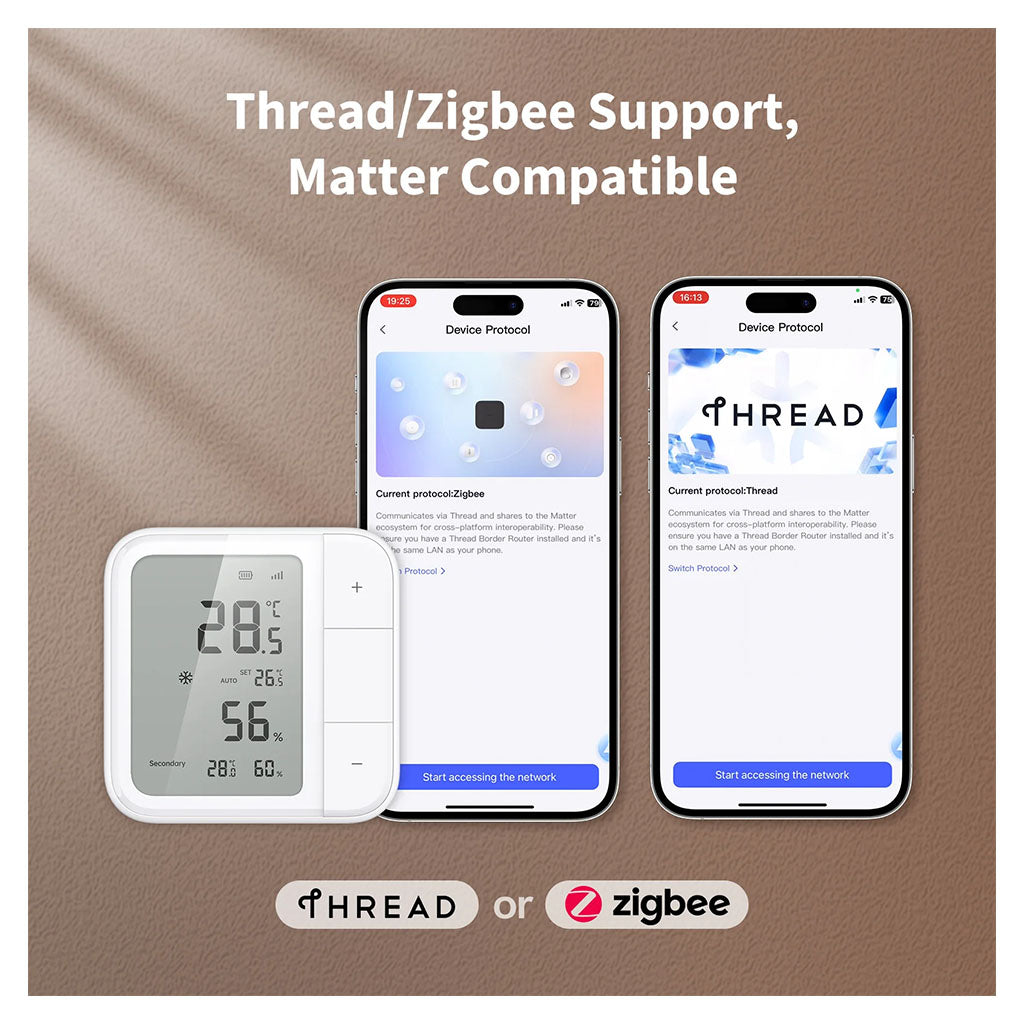

Dual-Protocol with Matter Compatibility: Supports both Matter over Thread* and Zigbee**. Matter compatibility ensures integrating seamlessly with third-party ecosystems such as Apple Home, Amazon Alexa, Google Home and more. Provides more choices and seamless compatibility across different ecosystems. Zigbee with an Aqara hub helps users experience exclusive Aqara Home features. You can switch*** between desired protocols based on preference.

Three Smart Button Customisation: Equipped with three customisable buttons, supporting single, double and long press operations, enabling up to nine automations or scene configurations****. Whether you want to turn on/off your device through wireless control, or switch to comfort mode with one button, the flexibility allows you to easily create an ideal living environment, adjust home comfort in real time.

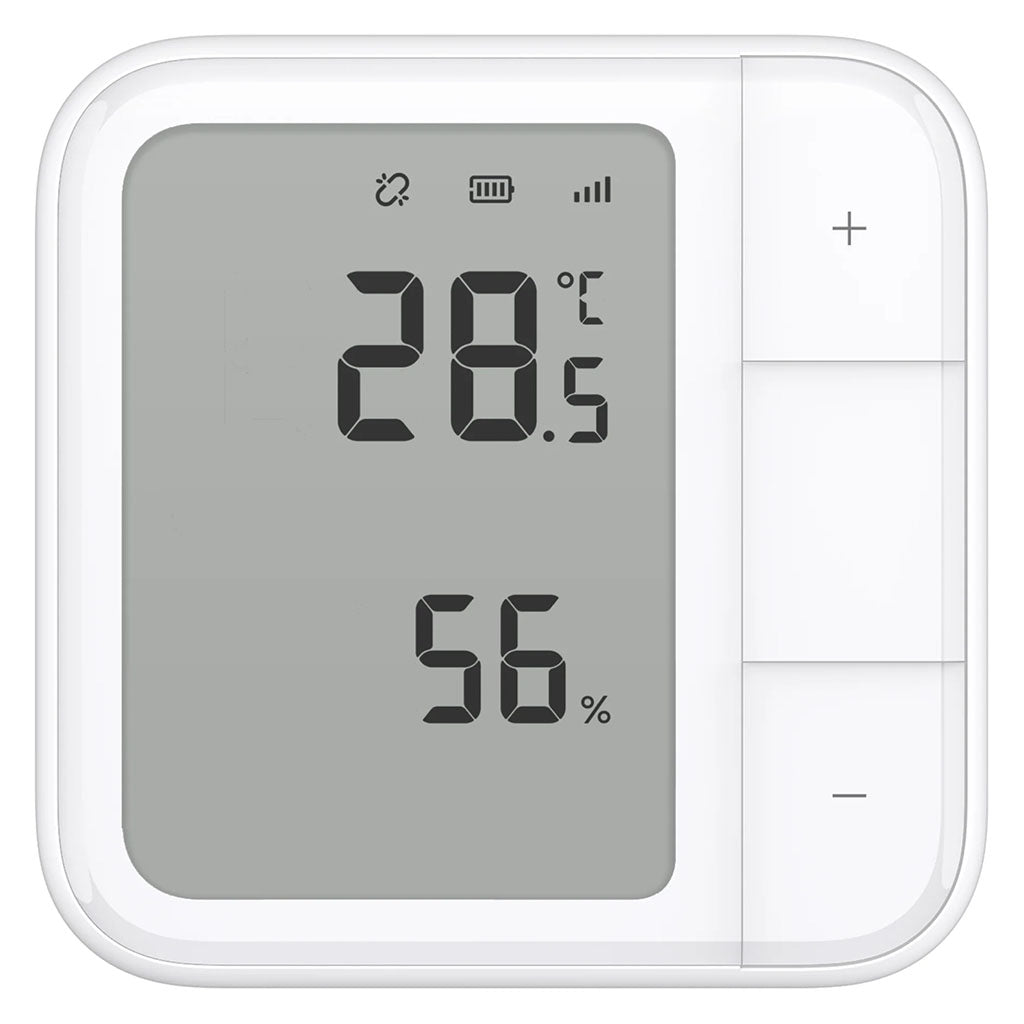

Precision Sensor with LCD Display: This device features a high-precision temperature (±0.2?) and humidity (±2%RH) sensor, along with a 3.4-inch LCD screen for real-time environmental data. It not only enhances home comfort but also ensures optimal conditions for storage and greenhouses.

External Sensor Integration: In Zigbee mode, the device can connect to an Aqara temperature and humidity sensor***** to display additional data in the secondary screen area******, allowing users to monitor conditions in different locations simultaneously. If no external sensor is connected, the secondary screen area defaults to local temperature and humidity information, helping users easily understand their environment and maintain a comfortable living space.

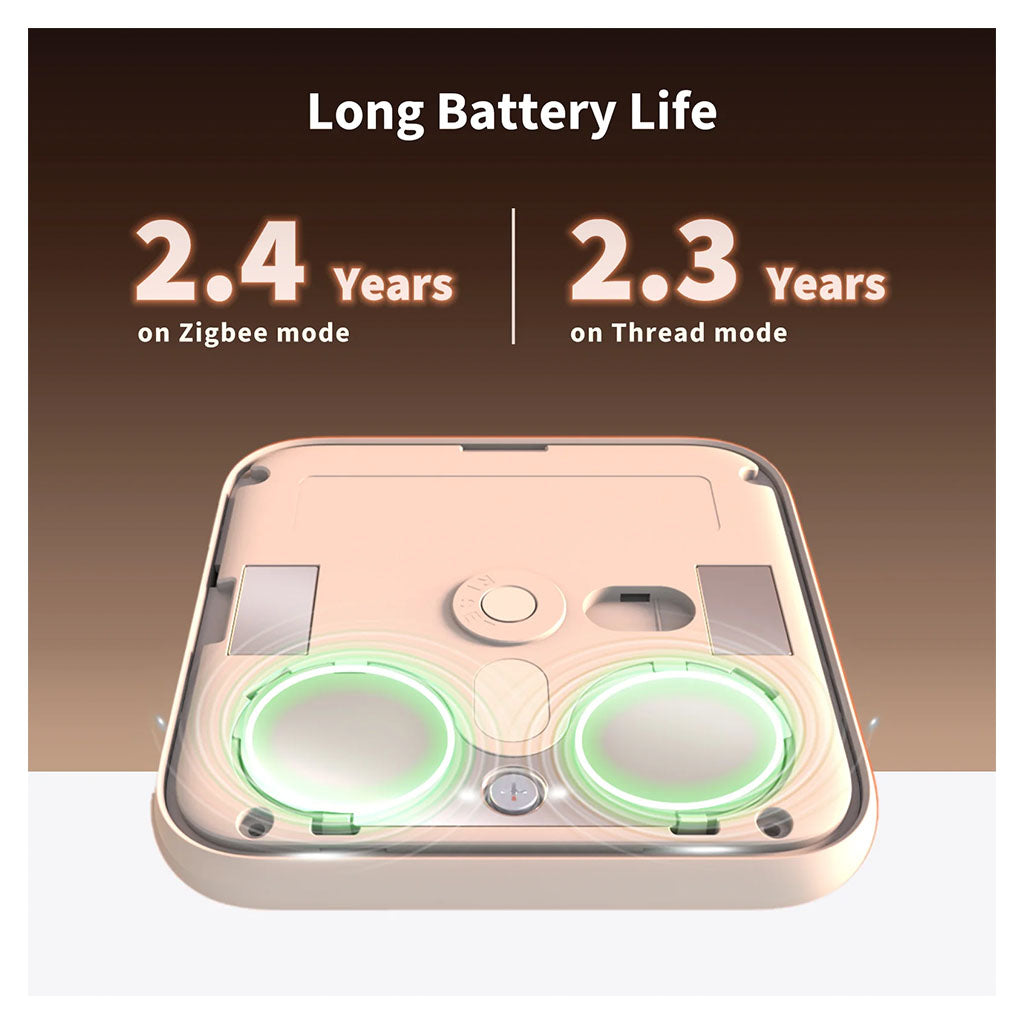

Long Battery Life with Configurable Performance: Powered by 2 x CR2450 batteries, the device delivers an impressive battery life of up to 2.4 years on Zigbee mode and 2.3 years on Thread mode******* with regular use. You have the flexibility to adjust the sensor’s sampling and reporting frequency******** to further balance performance with power consumption. This adaptability ensures reliable, long-term functionality with minimal maintenance, providing a seamless and hassle-free smart home experience.

Disclaimers:

*To use the device with a particular Matter ecosystem, a Matter Controller of this ecosystem and a Thread Border Router are required.
** Aqara Zigbee hub required
*** To switch protocols, you need to factory reset the device.
**** Previously set wireless switch configurations will be disabled when the device is paired with an Aqara thermostat.
***** Linking with an Aqara's temperature and humidity sensor is only available through the Aqara Home app on Zigbee mode.
****** Secondary area display is only available when the device is connected to an Aqara hub in Zigbee mode.
******* The battery life data is based on tests conducted by the Aqara Laboratory under default device settings. Actual battery life may vary depending on factors such as communication protocol, wireless button usage frequency, and sensor sampling/reporting intervals.
******** Only available through Aqara Home app settings on Zigbee mode.

Automation Capabilities:

1. Temperature Control

IF the current temperature rises above 29.5 °C

THEN turn on the air conditioner

Ensures a cool and comfortable environment during hot days.

(Requires: Climate Sensor W100 + Hub M3 + Air conditioner)

2. Quick Scene Activation
IF the up button of W100 is double pressed

THEN activate “Movie Night Scene”

(Requires: Climate Sensor W100 + Aqara Hub + Ceiling Light T1M + Curtain Driver E1)

Specifications:

Product Name: Climate Sensor W100

Model: TH-S04D

Product Dimensions: 86 × 86 × 13.65 mm

Operating Temperature: -20 °C ~ 60 °C

Operating Humidity: 0 ~ 98% RH, no condensation

Wireless Protocols: Thread/Zigbee, Bluetooth

Supports*: Aqara Home, Apple Home, Google Home, Amazon Alexa, SmartThings

* To integrate the device into a specific Matter ecosystem, a Matter Controller from that ecosystem is required.
