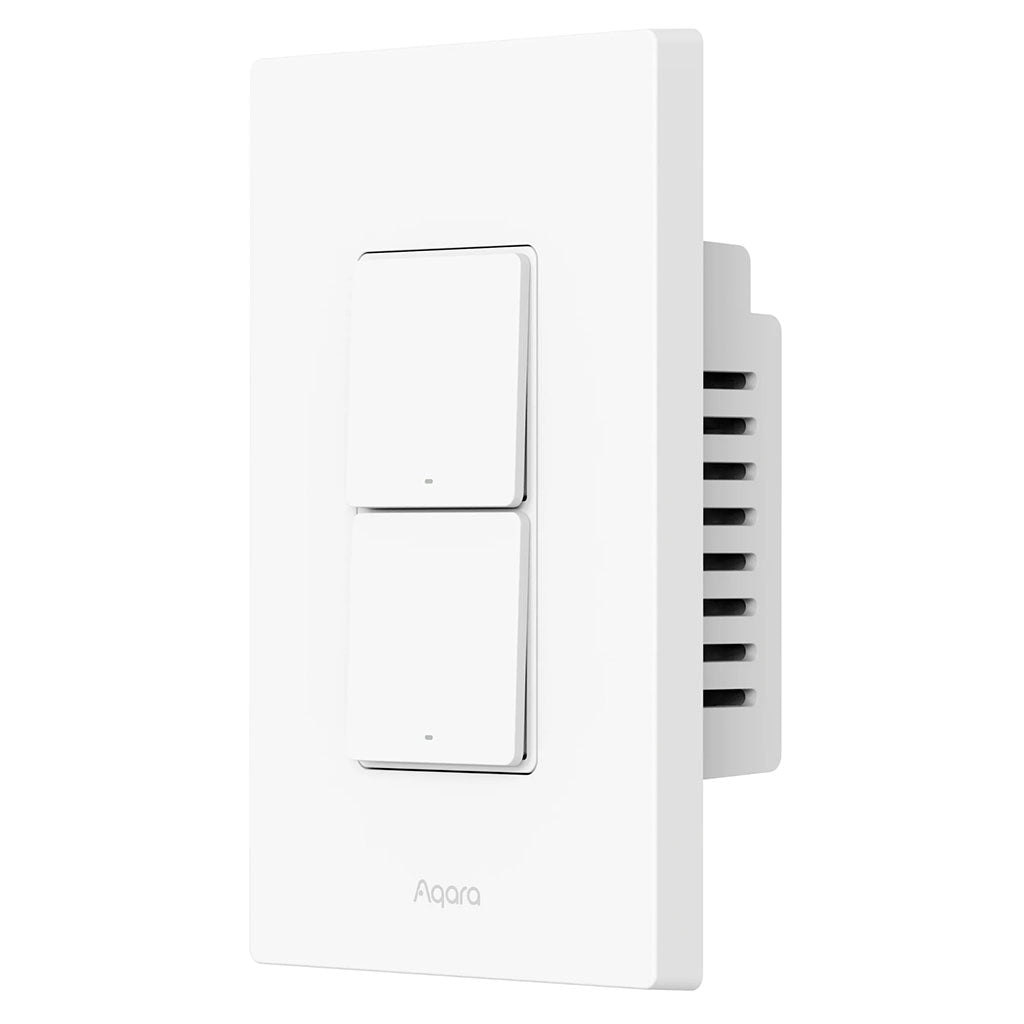

Aqara H2 Vertical Smart Wall Switch - 2 Buttons & 2 Channels
Aqara H2 Vertical Smart Wall Switch - 2 Buttons & 2 Channels
Description
• Aqara H2 Vertical Smart Wall Switch 2 Buttons & 2 Channels
• Wireless Protocols: Thread, Zigbee, Bluetooth
• Dimensions: 119 74 42 mm
• Thread: Operation Frequency
• Bluetooth Operation Frequency: 2400-2483.5Mhz
• Electrical Rating: 120-240VAC, 50/60 Hz, Max. 10 A (Resistive Load)
• WS-K03E
• Wireless Protocols: Thread, Zigbee, Bluetooth
• Dimensions: 119 74 42 mm
• Thread: Operation Frequency
• Bluetooth Operation Frequency: 2400-2483.5Mhz
• Electrical Rating: 120-240VAC, 50/60 Hz, Max. 10 A (Resistive Load)
• WS-K03E
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
$119.00
Sale price
$119.00
BANK TRANSFER (EFT)
$119.00
Sale price
$119.00
Accepted payment methods
Description
• Aqara H2 Vertical Smart Wall Switch 2 Buttons & 2 Channels
• Wireless Protocols: Thread, Zigbee, Bluetooth
• Dimensions: 119 74 42 mm
• Thread: Operation Frequency
• Bluetooth Operation Frequency: 2400-2483.5Mhz
• Electrical Rating: 120-240VAC, 50/60 Hz, Max. 10 A (Resistive Load)
• WS-K03E
View Full Details
• Wireless Protocols: Thread, Zigbee, Bluetooth
• Dimensions: 119 74 42 mm
• Thread: Operation Frequency
• Bluetooth Operation Frequency: 2400-2483.5Mhz
• Electrical Rating: 120-240VAC, 50/60 Hz, Max. 10 A (Resistive Load)
• WS-K03E
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more

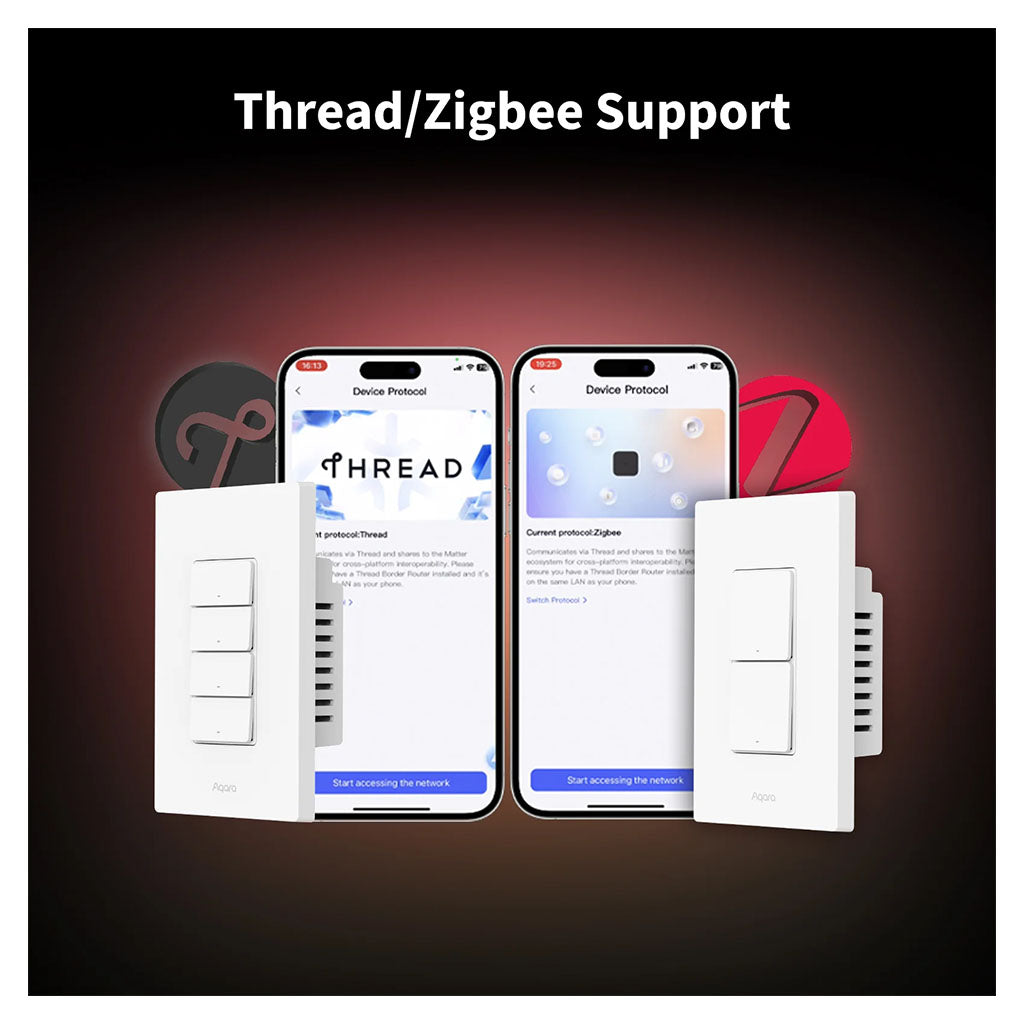

- Thread/Zigbee Support:
The device features dual protocol support. In Thread mode, no Aqara hub is required to connect to third-party Matter ecosystems [1], while Zigbee mode [2] unlocks exclusive Aqara features and ensures backward compatibility with Aqara Zigbee hubs. The flexible protocol switching [3] lets users enjoy Matter integration or Aqara's advanced functionalities based on their preference.

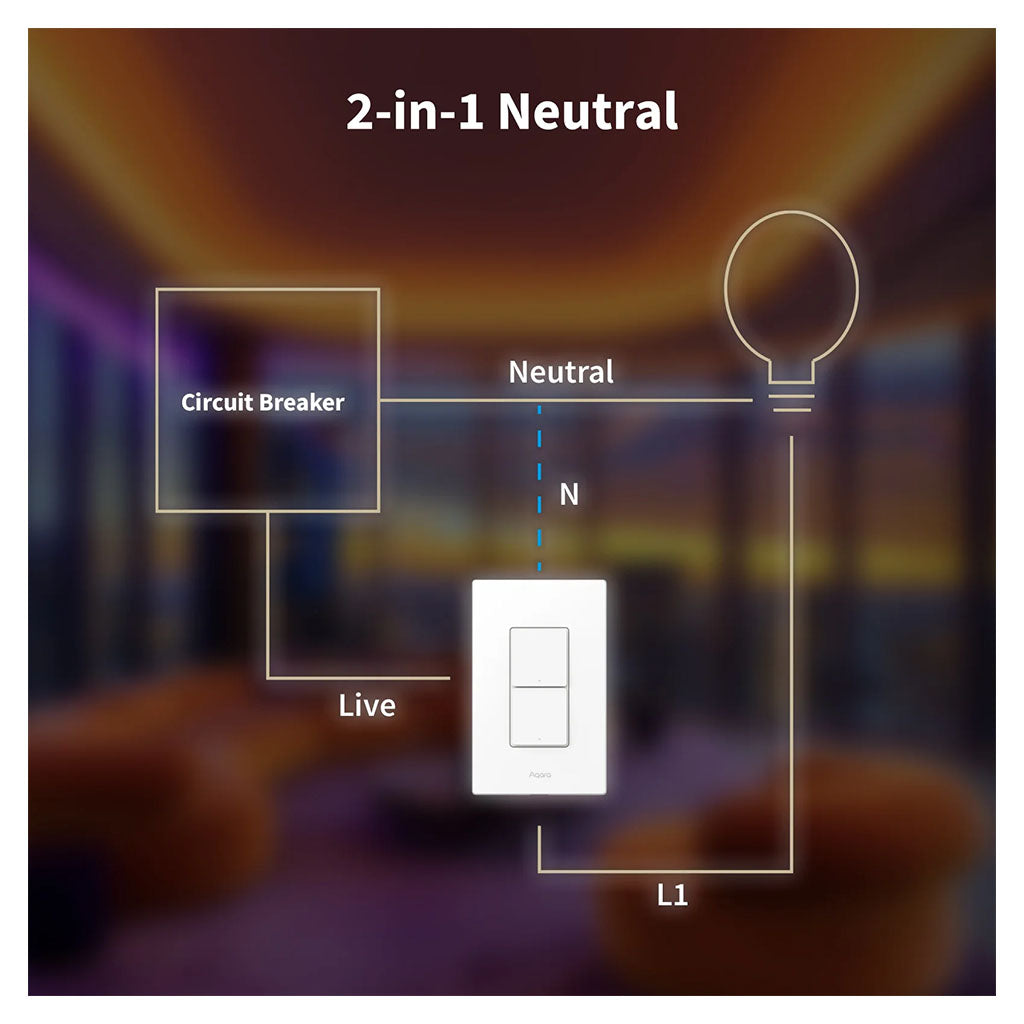

- 2-in-1 Neutral for Hassle-free Installation:
Whether your home has a neutral wire or not, this switch is designed for hassle-free installation. It supports both no-neutral and with-neutral wiring setups, eliminating any concerns about your home's wiring configuration. For homes without a neutral wire, installation is straightforward, while homes with a neutral wire benefit from advanced features like overload protection and power monitoring [4] enhancing both safety and efficiency.

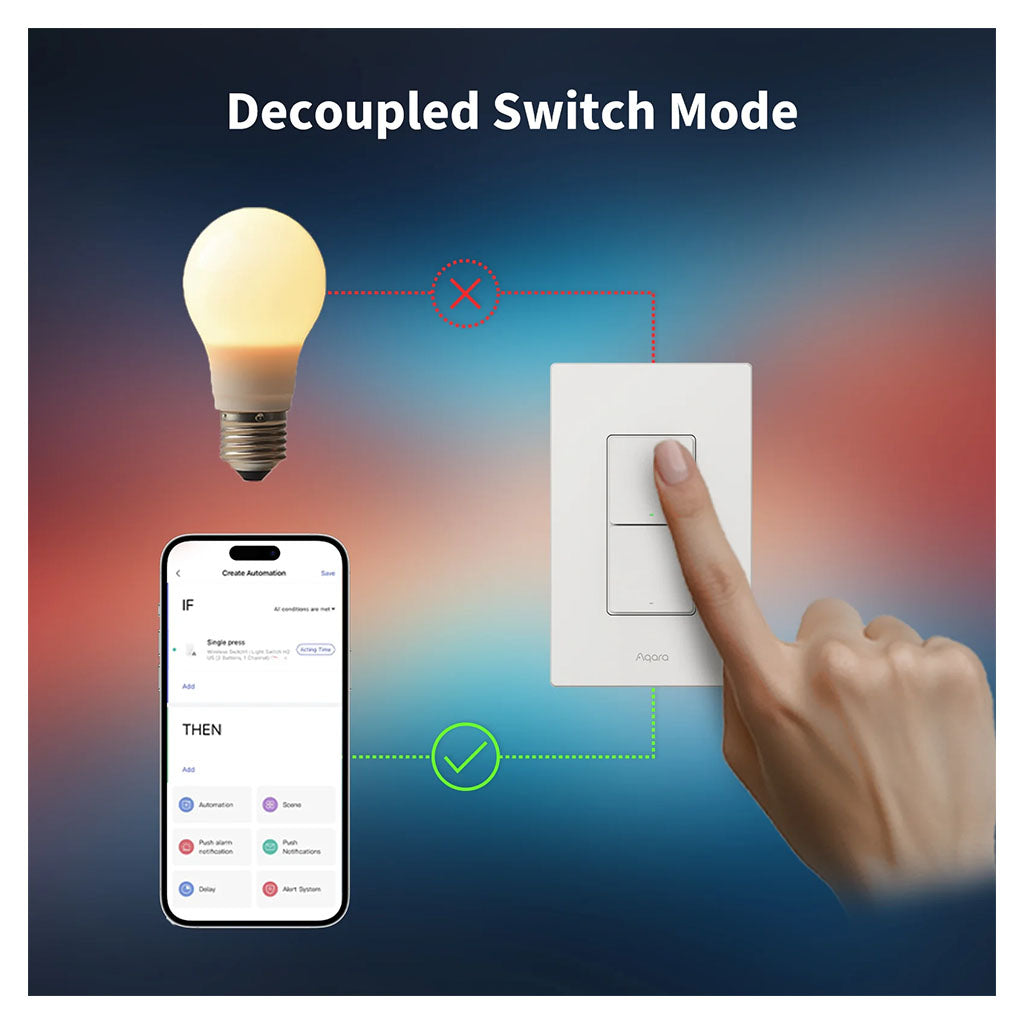

- Decoupled Switch Mode [5] [6]:
Equipped with both electrical switches and wireless switches. Electrical switches control wired loads; they can be locked to maintain a specific state, and the physical button no longer actually controls the load. Wireless switches can be configured with automation and scenes. Allowing users to set more personalised scenes or automation according to actual needs.
- Power Monitoring [7]:
The switch monitors the power consumption of connected wired devices and provides daily/weekly/monthly energy consumption reports in Aqara Home. Users can use these data reports to optimise their daily electricity usage or create energy-saving plans and automations to reduce consumption and increase sustainable energy use.
- MARS Tech:
In the Smart Load mode [8], the electrical button will be decoupled from the load circuit and bound to an Aqara smart light for on/off control as a wireless switch. The load to the Aqara smart light will remain always-on. The on/off status of the smart wall switch H2 LED indicator will be in sync with that of the Aqara light.
Disclaimers:
[1] To use the device with a particular Matter ecosystem, a Matter Controller of this ecosystem and a Thread Border Router are required.
[2] Aqara Zigbee hub required.
[3] To switch protocols, you need to factory reset the device.
[4] The advanced features might be unavailable in some or all third-party Matter ecosystems, but is indeed supported by the device. To guarantee its functionality, we suggest using the Zigbee mode and connecting the device to an Aqara hub.
[5] Please note: the feature might be unavailable in some or all third-party Matter ecosystems, but is already supported by the device. To guarantee this functionality, we suggest using the Zigbee mode and connecting the device to an Aqara hub.
[6] The applicability of Decoupled Switch Mode for the buttons varies by SKU.

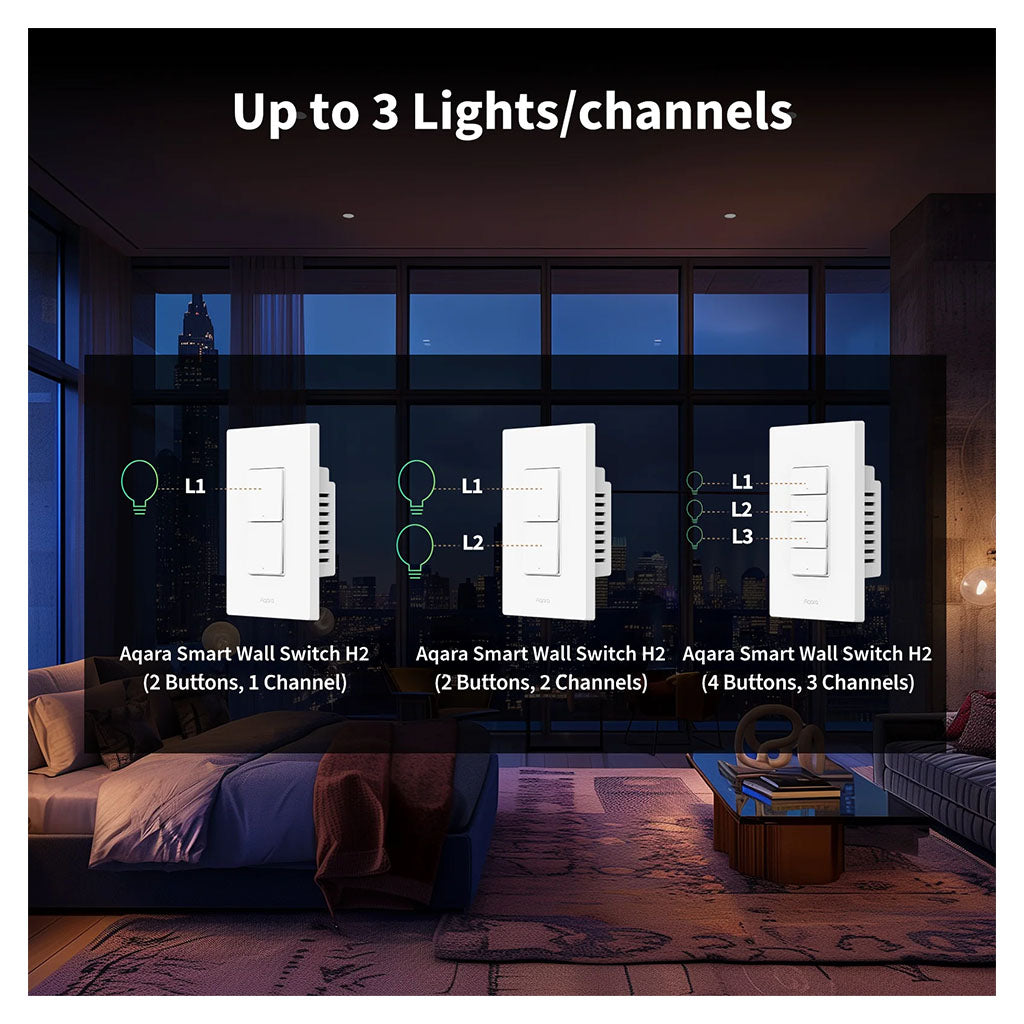

Rule: one channel corresponds to one button with this functionality:
(2 Buttons, 1 Channel): Top button only
(2 Buttons, 2 Channels): Both buttons (top and bottom)
(4 Buttons, 3 Channels): Top three buttons
[7] With-neutral wiring is required for power monitoring. This feature might be unavailable in some third-party Matter ecosystems, but is already supported by the device. To guarantee its functionality, we suggest using the Zigbee mode and connecting the device to an Aqara hub.
[8] The Smart Load mode is only available when the smart wall switch H2 is wired to a neutral wire.
Automation:
|
1 |
Heading |
Automatic Lighting in Hallway or Stairs |
|
|
IF THEN |
IF presence is detected in the hallway or stairs
THEN Turn on Aqara Smart Wall Switch H2 (Vertical)
IF absence is detected over 3 minutes in the hallway or stairs THEN Turn off Aqara Smart Wall Switch H2 (Vertical) |
|
|
Description |
When you walk through a hallway or staircase, the presence sensor automatically detects your presence and turns on the hallway or staircase lights, so you don't have to press the switch when you have both hands full. When the presence sensor detects absence for more than a set time, the lights will automatically turn off to avoid leaving the lights on when no one is there. |
|
|
Devices |
Aqara Smart Wall Switch H2 (Vertical) + Presence Sensor FP1E + Hub M3 |
|
2 |
Heading |
Fake Occupancy in Vacation |
|
|
IF THEN |
WHEN Every day at 19:00
IF Nobody is at home THEN Turn on the living room light
|
|
|
Description |
In case you are away, the Fake Occupancy automation will activate every evening at 19:00 to create the illusion that your home is occupied. The fake Occupancy will reduce the stress of possible illegal breaking and give you more peace of mind. |
|
|
Devices |
Aqara Smart Wall Switch H2 (Vertical) + Presence Sensor + Camera E1 + Aqara Hub |
Specifications:
| Product Name | Aqara Smart Wall Switch H2 (Vertical, 2 Buttons, 2 Channel) | ||
| Model | WS-K03E | ||
|
Wireless Protocols |
Thread, Zigbee, Bluetooth |
||
|
Dimensions |
119 × 74 × 42 mm |
||
|
Electrical Rating |
120-240VAC, 50/60 Hz, Max. 10 A (Resistive Load), μ |
||
|
Minimum Power |
5 W (No Neutral), Unlimited (With Neutral), general purpose |
||
|
Thread Operation Frequency |
2400-2483.5Mhz |
||
|
Thread Maximum Output Power |
≤ 13 dBm |
||
|
Bluetooth Operation Frequency |
2400-2483.5Mhz |
||
|
Bluetooth Maximum Output Power |
≤ 13 dBm |
||
|
Operating Temperature |
0 °C ~ 40 °C |
||
|
Operating Humidity |
0 ~ 95% RH, no condensation |
||
