SilverStone RM600 6U Rackmount Chassis with Dual PSU Compatibility
SKU# AC76233, Model# SST-RM600

SilverStone RM600 6U Rackmount Chassis with Dual PSU Compatibility - Form Factor: 6U - Material: Steel - Motherboard Support: **SSI-EEB, SSI-CEB, E-ATX, ATX, Micro-ATX, Mini-ITX - Internal Drive Bays: 6x 3.5", 4x 2.5" - Expansion Slots: 8 - Fan Support: Rear: 2x 80mm (2 included), Front: 3x 120mm, Left & Right Sides: 3x 120mm, 2x 140mm, Internal: 3x 80mm - Primary PSU slot: PS2 (ATX) / Mini Redundant / 2U Redundant - Secondary PSU slot: PS2 (ATX) - Front I/O: 1x USB-C, 2x USB-A - SST-RM600

Manufacturer Warranty: 12 Months Limited Warranty

RM600

6U Rackmount Chassis featuring Dual PSU Compatibility and Triple 360mm Radiator Support. Additional features include upright or horizontal placement flexibility. 8 PCI expansion slots.

KEY FEATURES

Transcending Conventional Cooling Standards—Three sets of 3 x 120mm fan mounts positioned at the front and on both sides of the chassis, each facilitating the installation of a single 360mm radiator, allowing for a total of three 360mm radiators. This design establishes a unique niche in the market and surpasses traditional rackmount cooling standards.

Enhanced Power Options—A feat incorporated in many SilverStone chassis, the support for dual power supplies is also a standout feature in the RM600. This capability proves highly beneficial, offering enhanced reliability, power redundancy, and flexibility to seamlessly manage demanding power requirements systems.
Primary PSU slot: PS2 (ATX) / Mini Redundant / 2U Redundant
Secondary PSU slot: PS2 (ATX)

Exceptional Storage Capabilities—The RM600 has multiple tool-less hard drive trays to accommodate various storage drive form factors. In the event of a hard drive malfunction, the tool-less capability allows for swift and efficient replacement, ensuring minimal downtime and uninterrupted data accessibility.

Versatile Chassis for Diverse Environments

This dual-purpose chassis seamlessly accommodates both industrial rackmount applications and high-end home systems. Its flexible design allows for placement in either vertical or horizontal orientations, catering to diverse usage preferences.

System Layout

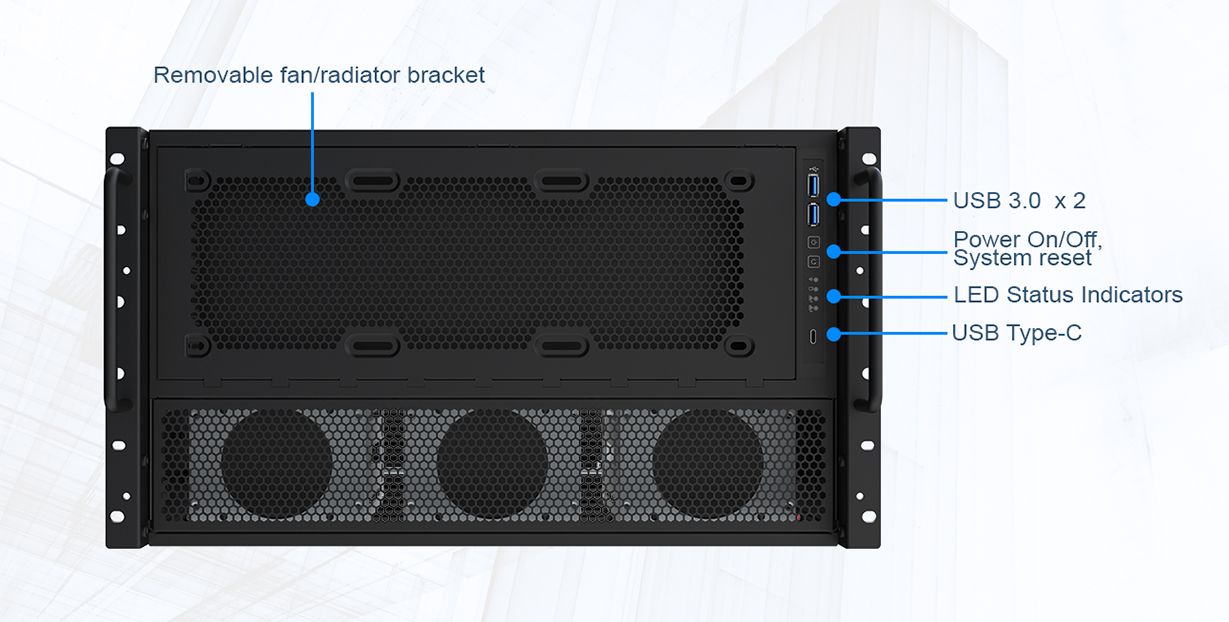

Panel Layout

Superior heat dissipation performance

Take advantage of the high adaptation and flexibility for your dynamic needs!

Thermal Solution

Top

Bottom:

Capacity - Bottom:

Footnotes & Disclaimers:

* A USB3 Type-C internal cable with a total length of 800mm is provided. When connecting external storage devices, it is advisable to avoid using overly lengthy cables, as excessive cable length can potentially decrease transfer speed.

** The combined length of 5.25” devices and the motherboard equals 481mm. Please refer to the manual for a detailed illustration of various motherboard form factor tolerances when 5.25” devices are installed within this constraint.
