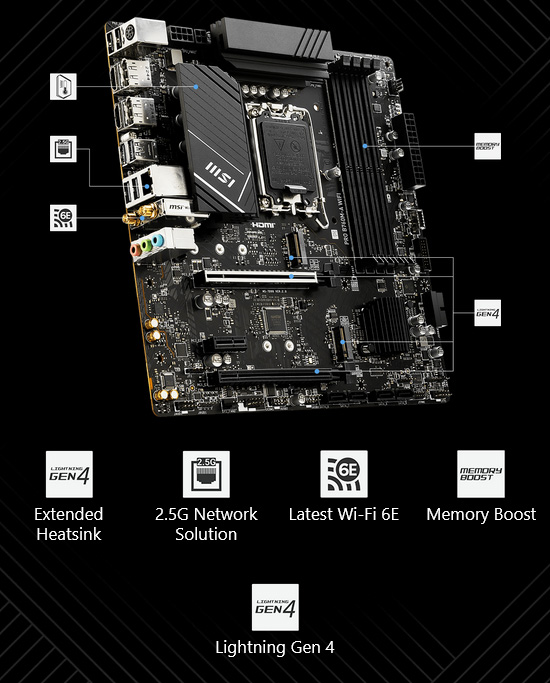

MSI PRO B760M-A WIFI DDR5 Intel LGA 1700 M-ATX Motherboard
SKU# AC73962, Model# PRO B760M-A WIFI

MSI PRO B760M-A WIFI DDR5 LGA 1700 M-ATX Motherboard - Chipset: INTEL B760 - Memory Support: 4x DDR5 Slots (Max. 256GB, Up to 6800+ OC) - Expansion Slot: 2x PCIe 4.0, 1x PCIe 3.0 - Storage Support: 2x M.2, 4x SATA 6G - Network: WiFi 6E + Bluetooth 5.3, Realtek RTL8125BG 2.5G LAN - Back Panel Ports: Keyboard/Mouse, 2x DisplayPort, 2x USB-A 3.2 Gen1, 2.5G LAN, Wi-Fi/Bluetooth, 2x USB-A 2.0, 2xHDMI, 2x USB-A 3.2 Gen2, Audio Connectors - PRO B760M-A WIFI

Manufacturer Warranty: 3 Years Limited Warranty

Manufacturer Contact Info: http://au.msi.com, 1300 222 688

· Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket

· Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)

· Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost

· Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high performance system and non-stop gaming experience

· High Quality PCB: 6-layer PCB made by 2oz thickened copper

PRO B760M-A WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.



---



EXCLUSIVE FEATURES



---



HARDWARE

Cooling Overview



1 - Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

2 - Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

3 - 7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

4 - Chipset Heatsink

The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.



---

Fully Fan Control

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.



---



OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.



---



PERFORMANCE

Lightning Gen 4 PCI-e with Steel Armor



LIGHTNING GEN 4 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.



---



FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.



---



USB FRONT TYPE-C

MSI PRO motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.



---

Connectivity

Audio boost



---
